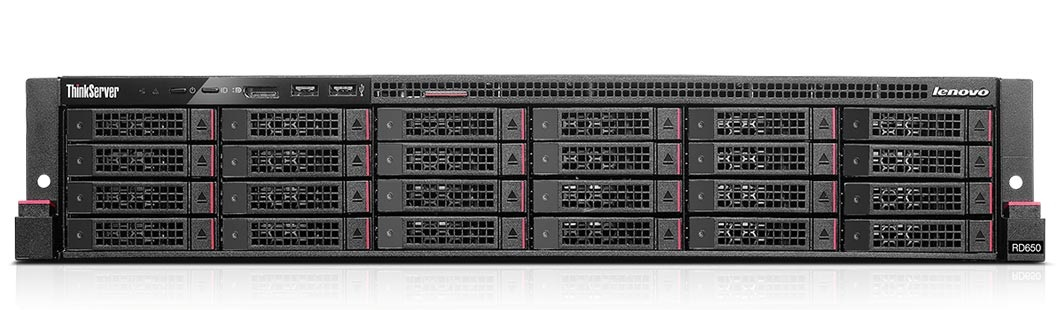

Lenovo ThinkServer RD650 server

0 GB Rack (2U) Intel Xeon E5 v3 E5-2620V3 2.4 GHz 8 GB DDR4-SDRAM 750 W

Model RD650Part no. 70D0001KEAEAN 888965169143

129 specifications

Overview

Brand: Lenovo
Category: Server
Model: RD650
Part numbers: 70D0001KEA, 70D2001FEA, 70D2001HEA, 70D2001PEA, 70D40016EA, 70D40018EA +34 more
EAN / UPC: 888965169143, 888965168924, 8889651689244, 888965168887 +48 more
Also known as: Lenovo ThinkServer RD650 server 0 GB Rack (2U) Intel Xeon E5 v3 E5-2620V3 2.4 GHz 8 GB DDR4-SDRAM 750 W

129 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-2620V3
Processor frequency	2.4 GHz
Processor boost frequency	3.2 GHz
Processor cores	6
Processor cache	15 MB
Motherboard chipset	Intel® C612
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	59 GB/s
Memory clock speeds supported by processor	1600,1866 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR207
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	12
Scalability	2S
Stepping	R2
Supported instruction sets	AVX
Tcase	72.6 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Maximum storage capacity	30.8 TB
Total storage capacity	0 GB
Number of HDDs installed	0
Number of HDDs supported	26
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Hot-swap	Yes
Optical drive type	No
Supported storage drive interfaces	SAS, Serial ATA III

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Not available
Maximum graphics card memory	16 MB

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	0

Specification	Value
PCI Express x8 (Gen 3.x) slots	8
PCI Express slots version	3.0

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2 (Hyper-V) Microsoft Windows Server 2012 (Hyper-V) Microsoft Windows Server 2008 R2 SP1 (Hyper-V) SUSE Linux Enterprise Server Red Hat Enterprise Linux Server VMware vSphere ESXi Citrix XenServer

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	83352

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W
Number of redundant power supplies supported	2
Number of redundant power supplies installed	1

Specification	Value
Operating temperature (T-T)	10 - 45 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	8 - 90%

Specification	Value
Graphics card	AST2400
Graphics card family	Aspeed
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
