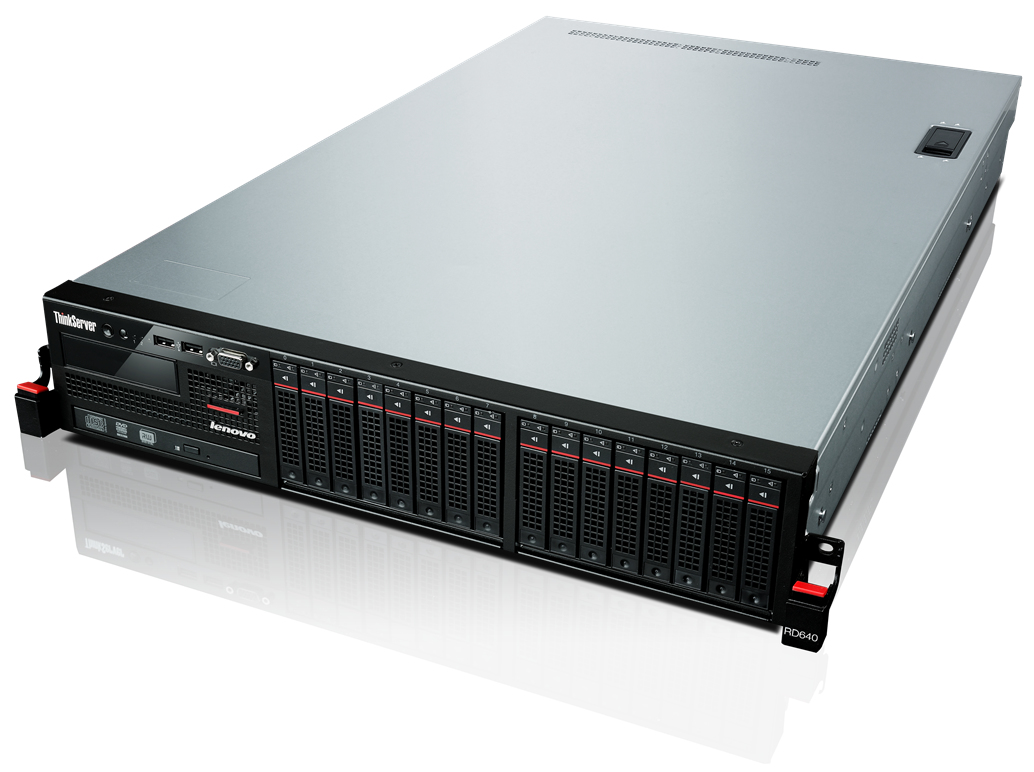

Lenovo ThinkServer RD640 server

0 GB Rack (2U) Intel® Xeon® E5 Family E5-2640 2.5 GHz 16 GB DDR3-SDRAM 800 W

Model RD640Part no. 70AW000CEUEAN 888228259857

110 specifications

Overview

Brand: Lenovo
Category: Server
Model: RD640
Part numbers: 70AW000CEU, 70B0000AGE, 70B0000EGE, 70AV0000UX, 70AV0001UX, 70AY0001US +34 more
EAN / UPC: 888228259857, 888228259611, 888228259598, 888228259093 +39 more
Also known as: Lenovo ThinkServer RD640 server 0 GB Rack (2U) Intel® Xeon® E5 Family E5-2640 2.5 GHz 16 GB DDR3-SDRAM 800 W

110 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2640
Processor frequency	2.5 GHz
Processor boost frequency	3 GHz
Processor cores	6
Processor cache	15 MB
Motherboard chipset	Intel® C602J
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	30
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	32 nm
Idle States	Yes
Maximum internal memory supported by processor	750 GB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	42.6 GB/s
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Processor codename	Sandy Bridge EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45.0 mm
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor threads	12
Scalability	2S
Stepping	C2
Supported instruction sets	AVX
Tcase	73 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Maximum storage capacity	16 TB
Total storage capacity	0 GB
Number of HDDs installed	0
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD size	2.5"
Number of HDDs supported	16
RAID support	Yes
RAID levels	1, 5, 6, 10, 50, 60

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Specification	Value
Chassis type	Rack (2U)

Specification	Value
BIOS type	UEFI
Trusted Platform Module (TPM)	Yes

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2008 Microsoft Windows Server 2008 R2 Microsoft Windows Small Business Server 2011 Novel SUSE Linux Enterprise Server Red Hat Enterprise Linux Server VMware ESXi

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64591

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	800 W

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3048 m

Specification	Value
Sustainability certificates	ENERGY STAR
