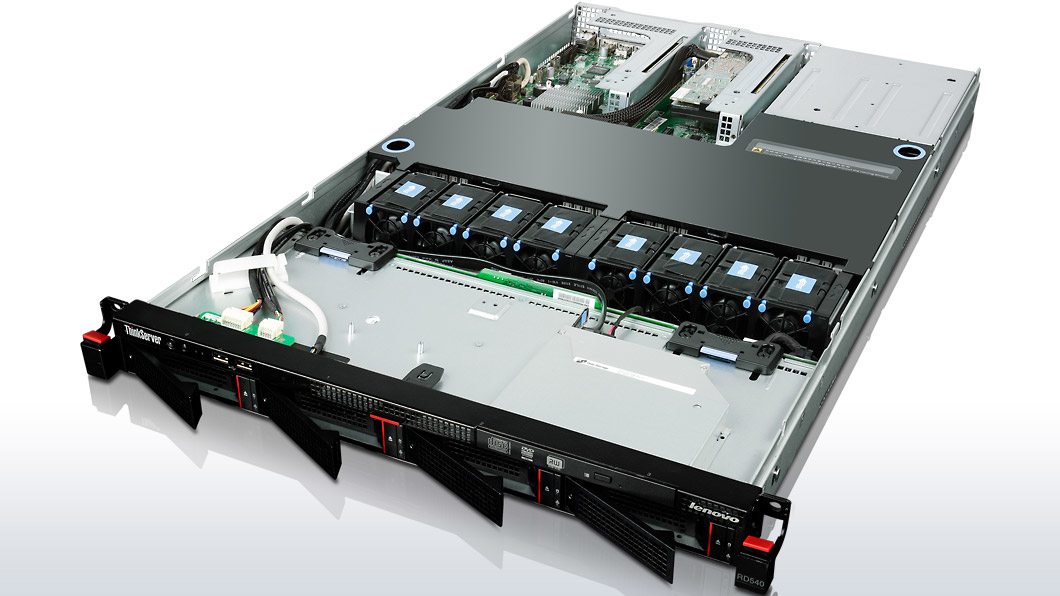

Lenovo ThinkServer RD540 server
0 GB Rack (1U) Intel® Xeon® E5 Family E5-2620 2 GHz 16 GB DDR3-SDRAM 800 W
Model RD540Part no. 70AU000PGEEAN 888228258621
100 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory16 GB
- Storage0 GB
- OSNo
- Processor manufacturerIntel
- Maximum storage capacity16 TB
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 16 GB
- Storage
- 0 GB
- OS
- No
- Processor manufacturer
- Intel
- Maximum storage capacity
- 16 TB
- Brand
- Lenovo
- Category
- Server
- Model
- RD540
- Part numbers
- 70AU000PGE, 70AU000HGE, 70AU000KGE, 70AU000QGE, 70AR0000UX, 70AR0001UX +34 more
- EAN / UPC
- 888228258621, 888228258492, 888228258782, 888228258362 +45 more
- Also known as
- Lenovo ThinkServer RD540 server 0 GB Rack (1U) Intel® Xeon® E5 Family E5-2620 2 GHz 16 GB DDR3-SDRAM 800 W
Specifications
100 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2620 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.5 GHz |
| Processor cores | 6 |
| Processor cache | 15 MB |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 7.2 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 25 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 750 GB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Processor codename | Sandy Bridge EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45.0 mm |
| Processor series | Intel Xeon E5-2600 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 12 |
| Scalability | 2S |
| Stepping | C2 |
| Supported instruction sets | AVX |
| Tcase | 77.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 20 |
| Maximum internal memory | 320 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 16 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2012 Microsoft Windows Server 2008 Microsoft Windows Server 2008 R2 Microsoft Windows Small Business Server 2011 Novel SUSE Linux Enterprise Server Red Hat Enterprise Linux Server VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64594 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435.8 mm |
| Depth | 718.8 mm |
| Height | 43.4 mm |
