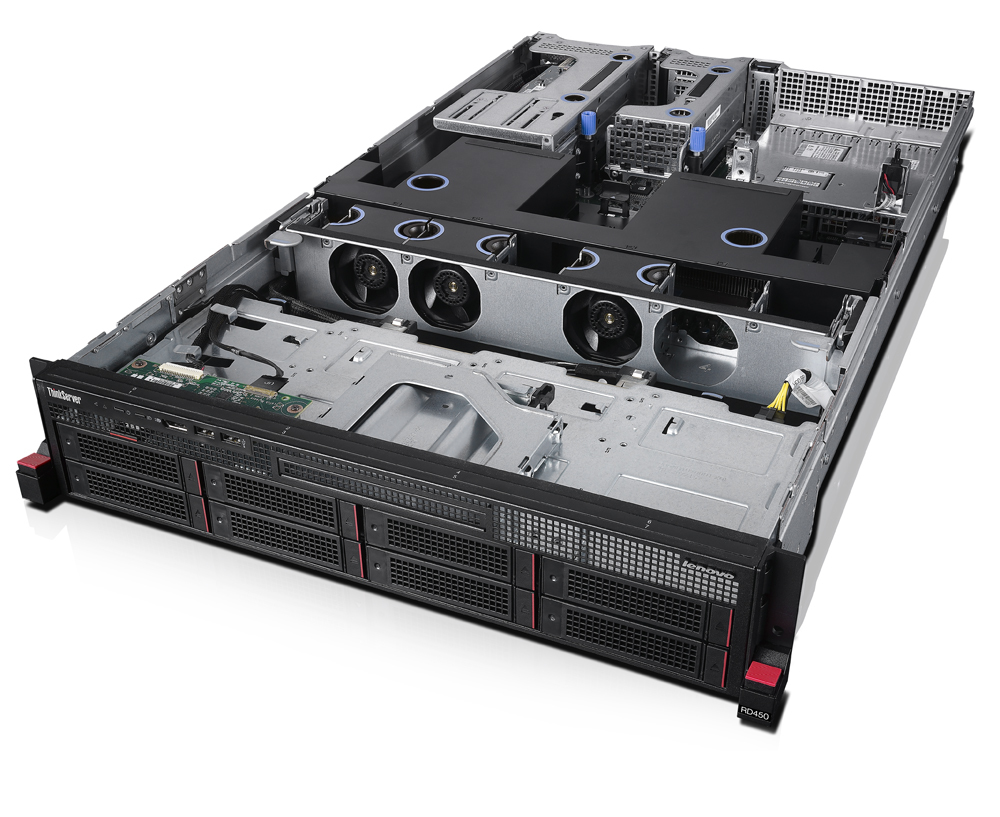

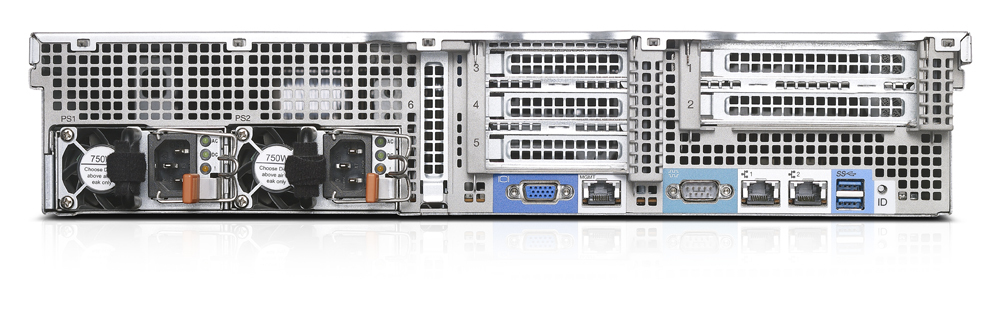

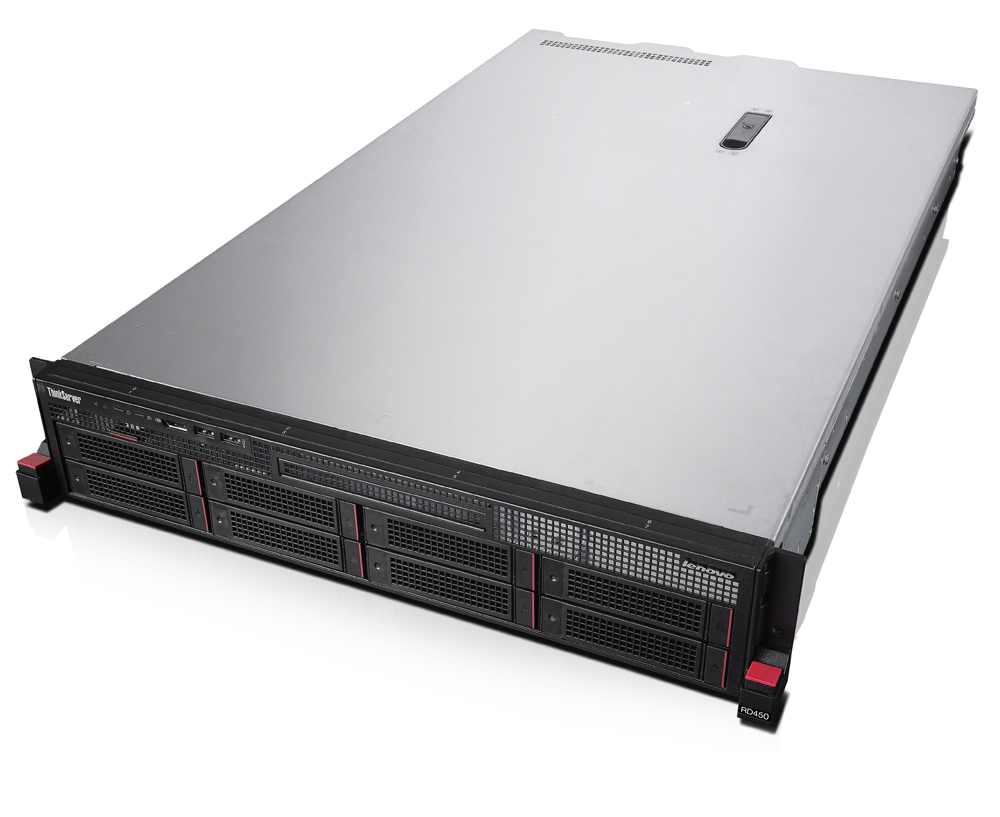

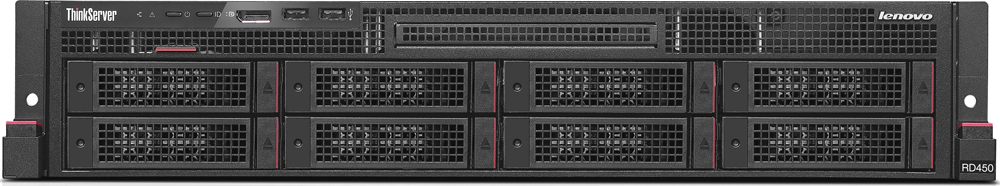

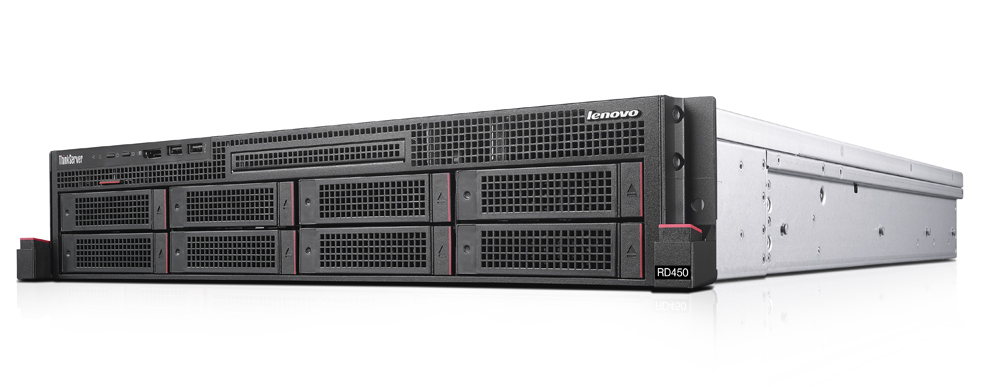

Lenovo ThinkServer RD450 server

0 GB Rack (2U) Intel Xeon E5 v3 E5-2609V3 1.9 GHz 4 GB DDR4-SDRAM 550 W

Model RD450Part no. 70DC000MEAEAN 888965756862

133 specifications

Overview

Brand: Lenovo
Category: Server
Model: RD450
Part numbers: 70DC000MEA, 70DC0000EA, 70DC000GEA, 70DA0003SP, 70DA0003EA, 70DC000YUX +34 more
EAN / UPC: 888965756862, 888965307415, 888965756701, 888965756190 +54 more
Also known as: Lenovo ThinkServer RD450 server 0 GB Rack (2U) Intel Xeon E5 v3 E5-2609V3 1.9 GHz 4 GB DDR4-SDRAM 550 W

133 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-2609V3
Processor frequency	1.9 GHz
Processor cores	6
Processor cache	15 MB
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	Smart Cache
System bus rate	6.4 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	51 GB/s
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	6
Scalability	2S
Stepping	M1
Supported instruction sets	AVX 2.0
Tcase	70.9 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
Intelligent Platform Management Interface (IPMI) support	Yes

Specification	Value
Maximum storage capacity	32 TB
Total storage capacity	0 GB
Number of HDDs installed	0
HDD interface	Serial ATA III
HDD size	3.5"
Number of HDDs supported	8
Supported HDD sizes	3.5"
RAID support	Yes
RAID levels	0, 1, 5, 10
Hot-swap	Yes
Optical drive type	DVD±RW
Supported storage drive interfaces	Serial ATA III

Specification	Value
On-board graphics card	Yes
Maximum graphics card memory	16 MB

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
PCI Express x8 (Gen 3.x) slots	7
PCI Express slots version	3.0

Specification	Value
Chassis type	Rack (2U)
Rack mounting	Yes

Specification	Value
BIOS type	UEFI
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2, 2012, 2008 R2 Windows Small Business Server 2011 Windows Server Storage 2012 R2/2012 Windows Multipoint Server 2012 Red Hat Enterprise Linux 7.0/6.5 SUSE Linux Enterprise Server 11 SP3 VMware vSphere (ESXi) 5.1 P5, 5.5 U2
Bundled software	ThinkServer System Manager Premium

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	81897

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	550 W
Number of redundant power supplies supported	2
Number of redundant power supplies installed	1
Number of main power supplies	0

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3048 m

Specification	Value
Graphics card	AST2400
Graphics card family	Aspeed
Integrated BMC with IPMI	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
