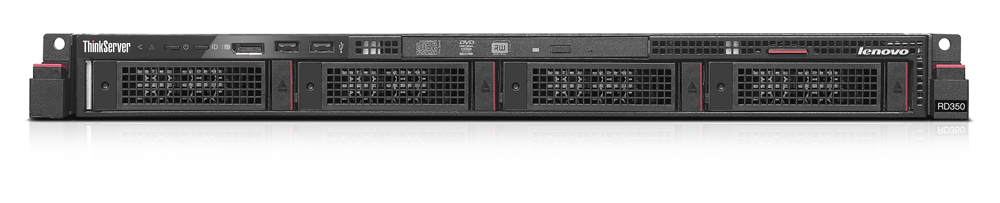

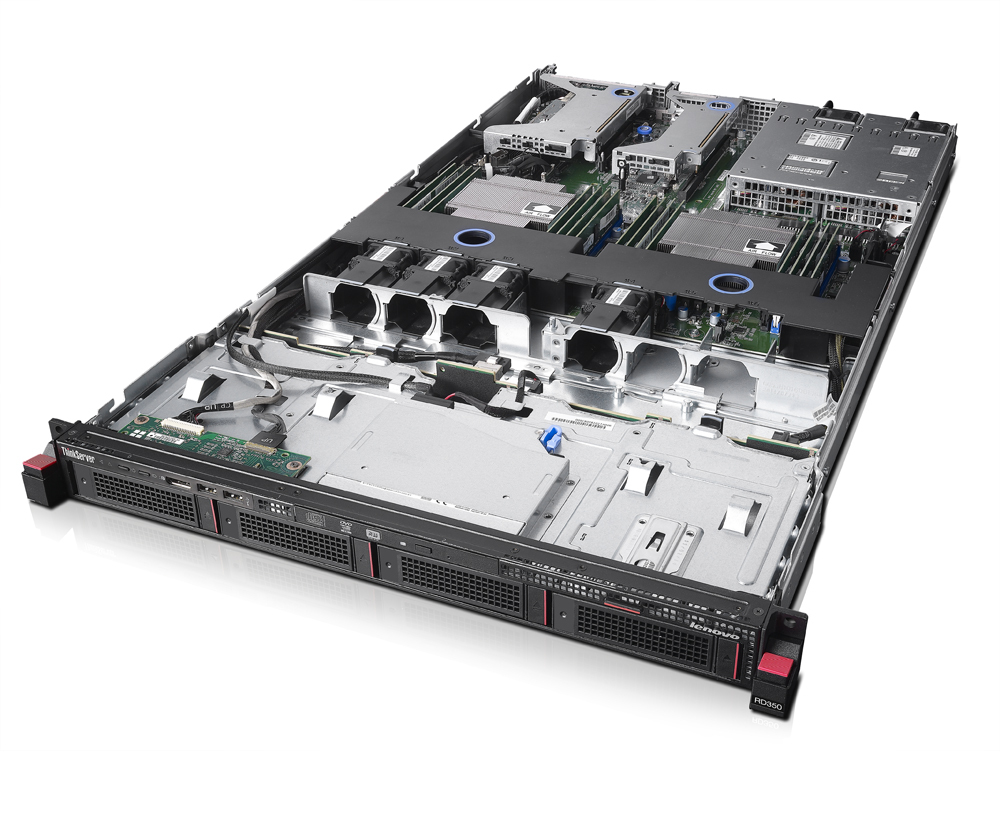

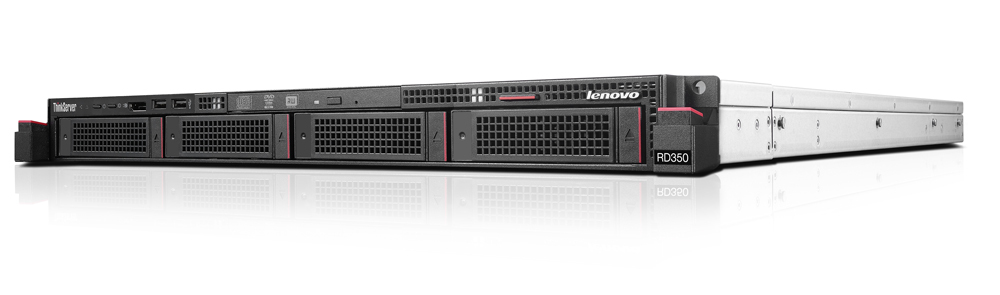

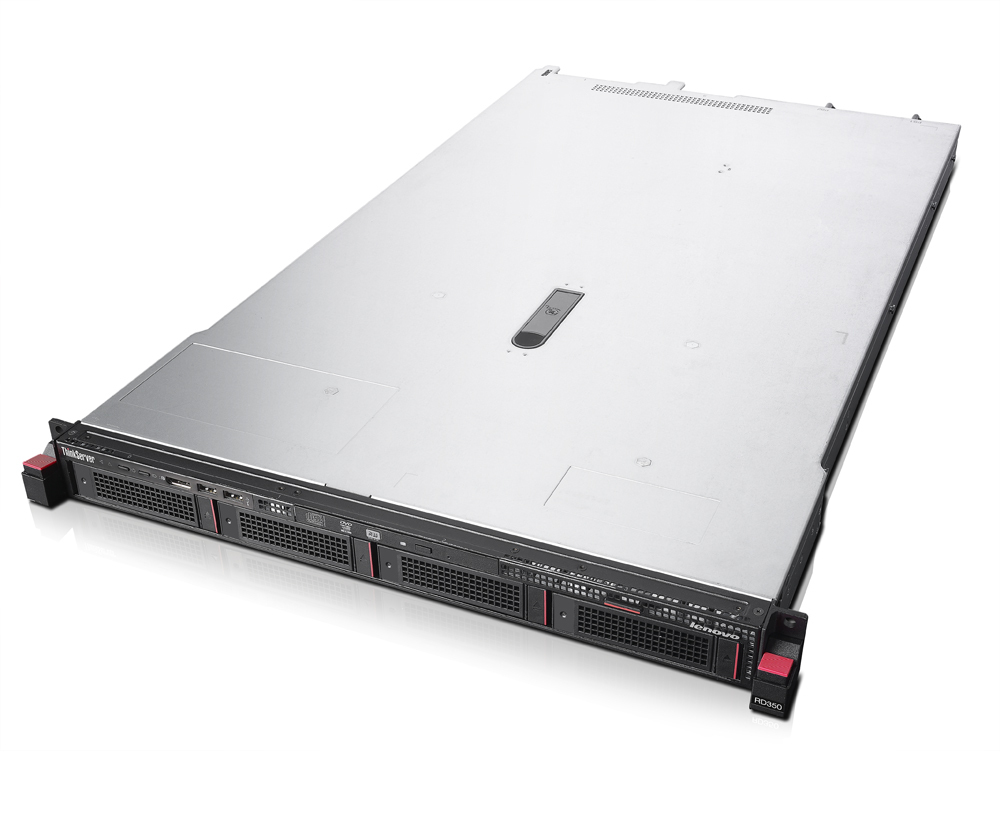

Lenovo ThinkServer RD350 server
0 GB Rack (1U) Intel Xeon E5 v3 E5-2609V3 1.9 GHz 4 GB DDR4-SDRAM 450 W
Model RD350Part no. 70D6000DEAEAN 889233402283
123 specifications
- ProcessorIntel Xeon E5 v3
- Memory4 GB
- Storage0 GB
- Weight13 kg
- Processor manufacturerIntel
- Maximum storage capacity16 TB
Overview
- Processor
- Intel Xeon E5 v3
- Memory
- 4 GB
- Storage
- 0 GB
- Weight
- 13 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 16 TB
- Brand
- Lenovo
- Category
- Server
- Model
- RD350
- Part numbers
- 70D6000DEA, 70D60000EA, 70D8000BEA, 70D80003SP, 70D80003EA, 70D6000XUX +34 more
- EAN / UPC
- 889233402283, 888965309983, 888965750518, 888965750402 +50 more
- Also known as
- Lenovo ThinkServer RD350 server 0 GB Rack (1U) Intel Xeon E5 v3 E5-2609V3 1.9 GHz 4 GB DDR4-SDRAM 450 W
Specifications
123 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2609V3 |
| Processor frequency | 1.9 GHz |
| Processor cores | 6 |
| Processor cache | 15 MB |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 51 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45 mm |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 6 |
| Scalability | 2S |
| Stepping | M1 |
| Supported instruction sets | AVX 2.0 |
| Tcase | 70.9 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 16 |
| Maximum internal memory | 512 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 16 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-swap | Yes |
| Optical drive type | DVD±RW |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 R2 SUSE Linux Enterprise Server Red Hat Enterprise Linux Server VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 81897 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 781.5 mm |
| Height | 43 mm |
| Weight | 13 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | AST2400 |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
