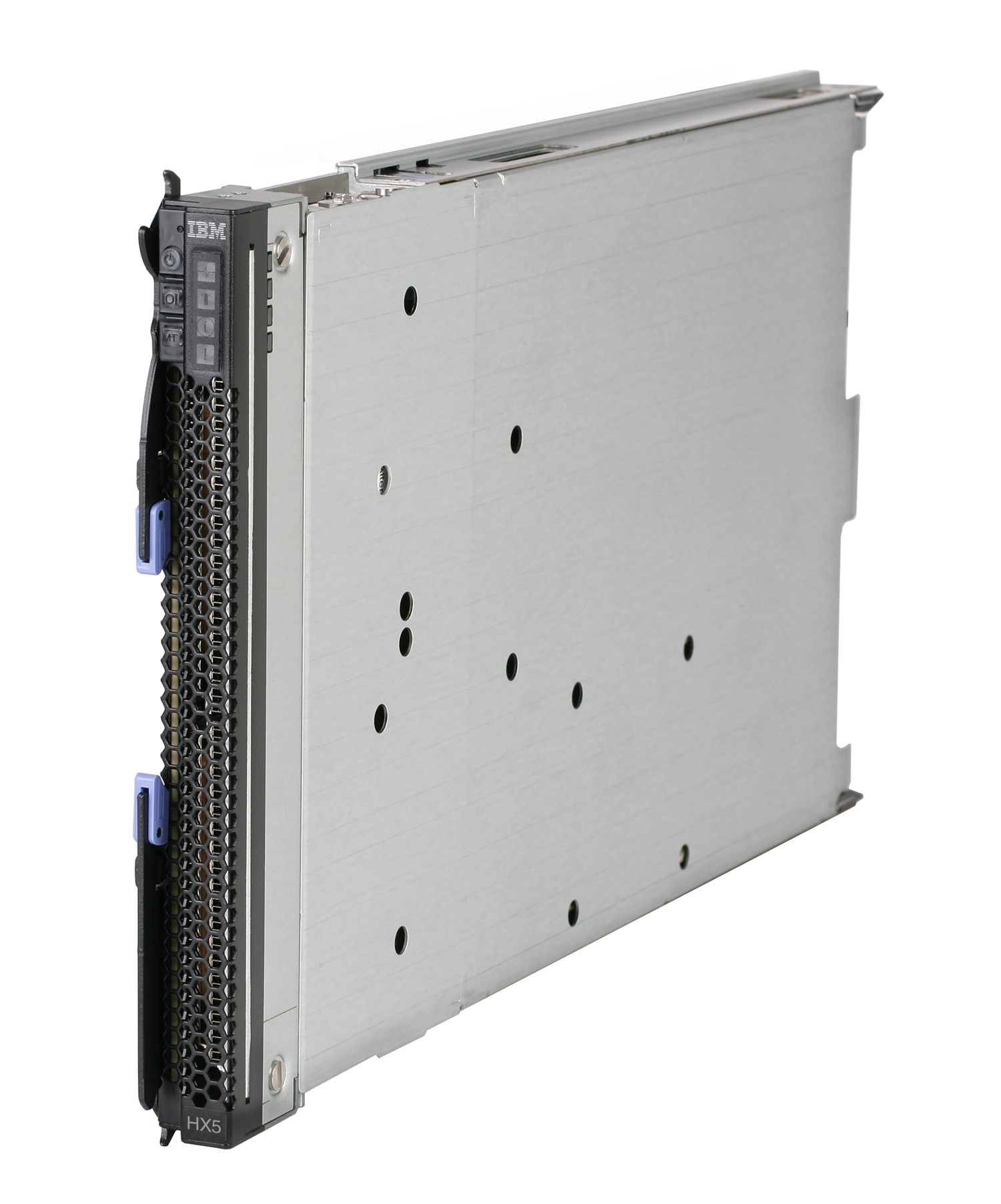

Lenovo BladeCenter HX5 server
0 GB Blade Intel® Xeon® 7000 Sequence X7560 2.27 GHz 8 GB DDR3-SDRAM 130 W
Model HX5Part no. 7873A1GEAN 5051045057103
95 specifications
- ProcessorIntel® Xeon® 7000 Sequence
- Memory8 GB
- Storage0 GB
- OSNo
- Weight5.44 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 7000 Sequence
- Memory
- 8 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 5.44 kg
- Processor manufacturer
- Intel
- Brand
- Lenovo
- Category
- Server
- Model
- HX5
- Part numbers
- 7873A1G, 7873A2G, 7873A3G, 7873B1G, 7873B2G, 7873C1G +6 more
- EAN / UPC
- 5051045057103, 4053162385726
- Also known as
- Lenovo BladeCenter HX5 server 0 GB Blade Intel® Xeon® 7000 Sequence X7560 2.27 GHz 8 GB DDR3-SDRAM 130 W
Specifications
95 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 7000 Sequence |
| Processor model | X7560 |
| Processor frequency | 2.27 GHz |
| Processor boost frequency | 2.67 GHz |
| Processor cores | 8 |
| Processor cache | 24 MB |
| Motherboard chipset | Intel® 7500 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 130 W |
| Processor cache type | L3 |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Maximum number of SMP processors | 2 |
| Memory types supported by processor | DDR3 800/978/1066/1333 (Max Speed 1066 MHz) |
| Processor codename | Nehalem EX |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 7500 Series |
| Processor socket | LGA 1567 (Socket LS) |
| Processor threads | 16 |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 256 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 0.4 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA |
| HDD size | 1.8" |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| Hot-swap | No |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM5709S |
| Networking features | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Blade |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008, 2008 R2 (Standard/Web/Enterprise/Datacenter Editions) 32/64-bit Windows HPC Server 2008 64-bit RHEL 6 64-bit RHEL 5.3 64-bit SLES 11 64-bit SLES 10 64-bit VMware ESX, ESXi, vSphere Hypervisor 4.0 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 46499 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power supply | 130 W |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 29 mm |
| Depth | 446 mm |
| Height | 245 mm |
| Weight | 5.44 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | G200eV |
| Graphics card family | Matrox |
| Graphics card memory type | GDDR2 |
