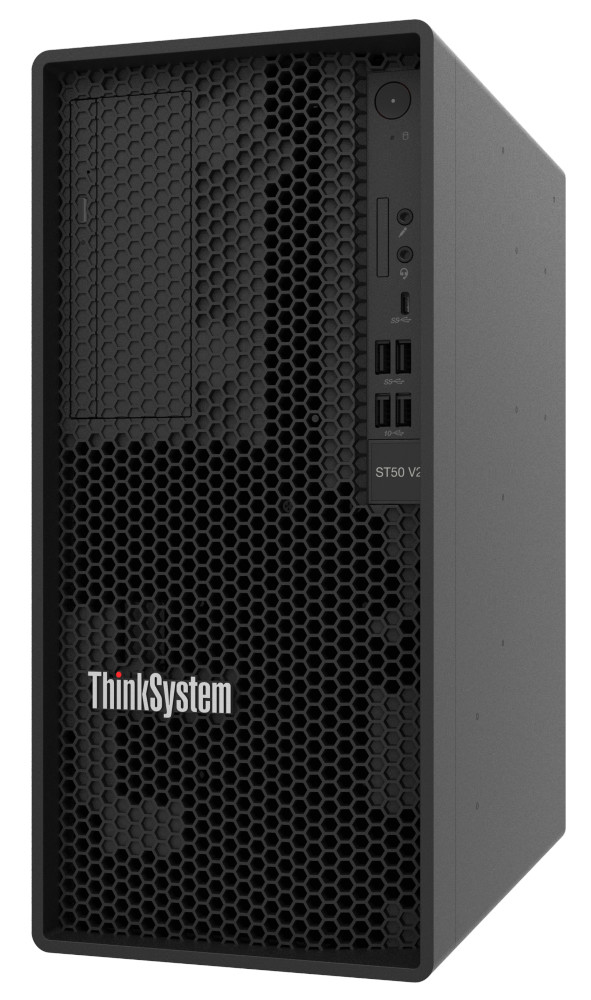

ThinkSystem 7D8JA00WAP server Tower Intel Xeon E E-2324G
3.1 GHz 8 GB DDR4-SDRAM 500 W
Model 7D8JA00WAP
49 specifications
- ProcessorIntel Xeon E
- Memory8 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
- Internal drive bays1
Overview
- Processor
- Intel Xeon E
- Memory
- 8 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Internal drive bays
- 1
- Brand
- Lenovo
- Category
- Server
- Model
- 7D8JA00WAP
- Part number
- 7D8JA00WAP
- Also known as
- Lenovo ThinkSystem 7D8JA00WAP server Tower Intel Xeon E E-2324G 3.1 GHz 8 GB DDR4-SDRAM 500 W
Specifications
49 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2324G |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cache | 8 MB |
| Number of processors installed | 1 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Internal drive bays | 1 |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P750 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I219-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 500 W |
| Number of redundant power supplies installed | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 316 mm |
| Height | 376 mm |
