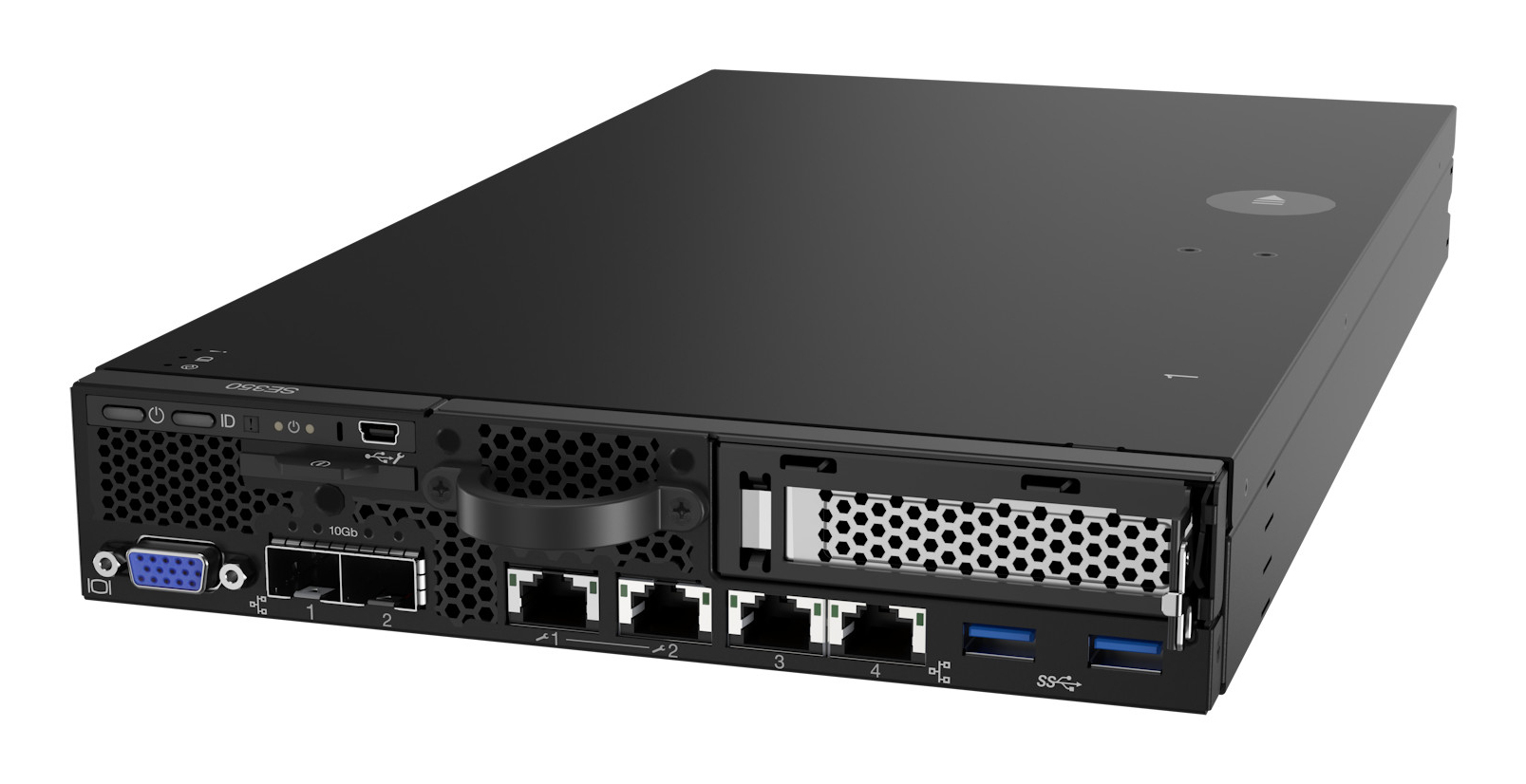

7D1XA02QEA server Rack (1U) Intel® Xeon® D D-2183IT
2.2 GHz 32 GB DDR4-SDRAM
Model 7D1XA02QEA
33 specifications
- ProcessorIntel® Xeon® D
- Memory32 GB
- Weight3.75 kg
- ColourBlack
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel® Xeon® D
- Memory
- 32 GB
- Weight
- 3.75 kg
- Colour
- Black
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- Lenovo
- Category
- Server
- Model
- 7D1XA02QEA
- Part number
- 7D1XA02QEA
- Also known as
- Lenovo 7D1XA02QEA server Rack (1U) Intel® Xeon® D D-2183IT 2.2 GHz 32 GB DDR4-SDRAM
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-2183IT |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 16 |
| Processor cache | 22 MB |
| Intel® Optane™ Memory Ready | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 256 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Matrox G200 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. Ubuntu Server certification |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 376 mm |
| Height | 43 mm |
| Weight | 3.75 kg |
