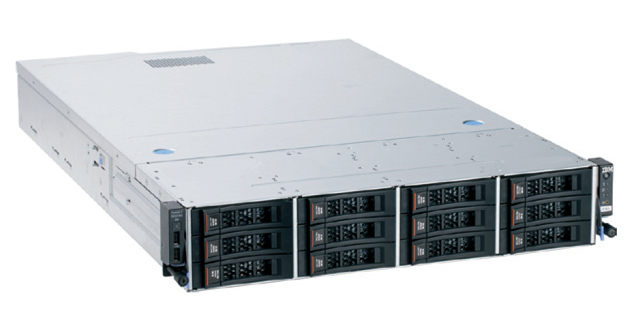

Lenovo 3650 M4 BD
Model 3650 M4 BDPart no. 5466B2GEAN 4053162404120
123 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- Storage0 GB
- OSNo
- Processor manufacturerIntel
- Maximum storage capacity56 TB
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- Storage
- 0 GB
- OS
- No
- Processor manufacturer
- Intel
- Maximum storage capacity
- 56 TB
- Brand
- Lenovo
- Category
- Server
- Model
- 3650 M4 BD
- Part numbers
- 5466B2G, 5466D2G
- EAN / UPC
- 4053162404120, 4053162404151, 5051045184847
- Also known as
- Lenovo System x 3650 M4 BD server 0 GB Rack (2U) Intel® Xeon® E5 Family E5-2609V2 2.5 GHz 8 GB DDR3-SDRAM 750 W
Specifications
123 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2609V2 |
| Processor frequency | 2.5 GHz |
| Processor boost frequency | 2.5 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Motherboard chipset | Intel® C602J |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Processor codename | Ivy Bridge EP |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45 mm |
| Processor series | Intel Xeon E5-2600 v2 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 4 |
| Scalability | 2S |
| Supported instruction sets | AVX |
| Tcase | 71 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 16 |
| Maximum internal memory | 512 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 56 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA III, Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 14 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-swap | Yes |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM4 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 6 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Red Hat Enterprise Linux 5/6 (x86/x64), SUSE Linux Enterprise Server 11 (x86/x64) |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 75787 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Number of main power supplies | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 447 mm |
| Depth | 749 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Flash memory | 512 MB |
| Graphics card | G200eR2 |
| Graphics card family | Matrox |
| Hot-swap HDD bays | 8 |
| S.M.A.R.T. support | Yes |
What people say
Reviews & ratings
Lenovo 3650 M4 BD
No reviews yet
Be the first to tell others how Lenovo 3650 M4 BD works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Lenovo 3650 M4 BD

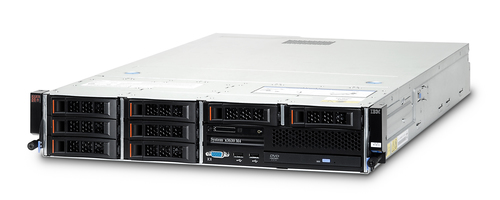

All server comparisons- Lenovo 3650 M4 BD vsLenovo 3630 M4Compare specs

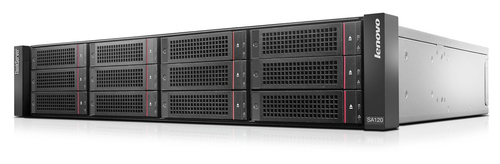

- Lenovo 3650 M4 BD vsLenovo ThinkServer SA120 serverCompare specs
