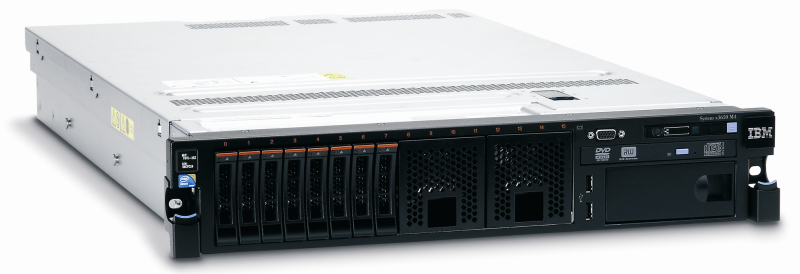

Lenovo 3650 M4

Model 3650 M4Part no. 7915J3UEAN 883436565752

133 specifications

Overview

Brand: Lenovo
Category: Server
Model: 3650 M4
Part numbers: 7915J3U, 7915L3U, 7915M3U, 7915F3U, 7915M2U, 7915G3M +5 more
EAN / UPC: 883436565752, 8834365657522, 883436534826, 883436496063 +2 more
Also known as: Lenovo System x 3650 M4 server 0 GB Rack (2U) Intel® Xeon® E5 V2 Family E5-2650V2 2.6 GHz 16 GB DDR3-SDRAM 750 W

133 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2650V2
Processor frequency	2.6 GHz
Processor boost frequency	3.4 GHz
Processor cores	8
Processor cache	20 MB
Motherboard chipset	Intel® C602J
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	59.7 GB/s
Memory clock speeds supported by processor	800,1066,1333,1600,1866 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Processor codename	Ivy Bridge EP
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 51 mm
Processor series	Intel Xeon E5-2600 v2
Processor socket	LGA 2011 (Socket R)
Processor threads	16
Scalability	2S
Supported instruction sets	AVX
Tcase	75 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
Intelligent Platform Management Interface (IPMI) support	Yes

Specification	Value
Maximum storage capacity	25.6 TB
Total storage capacity	0 GB
Number of HDDs installed	0
HDD interface	Serial ATA III, Serial Attached SCSI (SAS)
HDD size	2.5"
Number of HDDs supported	16
RAID support	Yes
RAID levels	0, 1, 10
Hot-swap	Yes
Optical drive type	No

Specification	Value
On-board graphics card	Yes
Maximum graphics card memory	16 MB

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
PS/2 ports quantity	0
Serial ports quantity	1
VGA (D-Sub) ports quantity	2

Specification	Value
PCI Express x8 (Gen 3.x) slots	3
PCI Express slots version	3.0

Specification	Value
BIOS type	UEFI
On-site support	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2/2012, 2008 R2/2008, Red Hat Enterprise Linux 5/6, SUSE Linux Enterprise Server 10/11, VMware ESX 4.1, VMware ESXi 4.1, VMware vSphere 5/5.1 (ESXi)

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75269

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W
Number of redundant power supplies supported	2
Number of main power supplies	1

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	8 - 85%
Storage relative humidity (H-H)	8 - 85%

Specification	Value
Keyboard included	No
Mouse included	No
