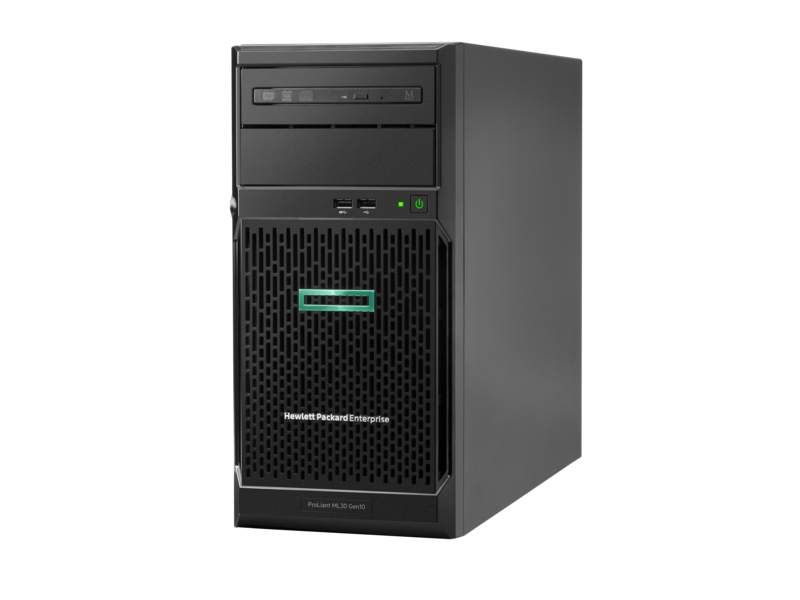

P06782-S01 server
1 TB Rack (4U) Intel® Xeon® E-2124 3.3 GHz 16 GB DDR4-SDRAM 350 W
Model P06782-S01
67 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage1 TB
- OSNo
- Weight10.1 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 1 TB
- OS
- No
- Weight
- 10.1 kg
- Processor manufacturer
- Intel
- Brand
- HP
- Category
- Server
- Model
- P06782-S01
- Part number
- P06782-S01
- Also known as
- HP P06782-S01 server 1 TB Rack (4U) Intel® Xeon® E-2124 3.3 GHz 16 GB DDR4-SDRAM 350 W
Specifications
67 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E-2124 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Thermal Design Power (TDP) | 71 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | DMI3 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor codename | Coffee Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Tjunction | 100 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 134856 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 350 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 475 mm |
| Height | 368.3 mm |
| Weight | 10.1 kg |
| Package weight | 17.6 kg |
