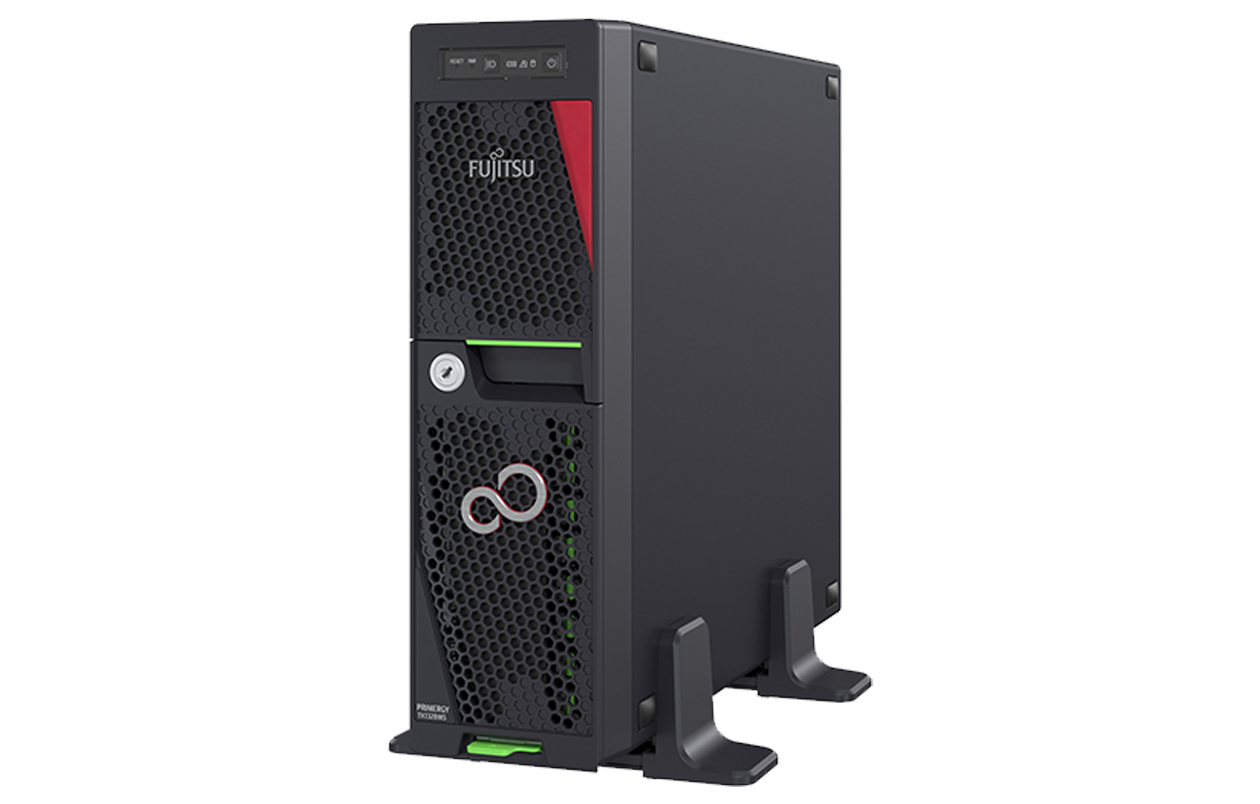

PRIMERGY VFY:T1325SC050AU server
0 GB Tower Intel Xeon E E-2388G 3.2 GHz 32 GB DDR4-SDRAM 500 W
Model VFY:T1325SC050AU
52 specifications
- ProcessorIntel Xeon E
- Memory32 GB
- Storage0 GB
- Weight11.1 kg
- ColourBlack, Red
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon E
- Memory
- 32 GB
- Storage
- 0 GB
- Weight
- 11.1 kg
- Colour
- Black, Red
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- VFY:T1325SC050AU
- Part number
- VFY:T1325SC050AU
- Also known as
- Fujitsu PRIMERGY VFY:T1325SC050AU server 0 GB Tower Intel Xeon E E-2388G 3.2 GHz 32 GB DDR4-SDRAM 500 W
Specifications
52 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2388G |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 5.1 GHz |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 0 TB |
| Total storage capacity | 0 GB |
| HDD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics P750 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 4.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black, Red |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2022 Datacenter Windows Server 2022 Standard Windows Server 2022 Essentials Windows Server 2019 Datacenter Windows Server 2019 Standard Windows Server 2019 Essentials SUSE Linux Enterprise Server 15 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, GS, CB, RoHS, WEEE NRTLc/us FCC Class A ICES-003 / NMB-003 Class A VCCI Class A + JIS 61000-3-2 VCCI Class B + JIS 61000-3-2 EAC KC CCC RCM BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 98 mm |
| Depth | 400 mm |
| Height | 340 mm |
| Weight | 11.1 kg |
