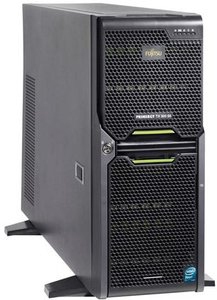

Fujitsu TX300 S6
Model TX300 S6Part no. VFY:T3006SF020GBEAN 4049699325816
114 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory12 GB
- Noise37 dB
- Weight40 kg
- Processor manufacturerIntel
- HDD size3.5"
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 12 GB
- Noise
- 37 dB
- Weight
- 40 kg
- Processor manufacturer
- Intel
- HDD size
- 3.5"
- Brand
- Fujitsu
- Category
- Server
- Model
- TX300 S6
- Part numbers
- VFY:T3006SF020GB, VFY:T3006SF020DE/M1, VFY:T3006SF020DE/M2, VFY:T3006SF020DE/M3, VFY:T3006SF020DE S26361-F2565-L351, VFY:T3006SF020DE S26361-F2565-L361 +34 more
- EAN / UPC
- 4049699325816, 4049699325823, 4049699363290, 4049699288616 +9 more
- Also known as
- Fujitsu PRIMERGY TX300 S6 server Tower (4U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 12 GB DDR3-SDRAM 800 W
Specifications
114 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5620 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5520 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5.86 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 18 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3 800/1066 |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Processor code | SLBV4 |
| Processor codename | Westmere EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 X 45 mm |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 77.6 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 12 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Maximum internal memory | 196608 MB |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 3 x 4 GB |
| Memory slots | 18x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| HDD interface | Serial ATA III, Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| RAID levels | 5, 6, 10, 50, 60 |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82575EB |
| Networking features | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 5 |
| PCI Express x8 slots | 4 |
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
Performance
| Specification | Value |
|---|---|
| Noise level | 37 dB |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Hyper-V Server 2008 R2. Windows Server 2008 R2 Datacenter. Windows Server 2008 R2 Enterprise. Windows Server 2008 R2 Standard. Windows Web Server 2008 R2. Windows HPC Server 2008 R2 Suite. Windows Server 2008 Enterprise. Windows Server 2008 Standard. Windows Small Business Server 2008 Stan |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 47925 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power requirements | 100-240V |
| Power supply | 800 W |
| Power supply input frequency | 47 - 63 Hz |
| Power consumption (typical) | 560 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | TÜV GS, CE A, CSAc/us, FCC A, CB, RoHS, WEEE, VCCI A, C-Tick, CNS 13438 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 745 mm |
| Height | 466 mm |
| Weight | 40 kg |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbit/s |
