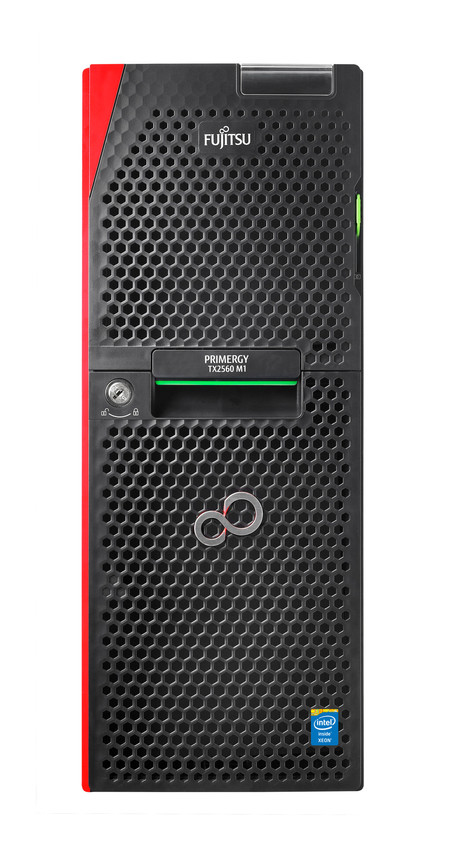

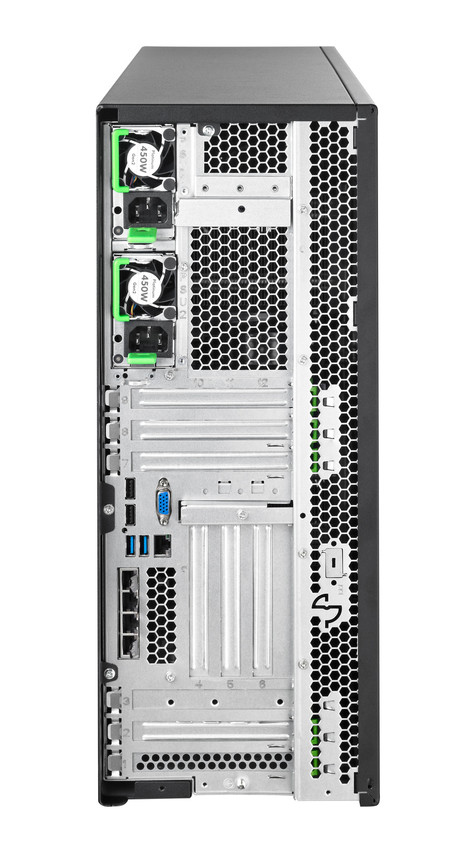

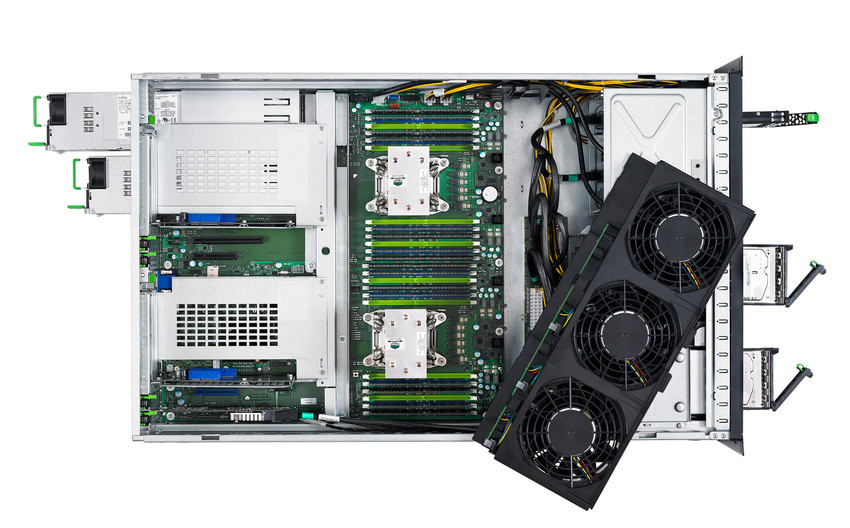

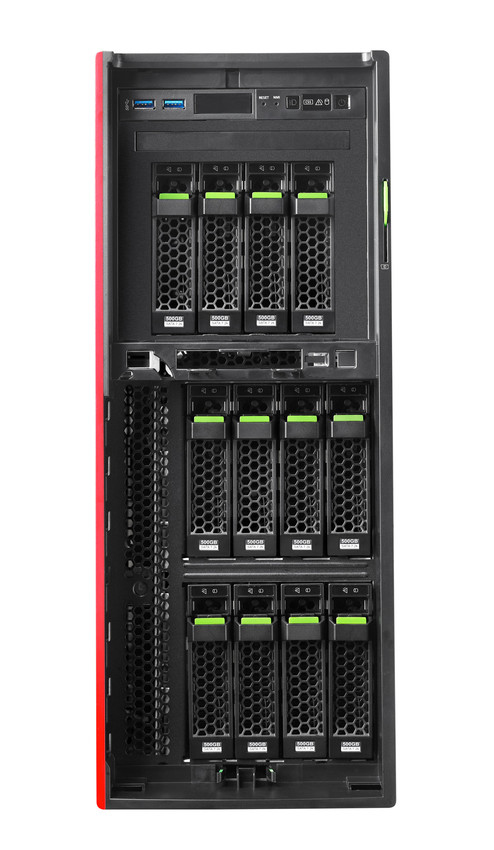

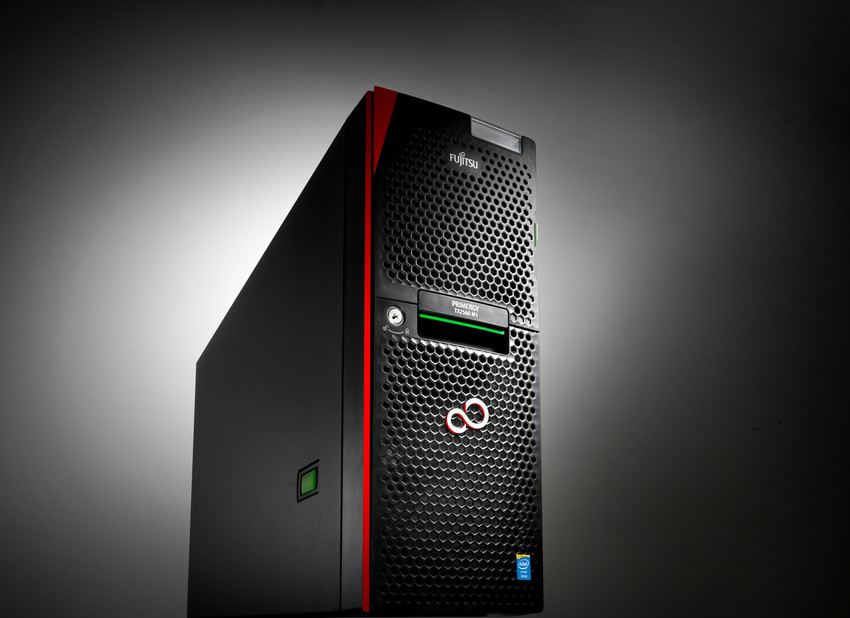

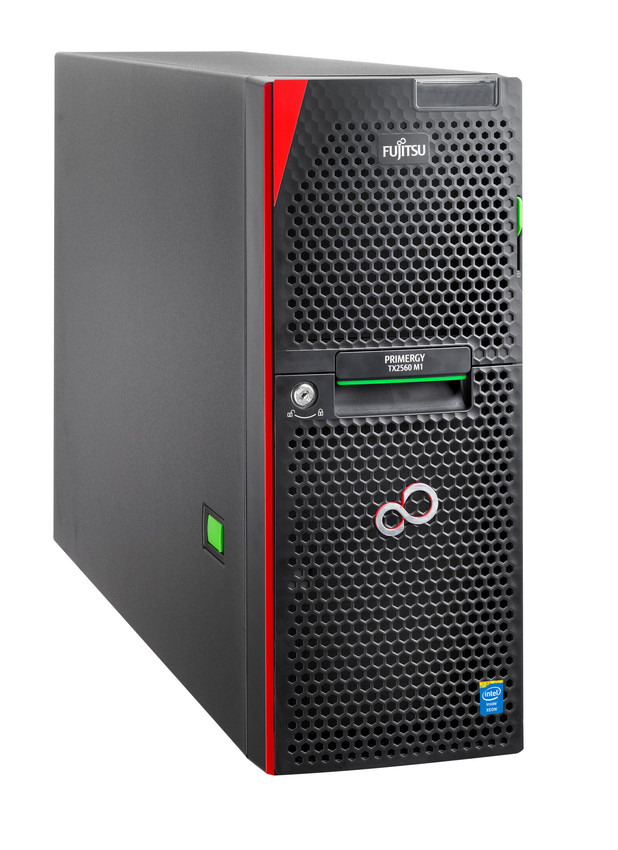

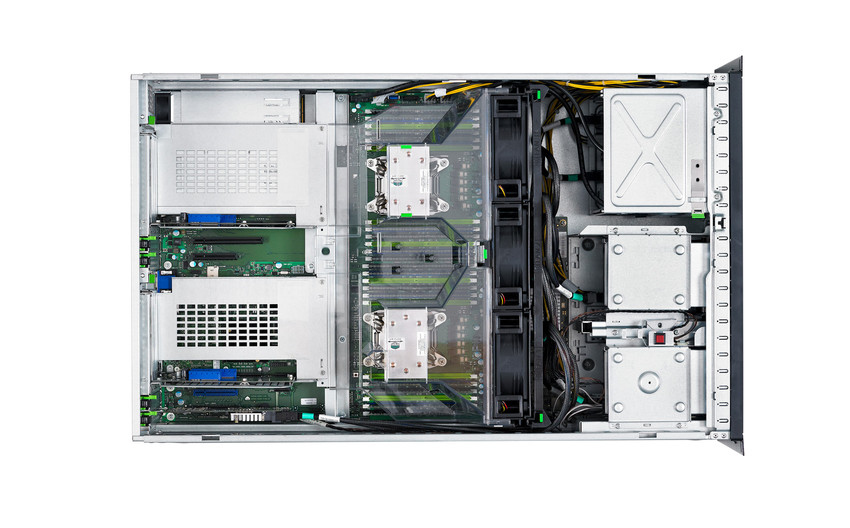

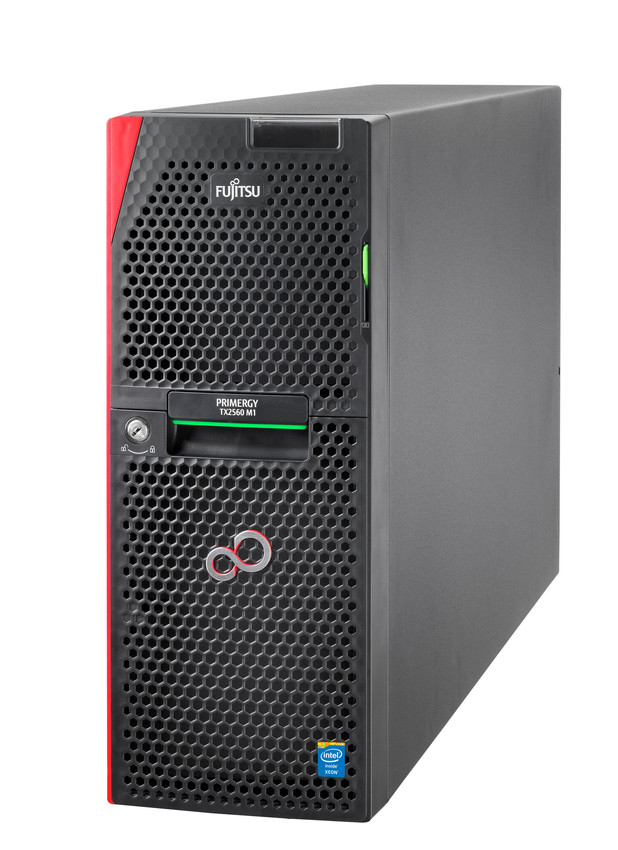

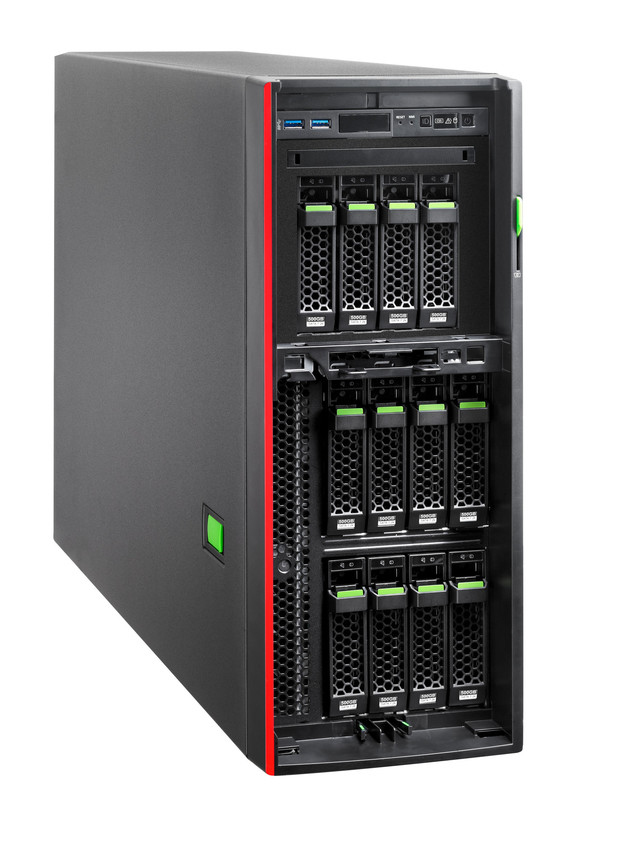

Fujitsu TX2560 M1
Model TX2560 M1Part no. VFY:T2561SC020IN S26361-F2567-D423 S2636EAN 4053026874397
113 specifications
- ProcessorIntel Xeon E5 v3
- Memory8 GB
- Storage0 GB
- Weight35.5 kg
- Processor manufacturerIntel
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- Intel Xeon E5 v3
- Memory
- 8 GB
- Storage
- 0 GB
- Weight
- 35.5 kg
- Processor manufacturer
- Intel
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Fujitsu
- Category
- Server
- Model
- TX2560 M1
- Part numbers
- VFY:T2561SC020IN S26361-F2567-D423 S2636, VFY:T2561SC020IN S26361-F2567-D413 S2636, VFY:T2561SC020IN S26361-F3849-L520, VFY:T2561SX100IT, VFY:T2561SX120FR, VFY:T2561SC010IN?3YNBD +9 more
- EAN / UPC
- 4053026874397, 4053026840309, 4054681931067, 4057185545396 +5 more
- Also known as
- Fujitsu PRIMERGY TX2560 M1 server 0 GB Tower (4U) Intel Xeon E5 v3 E5-2609V3 1.9 GHz 8 GB DDR4-SDRAM
Specifications
113 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2609V3 |
| Processor frequency | 1.9 GHz |
| Processor cores | 6 |
| Processor cache | 15 MB |
| Motherboard chipset | Intel® C612 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 51 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45 mm |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 6 |
| Scalability | 2S |
| Stepping | M1 |
| Supported instruction sets | AVX 2.0 |
| Tcase | 70.9 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 1.53 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| Supported HDD sizes | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 5, 6 |
| Hot-Plug support | Yes |
| Optical drive type | DVD-ROM |
| Supported storage drive interfaces | SAS, Serial ATA |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 4 |
| PCI Express x8 (Gen 3.x) slots | 5 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 81897 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, WEEE, GS, CSAc/us, FCC, C-Tick, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 777 mm |
| Height | 465 mm |
| Weight | 35.5 kg |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
What people say
Reviews & ratings
Fujitsu TX2560 M1
No reviews yet
Be the first to tell others how Fujitsu TX2560 M1 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu TX2560 M1
All server comparisons- Fujitsu TX2560 M1 vsFujitsu PRIMERGY RX1330 serverCompare specs
- Fujitsu TX2560 M1 vsFujitsu RX2560 M1Compare specs
- Fujitsu TX2560 M1 vsFujitsu TX2568 M1Compare specs
- Fujitsu TX2560 M1 vsFujitsu PRIMERGY RX2520 serverCompare specs

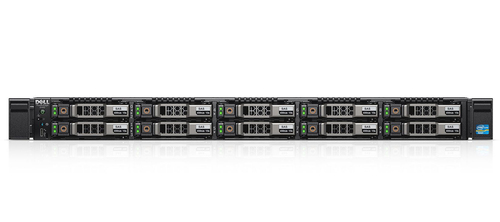

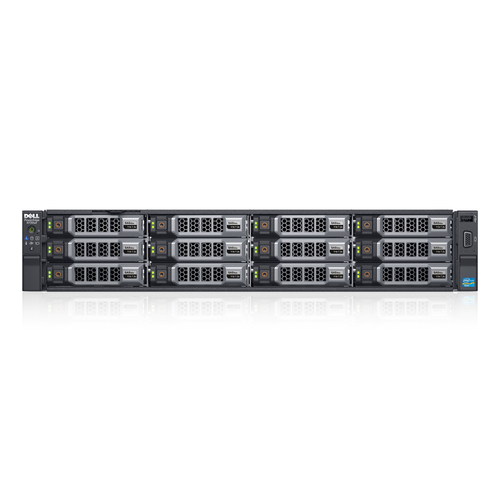

- Fujitsu TX2560 M1 vsDell PowerEdge R730xd serverCompare specs

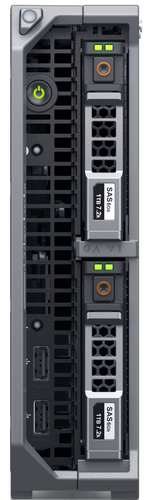

- Fujitsu TX2560 M1 vsDell PowerEdge M630 server Blade Intel Xeon E5 v3 E5-2640V3Compare specs
