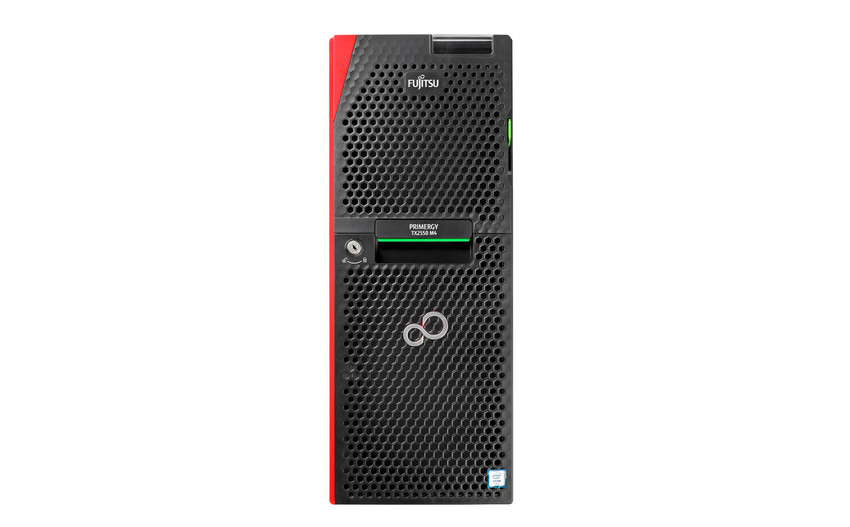

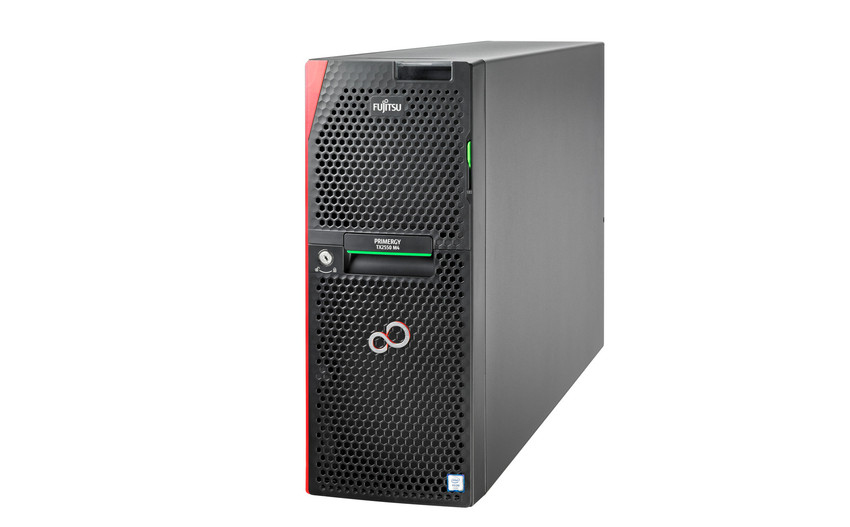

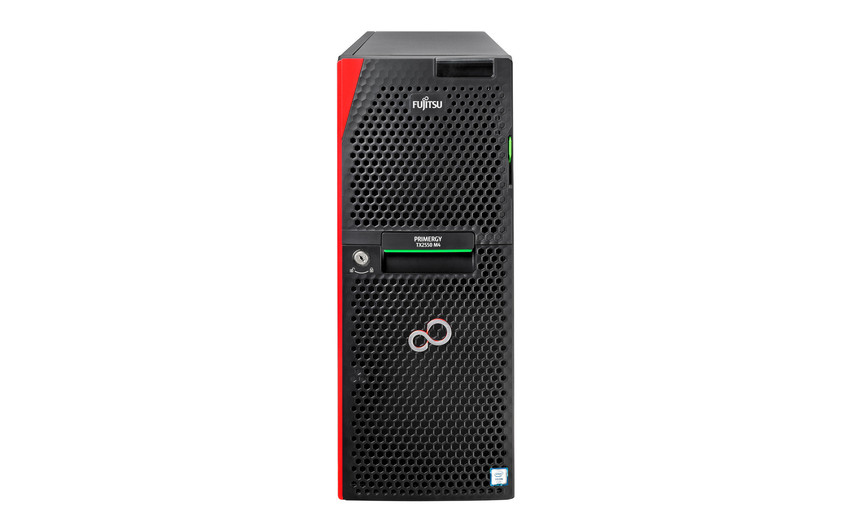

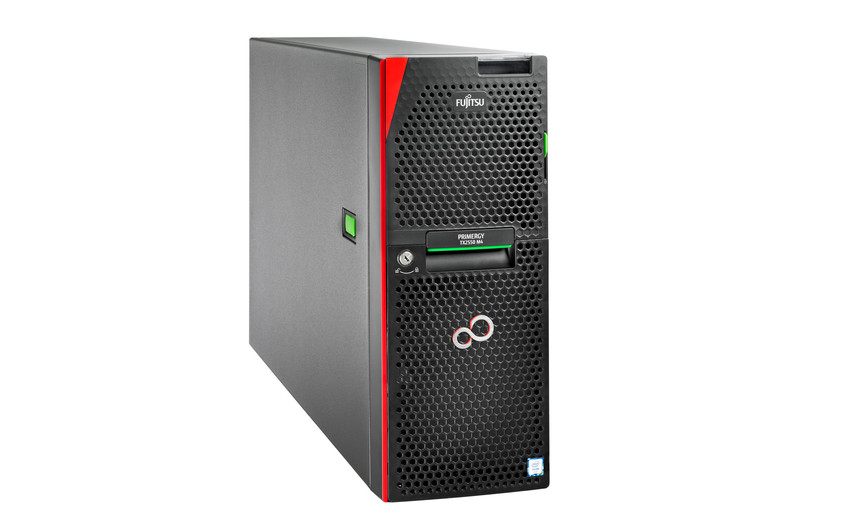

Fujitsu TX2550 M4

Model TX2550 M4Part no. VFY:T2554SX180BEEAN 4058154260890

75 specifications

Overview

Brand: Fujitsu
Category: Server
Model: TX2550 M4
Part numbers: VFY:T2554SX180BE, LKN:T2554S0003IT, VFY:T2554SC140IN, BUNDLEFUJI034, BUNDLEFUJI037, BUNDLEFUJI038 +23 more
EAN / UPC: 4058154260890, 4059595530313, 4058154260906, 4059595530320 +18 more
Also known as: Fujitsu PRIMERGY TX2550 M4 server 0 GB Tower Intel® Xeon® 3106 1.7 GHz 8 GB DDR4-SDRAM 750 W

75 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	3106
Processor frequency	1.7 GHz
Processor cores	8
Processor cache	11 MB
Memory channels supported by processor	Hexa
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	L3
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2133 MHz
Memory types supported by processor	DDR4-SDRAM
Processor code	SR3GL
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	8
Scalability	2S
Stepping	U0
Tcase	77 °C
Conflict-Free processor	Yes

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
Number of HDDs supported	8
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Hot-Plug support	Yes
Optical drive type	DVD±RW
Supported storage drive interfaces	PCI Express, Serial ATA

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
VGA (D-Sub) ports quantity	1

Specification	Value
PCI Express slots version	3.0

Specification	Value
Chassis type	Tower

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	123540

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Certification	CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, VCCI:V3 Class A + JIS 61000-3-2, KN32, KN35, CCC, C-Tick, BSMI

Specification	Value
Number of 2.5" bays	8
