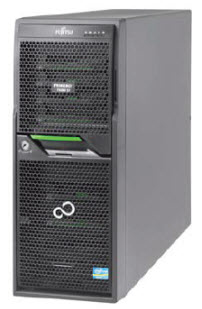

Fujitsu TX200 S7 + Windows Small Business Server 2011 Standard

Model TX200 S7 + Windows Small Business Server 2011 StandardPart no. VFY:T2007SC020IN + S26361-F2567-L351

125 specifications

Overview

Brand: Fujitsu
Category: Server
Model: TX200 S7 + Windows Small Business Server 2011 Standard
Part numbers: VFY:T2007SC020IN + S26361-F2567-L351, VFY:T2007SC050IN + S26361-F2567-L351
Also known as: Fujitsu PRIMERGY TX200 S7 + Windows Small Business 2011 Standard server 0 GB Rack (4U) Intel® Xeon® E5 Family E5-2420 1.9 GHz 8 GB DDR3-SDRAM 450 W

125 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2420
Processor frequency	1.9 GHz
Processor boost frequency	2.4 GHz
Processor cores	6
Processor cache	15 MB
Motherboard chipset	Intel® C602J
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	375 GB
Maximum number of PCI Express lanes	24
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	32 GB/s
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	1
Processor code	SR0LN
Processor codename	Sandy Bridge EN
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	45 x 42.5 mm
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor threads	12
Scalability	2S
Stepping	C2
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
HDD capacity	0 GB
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Number of HDDs supported	16
Supported HDD sizes	2.5,3.5"
Number of SSDs installed	0
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Hot-swap	Yes
Optical drive type	DVD-RW

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	9
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	0
Firewire (IEEE 1394) ports	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
Parallel ports quantity	0
RS-232 ports	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Rack (4U)

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft® Hyper-V Server 2012 Microsoft® Windows Server® 2012 Datacenter Microsoft® Windows Server® 2012 Standard Microsoft® Windows Storage Server 2012 Standard Microsoft® Hyper-V™ Server 2008 R2 Microsoft® Windows Server® 2008 R2 Datacenter Microsoft® Windows Server® 2008 R2 Enterprise Microsoft®

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64617

Specification	Value
Power supply type	AC
Number of power supply units	1
Power requirements	100 - 240 V
Power supply	450 W
Power supply input frequency	50 - 60 Hz

Specification	Value
Storage temperature (T-T)	10 - 85 °C
Operating relative humidity (H-H)	10 - 35%

Specification	Value
Energy efficiency class	A
Certification	TÜV GS, CE Cl.A, CSAc/us, ULc/us, FCC Cl.A, CB, RoHS, WEEE, VCCI Cl. A + JIS 61000-3-2, CCC, C-Tick, BSMI.

Specification	Value
Number of products included	1 pc(s)
Ventilation fan(s)	4
