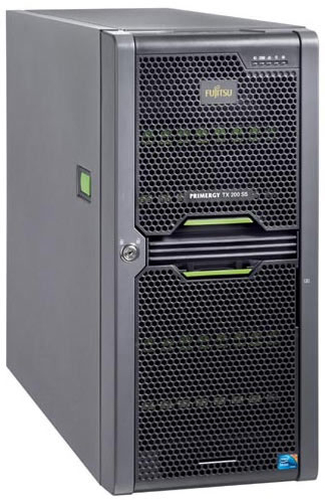

Fujitsu TX200 S6F
Model TX200 S6FPart no. LKN:T2006S0137FREAN 4051554289867
25 specifications
- Processor manufacturerIntel
- Internal memory typeDDR3-SDRAM
- RAID supportYes
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports2
- PCI Express x4 slots3
Overview
- Processor manufacturer
- Intel
- Internal memory type
- DDR3-SDRAM
- RAID support
- Yes
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 2
- PCI Express x4 slots
- 3
- Brand
- Fujitsu
- Category
- Server
- Model
- TX200 S6F
- Part numbers
- LKN:T2006S0137FR, LKN:T2006S0275FR
- EAN / UPC
- 4051554289867
- Also known as
- Fujitsu PRIMERGY TX200 S6F server DDR3-SDRAM 800 W
Specifications
25 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® 5500 |
Memory
| Specification | Value |
|---|---|
| Internal memory type | DDR3-SDRAM |
| Memory slots | 12x DIMM |
| Maximum internal memory | 96 GB |
Storage
| Specification | Value |
|---|---|
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50, 60, 1E |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 3 |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Hyper-V Server 2012 Microsoft Windows Server 2012 Datacenter Microsoft Windows Server 2012 Standard Microsoft Hyper-V Server 2008 R2 Microsoft Windows Server 2008 R2 Datacenter Microsoft Windows Server 2008 R2 Enterprise Microsoft Windows Server 2008 R2 Standard Microsoft Windows Web Serve |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| Power supply input frequency | 47 - 63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | TUV, CE, CSA, WEEE, VCCI, RoHS, BSMI, FCC, ULc/US |
