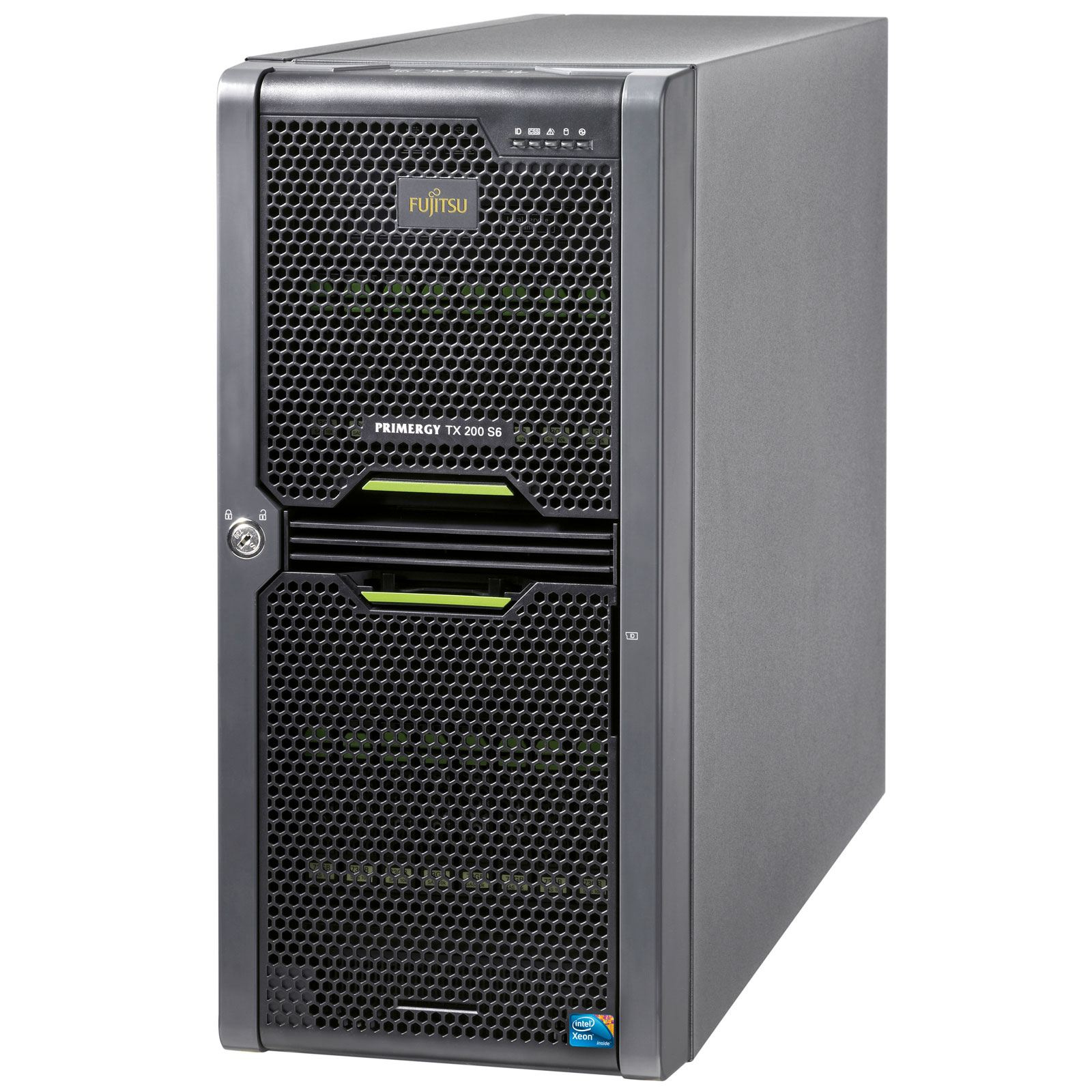

Fujitsu TX200 S6 + Windows Small Business Server 2011 Premium

Model TX200 S6 + Windows Small Business Server 2011 PremiumPart no. VFY:T2006SX050IN+SBSPREM2011

129 specifications

ProcessorIntel® Xeon® 5000 Sequence
Memory4 GB
Storage0 GB
Energy classA
Noise36 dB
Weight36 kg

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Memory: 4 GB
Storage: 0 GB
Energy class: A
Noise: 36 dB
Weight: 36 kg

Brand: Fujitsu
Category: Server
Model: TX200 S6 + Windows Small Business Server 2011 Premium
Part numbers: VFY:T2006SX050IN+SBSPREM2011, VFY:T2006SF020NC+SBSPRE2011C1, VFY:T2006SF020NC+SBSPRE2011C5, VFY:T2006SF020NC+SBSPRE2011U1, VFY:T2006SF020NC+SBSPRE2011U5, VFY:T2006SF020NC+SBSPREM2011 +4 more
Also known as: Fujitsu PRIMERGY TX200 S6 + Windows Small Business 2011 Premium server 0 GB Rack (5U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 4 GB DDR3-SDRAM 800 W

Specifications

129 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5620
Processor frequency	2.4 GHz
Processor boost frequency	2.66 GHz
Processor cores	4
Processor cache	12 MB
Motherboard chipset	Intel® 5500
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5.86 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	18
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	288 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3 800/1066
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processor code	SLBV4
Processor codename	Westmere EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	8
Stepping	B1
Supported instruction sets	SSE4.2
Tcase	77.6 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory clock speed	1333 MHz
Memory layout (slots x size)	1 x 4 GB
Memory slots	12
Maximum internal memory	96 GB

Storage

Specification	Value
Maximum storage capacity	16 TB
Total storage capacity	0 GB
Number of HDDs installed	0
HDD capacity	0 GB
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD size	2.5"
Number of HDDs supported	8
Number of SSDs installed	0
RAID support	Yes
RAID levels	0, 1, 5, 6
Hot-Plug support	Yes
Hot-swap	Yes
Optical drive type	DVD-RW

Graphics

Specification	Value
Maximum graphics card memory	32 MB

Network

Specification	Value
Network ready	Yes
Wi-Fi	No
Wi-Fi standards	Not supported
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	0
Firewire (IEEE 1394) ports	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
Parallel ports quantity	0
RS-232 ports	2
Serial ports quantity	2
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x4 slots	3
PCI Express x8 slots	2

Design

Specification	Value
Chassis type	Rack (5U)

Performance

Specification	Value
Noise level	36 dB

Software

Specification	Value
Compatible operating systems	Windows Server 2008 R2 (containing Hyper-V) Windows Server 2003 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware Infrastructure VMware vSphere 4.1

Processor special features

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	47925

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply type	AC
Number of power supply units	1
Power requirements	100 - 240 V
Power supply	800 W
Power supply input frequency	47 - 63 Hz
Power consumption (typical)	685 W

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Specification	Value
Energy efficiency class	A
Certification	TÜV GS, CE, CSAc, ULc, FCC, CB, RoHS, WEEE, VCCI, C-Tick, BSMI

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	205 mm
Depth	584 mm
Height	444 mm
Weight	36 kg

Other features

Specification	Value
CD read speed	24x
Ventilation fan(s)	2
