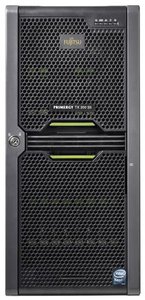

Fujitsu TX200 S6 + Windows Server 2008 R2 SP1 Standard

Model TX200 S6 + Windows Server 2008 R2 SP1 StandardPart no. VFY:T2006SX050IN+S26

120 specifications

Overview

Brand: Fujitsu
Category: Server
Model: TX200 S6 + Windows Server 2008 R2 SP1 Standard
Part number: VFY:T2006SX050IN+S26
Also known as: Fujitsu PRIMERGY TX200 S6 + Windows 2008 R2 SP1 Standard server 0 GB Rack (5U) Intel® Xeon® 5000 Sequence E5606 2.13 GHz 4 GB DDR3-SDRAM 800 W

120 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5606
Processor frequency	2.13 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® 5500
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	4.8 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	16
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	288 GB
Maximum number of SMP processors	1
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processor code	SLC2N
Processor codename	Westmere EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	4
Stepping	B1
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD size	3.5"
Number of HDDs supported	4
RAID support	Yes
RAID levels	0, 1, 10
Hot-Plug support	Yes
Hot-swap	Yes
Optical drive type	DVD Super Multi

Specification	Value
Ethernet LAN	Yes
Networking features	Fast Ethernet

Specification	Value
Chassis type	Rack (5U)

Specification	Value
Noise level	36 dB

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2008 R2 Windows Server 2003 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware Infrastructure VMware vSphere 4.1 Note: Support of other Linux

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52583

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply type	AC
Number of power supply units	1
Power requirements	100 - 240V
Power supply	800 W
Power supply input frequency	47 - 63 Hz
Power consumption (typical)	685 W

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	CE, FCC, RoHS, CB, WEEE

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Disk array controller	ICH10R
CD read speed	48x
Data transfer rate	1 Gbit/s
Fibre Channel	Yes
Mac compatibility	No
Supported data transfer rates	10/100/1000 Mbps
Motherboard manufacturer	Intel D 2799
