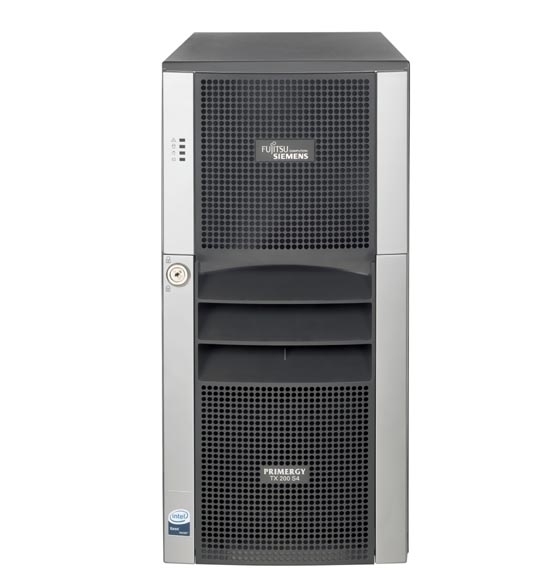

Fujitsu TX200 S4
Model TX200 S4Part no. VFY:T2004SF070DE?GARANTIE
110 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory2 GB
- Storage146 GB
- Noise37 dB
- OSNo
- Weight35 kg
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 2 GB
- Storage
- 146 GB
- Noise
- 37 dB
- OS
- No
- Weight
- 35 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- TX200 S4
- Part numbers
- VFY:T2004SF070DE?GARANTIE, VFY:T2004SF040DE?2.CPU-50%, VFY:T2004SH030DE?2.CPU-50%, VFY:T2004SF040DE?GARANTIE, VFY:T2004SH030DE?GARANTIE
- Also known as
- Fujitsu PRIMERGY TX200 S4 server 146 GB Tower Intel® Xeon® 5000 Sequence E5430 2.66 GHz 2 GB DDR2-SDRAM 512 W
Specifications
110 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5430 |
| Processor frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5000Z |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 8 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Maximum number of SMP processors | 1 |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| Processor code | SLBBK |
| Processor codename | Harpertown |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5400 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor system type | DP |
| Processor threads | 4 |
| Stepping | E0 |
| Tcase | 67 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Maximum internal memory | 4096 MB |
| Memory clock speed | 667 MHz |
| Memory layout (slots x size) | 2 x 1 GB |
| Memory slots | 2x DIMM |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 146 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 146 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| RAID levels | 5, 6 |
| Hot-swap | Yes |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 5 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 4 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
| PCI-X slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Performance
| Specification | Value |
|---|---|
| Noise level | 37 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008 R2 Windows Server 2008 Windows Server 2003 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware Infrastructure VMware vSphere 4.0 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33081 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Number of power supply units | 2 |
| Power requirements | 220-240V |
| Power supply | 512 W |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | GS, CE, CSAc/us, ULc/us, FCC, CB, RoHS, WEEE, VCCI, C-Tick, BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 699 mm |
| Height | 447 mm |
| Weight | 35 kg |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1 Gbit/s |
| Mac compatibility | No |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Motherboard manufacturer | D 2509 |
