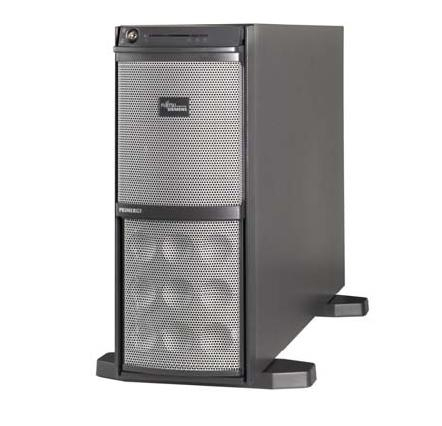

Fujitsu TX200 S3
Model TX200 S3Part no. VFY:TX200S3002ES
94 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory1 GB
- Weight38 kg
- Processor manufacturerIntel
- Maximum storage capacity1.8 TB
- Network readyYes
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 1 GB
- Weight
- 38 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 1.8 TB
- Network ready
- Yes
- Brand
- Fujitsu
- Category
- Server
- Model
- TX200 S3
- Part number
- VFY:TX200S3002ES
- Also known as
- Fujitsu PRIMERGY TX200 S3 server Tower Intel® Xeon® 5000 Sequence 5110 1.6 GHz 1 GB DDR2-SDRAM
Specifications
94 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5110 |
| Processor frequency | 1.6 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Motherboard chipset | Intel® 5000V |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 6 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Maximum number of SMP processors | 2 |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Processor codename | Woodcrest |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5100 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 2 |
| Tcase | 65 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory slots | 2x DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 1.8 TB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| RAID levels | 1 |
| Hot-swap | Yes |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Networking features | Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 5 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI slots | 2 |
| PCI-X slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003/2003 R2/2000 Linux |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27214 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100-240V, 50/60Hz |
| Power consumption (typical) | 578 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 174 mm |
| Depth | 755 mm |
| Height | 474 mm |
| Weight | 38 kg |
