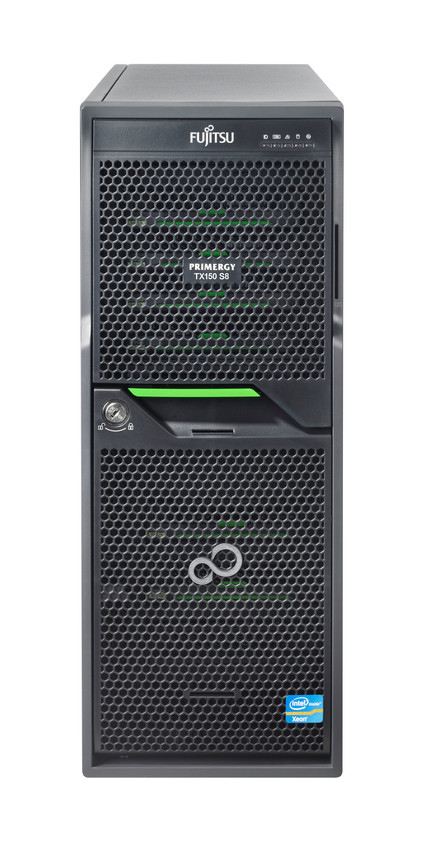

Fujitsu TX150 S8 + Windows Server 2012 Datacenter 2CPU

Model TX150 S8 + Windows Server 2012 Datacenter 2CPUPart no. VFY:T1508SC030IN + S26361-F2567-D410

134 specifications

Overview

Brand: Fujitsu
Category: Server
Model: TX150 S8 + Windows Server 2012 Datacenter 2CPU
Part numbers: VFY:T1508SC030IN + S26361-F2567-D410, VFY:T1508SC040IN + S26361-F2567-D410
Also known as: Fujitsu PRIMERGY TX150 S8 + Windows 2012 Datacenter 2CPU server 1 TB Rack (4U) Intel® Xeon® E5 Family E5-2420 1.9 GHz 8 GB DDR3-SDRAM 450 W

134 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2420
Processor frequency	1.9 GHz
Processor boost frequency	2.4 GHz
Processor cores	6
Processor cache	15 MB
Motherboard chipset	Intel® C602
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	375 GB
Maximum number of PCI Express lanes	24
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	32 GB/s
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	1
Processor code	SR0LN
Processor codename	Sandy Bridge EN
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	45 x 42.5 mm
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor threads	12
Scalability	2S
Stepping	C2
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
Intelligent Platform Management Interface (IPMI) support	Yes

Specification	Value
Total storage capacity	1 TB
Number of HDDs installed	2
HDD capacity	500 GB
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD speed	7200 RPM
HDD size	2.5"
Number of HDDs supported	4
RAID support	Yes
RAID levels	0, 1, 10
Hot-swap	Yes
Drive device, transfer rate	768 MB/s
Internal drive bays	4x 3.5"
Optical drive type	DVD Super Multi

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	9
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	0
Firewire (IEEE 1394) ports	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
Parallel ports quantity	0
RS-232 ports	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Rack (4U)
Rack mounting	Yes

Specification	Value
Remote administration	iRMC S3

Specification	Value
Operating system installed	No
Compatible operating systems	v

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64617

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply type	AC
Number of power supply units	1
Power requirements	100 - 240 V
Power supply	450 W
Power supply input frequency	50 - 60 Hz

Specification	Value
Storage temperature (T-T)	10 - 85 °C
Operating relative humidity (H-H)	10 - 35%

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Energy efficiency class	A
Certification	v

Specification	Value
Ventilation fan(s)	3
