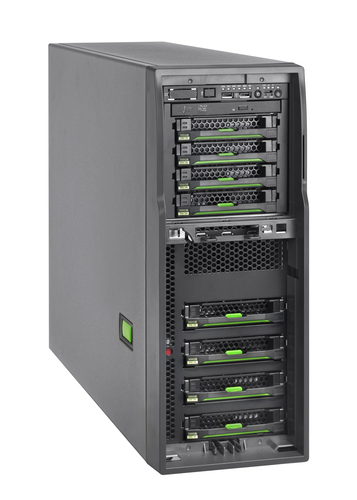

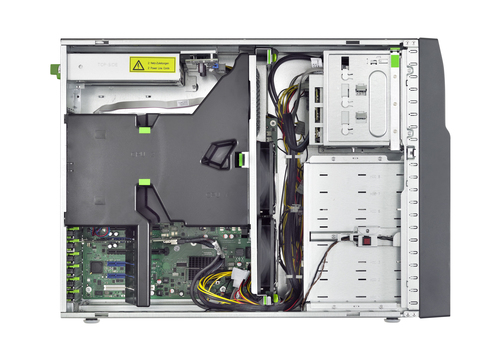

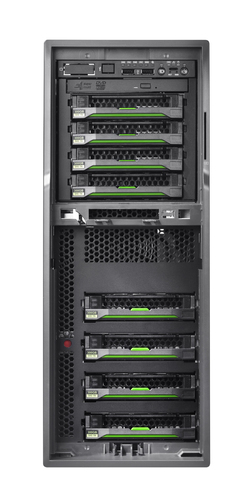

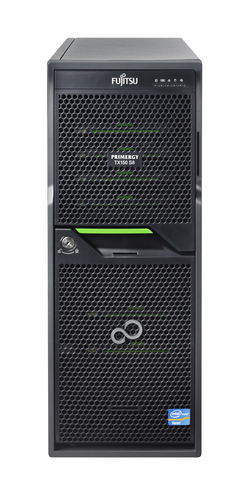

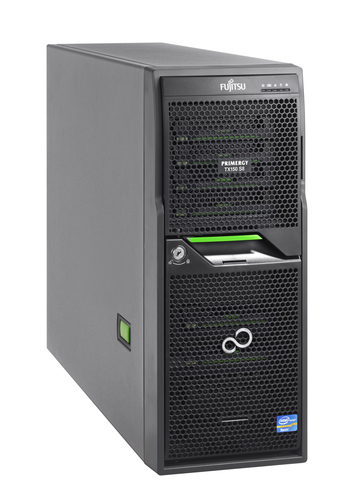

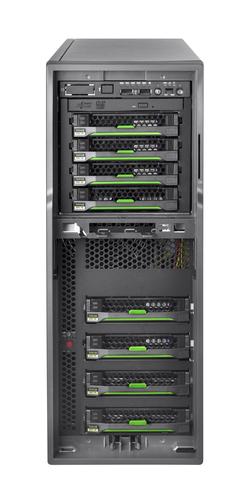

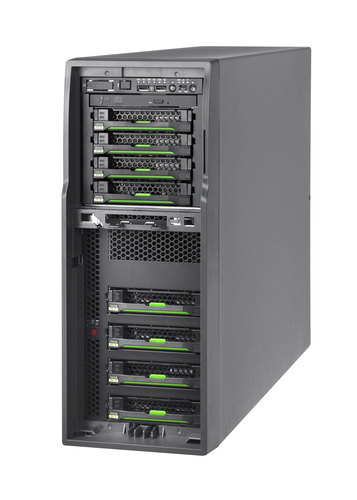

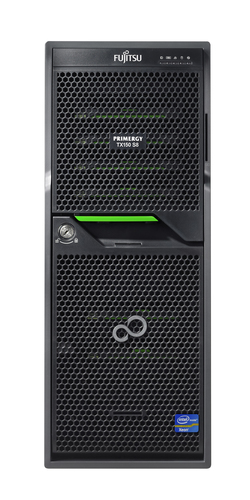

Fujitsu TX150 S8
Model TX150 S8Part no. VFY:T1508SX060FREAN 4051554596521
109 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- Weight29 kg
- Processor manufacturerIntel
- HDD size2.5"
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- Weight
- 29 kg
- Processor manufacturer
- Intel
- HDD size
- 2.5"
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Fujitsu
- Category
- Server
- Model
- TX150 S8
- Part numbers
- VFY:T1508SX060FR, LKN:T1508S0001DE, LKN:T1508S0002DE, LKN:T1508S0003DE, VFY:T1508SC010IN, VFY:T1508SX070ES +34 more
- EAN / UPC
- 4051554596521, 4051554531300, 4051554531317, 4051554531324 +56 more
- Also known as
- Fujitsu PRIMERGY TX150 S8 server Tower Intel® Xeon® E5 Family E5-2403 1.8 GHz 8 GB DDR3-SDRAM 450 W
Specifications
109 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2403 |
| Processor frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Motherboard chipset | Intel® C602 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 375 GB |
| Maximum number of PCI Express lanes | 24 |
| Memory bandwidth supported by processor (max) | 25 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 1 |
| Processor code | SR0LS |
| Processor codename | Sandy Bridge EN |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 42.5 mm |
| Processor series | Intel Xeon E5-2400 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor threads | 4 |
| Scalability | 2S |
| Stepping | M1 |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 6 |
| Maximum internal memory | 96 GB |
Storage
| Specification | Value |
|---|---|
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-swap | Yes |
| Internal drive bays | 8 x 2.5" |
| Optical drive type | DVD Super Multi |
| Supported storage drive interfaces | SAS, Serial ATA |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 9 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 3.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | - Microsoft Hyper-V Server 2012 - Microsoft Windows Server 2012 Datacenter - Microsoft Windows Server 2012 Standard - Microsoft Windows Server 2012 Essentials - Microsoft Windows Server 2012 Foundation - Microsoft Windows Storage Server 2012 Standard - Microsoft Hyper-V Server 2008 R2 - Microsoft Wi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64615 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE A, 2004/108/EC, EN 300386, EN 50371, EN 55022, EN 55024, EN 60950 - 1, EN 61000-3-2 JEIDA, EN 61000-3-3, CSAc/us, ULc/us, FCC A, CB, RoHS, WEEE, VCCI A + JIS 61000-3-2, GOST-R, CCC, C-Tick (AS / NZS CISPR 22 A), BSMI A (CNS 13438, CNS 14336), CNS 13436 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 651 mm |
| Height | 456 mm |
| Weight | 29 kg |
Other features
| Specification | Value |
|---|---|
| CD read speed | 48x |
