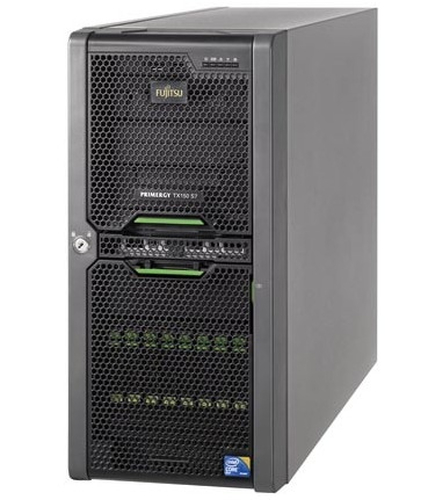

Fujitsu TX150 S7
Model TX150 S7Part no. VFY:T1507SF010DE S26361-F2567-L310EAN 4049699454875
114 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage0 GB
- Noise33 dB
- OSNo
- Weight28 kg
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 0 GB
- Noise
- 33 dB
- OS
- No
- Weight
- 28 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- TX150 S7
- Part numbers
- VFY:T1507SF010DE S26361-F2567-L310, VFY:T1507SC010IN/M1, VFY:T1507SC010IN/M2, VFY:T1507SC010IN/M3, VFY:T1507SF030DE/M1, VFY:T1507SF030DE/M2 +34 more
- EAN / UPC
- 4049699454875, 4049699447211, 4049699446467, 4049699458323 +29 more
- Also known as
- Fujitsu PRIMERGY TX150 S7 server 0 GB Tower (5U) Intel® Core™ i3 i3-540 3.06 GHz 4 GB DDR3-SDRAM 350 W
Specifications
114 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | Intel® Core™ i3 |
| Processor model | i3-540 |
| Processor frequency | 3.06 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 73 W |
| Processor cache type | Smart Cache |
| System bus rate | 2.5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 23 |
| ECC supported by processor | No |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 16 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory types supported by processor | DDR3 1066/1333 |
| Number of Processing Die Transistors | 382 M |
| PCI Express configurations | 1x16, 2x8 |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processing Die size | 81 mm² |
| Processor codename | Clarkdale |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Core i3-500 Desktop Series |
| Processor socket | LGA 1156 (Socket H) |
| Processor threads | 4 |
| Stepping | C2 |
| Supported instruction sets | SSE4.2 |
| Tcase | 72.6 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory slots | 6x DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 733 MHz |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (5U) |
Performance
| Specification | Value |
|---|---|
| Noise level | 33 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008/Server 2003/SBS 2011 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere 4.1 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 46473 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power requirements | 100-240V, 50/60 Hz |
| Power supply | 350 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | CE, RoHS, WEEE, FCC, VCCI, CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 584 mm |
| Height | 444 mm |
| Weight | 28 kg |
