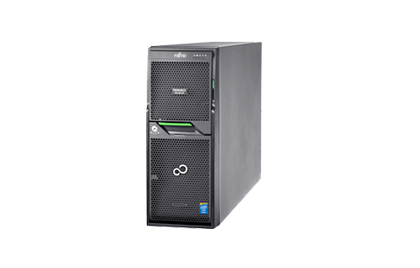

Fujitsu PRIMERGY TX140S2 server

0 GB Tower Intel® Xeon® E3 V3 Family E3-1230V3 3.3 GHz 8 GB DDR3-SDRAM

Model TX140S2Part no. VFY:T1402SX120ITEAN 4053026650199

120 specifications

ProcessorIntel® Xeon® E3 V3 Family
Memory8 GB
Storage0 GB
Weight15 kg
Processor manufacturerIntel
On-board graphics cardNo

See all specifications

Overview

Processor: Intel® Xeon® E3 V3 Family
Memory: 8 GB
Storage: 0 GB
Weight: 15 kg
Processor manufacturer: Intel
On-board graphics card: No

Brand: Fujitsu
Category: Server
Model: TX140S2
Part number: VFY:T1402SX120IT
EAN / UPC: 4053026650199
Also known as: Fujitsu PRIMERGY TX140S2 server 0 GB Tower Intel® Xeon® E3 V3 Family E3-1230V3 3.3 GHz 8 GB DDR3-SDRAM

Specifications

120 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V3 Family
Processor model	E3-1230V3
Processor frequency	3.3 GHz
Processor boost frequency	3.7 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C224
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	22 nm
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	16
Maximum number of SMP processors	1
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	1
PCI Express configurations	1x16, 2x8, 1x8+2x4
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Processor threads	8
Scalability	1S
Stepping	C0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Conflict-Free processor	No
Intelligent Platform Management Interface (IPMI) support	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory clock speed	1600 MHz
Memory slots	4
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
Supported HDD sizes	2.5,3.5"
Optical drive type	DVD Super Multi
Supported storage drive interfaces	SAS, Serial ATA

Graphics

Specification	Value
On-board graphics card	No
On-board graphics card model	Not available

Network

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
RS-232 ports	1
Serial ports quantity	1

Expansion slots

Specification	Value
PCI Express x1 (Gen 2.x) slots	1
PCI Express x4 (Gen 2.x) slots	1
PCI Express x8 (Gen 3.x) slots	2
PCI Express slots version	3.0

Design

Specification	Value
Chassis type	Tower

Performance

Specification	Value
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Compatible operating systems	Hyper-V Server R2 2012 Windows Server 2012 R2 Datacenter Windows Server 2012 R2 Standard Windows Server 2012 R2 Essentials Windows Server 2012 R2 Foundation Windows Storage Server 2012 R2 Standard Hyper-V Server 2012 Windows Server 2012 Datacenter Windows Server 2012 Standard Windows Server 2012 Ess

Processor special features

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Server Management Software	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75054

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Number of redundant power supplies supported	2
Number of main power supplies	1
Power supply input frequency	47 - 63 Hz
Power consumption (typical)	450 W

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Specification	Value
Certification	CB, RoHS, WEEE

Weight & dimensions

Specification	Value
Width	177 mm
Depth	560 mm
Height	455 mm
Weight	15 kg

Other features

Specification	Value
iSCSI support	Yes
