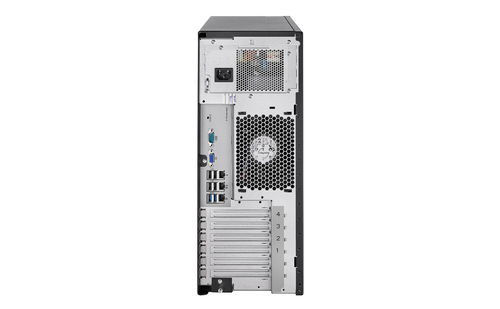

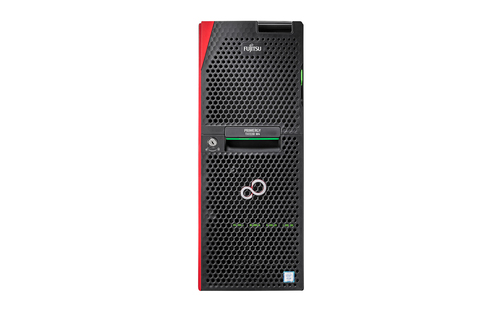

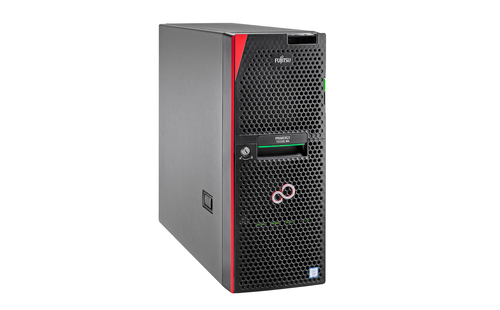

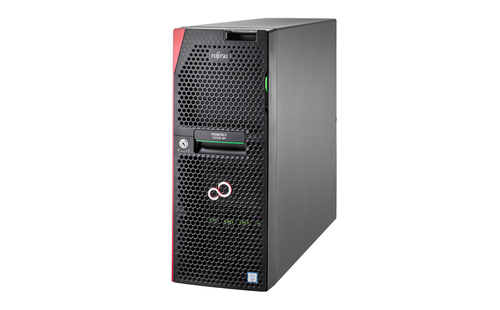

PRIMERGY TX1330M4 server
0 GB Tower Intel Xeon E E-2176G 3.7 GHz 16 GB DDR4-SDRAM 450 W
Model TX1330M4Part no. VFY:T1334SC170INEAN 4059595886274
102 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage0 GB
- ColourBlack
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 0 GB
- Colour
- Black
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- Fujitsu
- Category
- Server
- Model
- TX1330M4
- Part number
- VFY:T1334SC170IN
- EAN / UPC
- 4059595886274, 4063872297011
- Also known as
- Fujitsu PRIMERGY TX1330M4 server 0 GB Tower Intel Xeon E E-2176G 3.7 GHz 16 GB DDR4-SDRAM 450 W
Specifications
102 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2176G |
| Processor frequency | 3.7 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | DMI3 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor code | SR3WS |
| Processor codename | Coffee Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 12 |
| Scalability | 1S |
| Stepping | U0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Tjunction | 100 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory slots | 4 |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E96 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Hyper-V Server 2012 R2 Microsoft Hyper-V Server 2016 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2016 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Server 20 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 134860 |
Power
| Specification | Value |
|---|---|
| Power supply | 450 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, RoHS, WEEE, GS, CE, CSA us, ULc/us, FCC Class A, VCCI:V3 Class A + JIS 61000-3-2, GOST-R, KC, CCC, C-Tick, BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 560 mm |
| Height | 455 mm |
Other features
| Specification | Value |
|---|---|
| iSCSI support | Yes |
