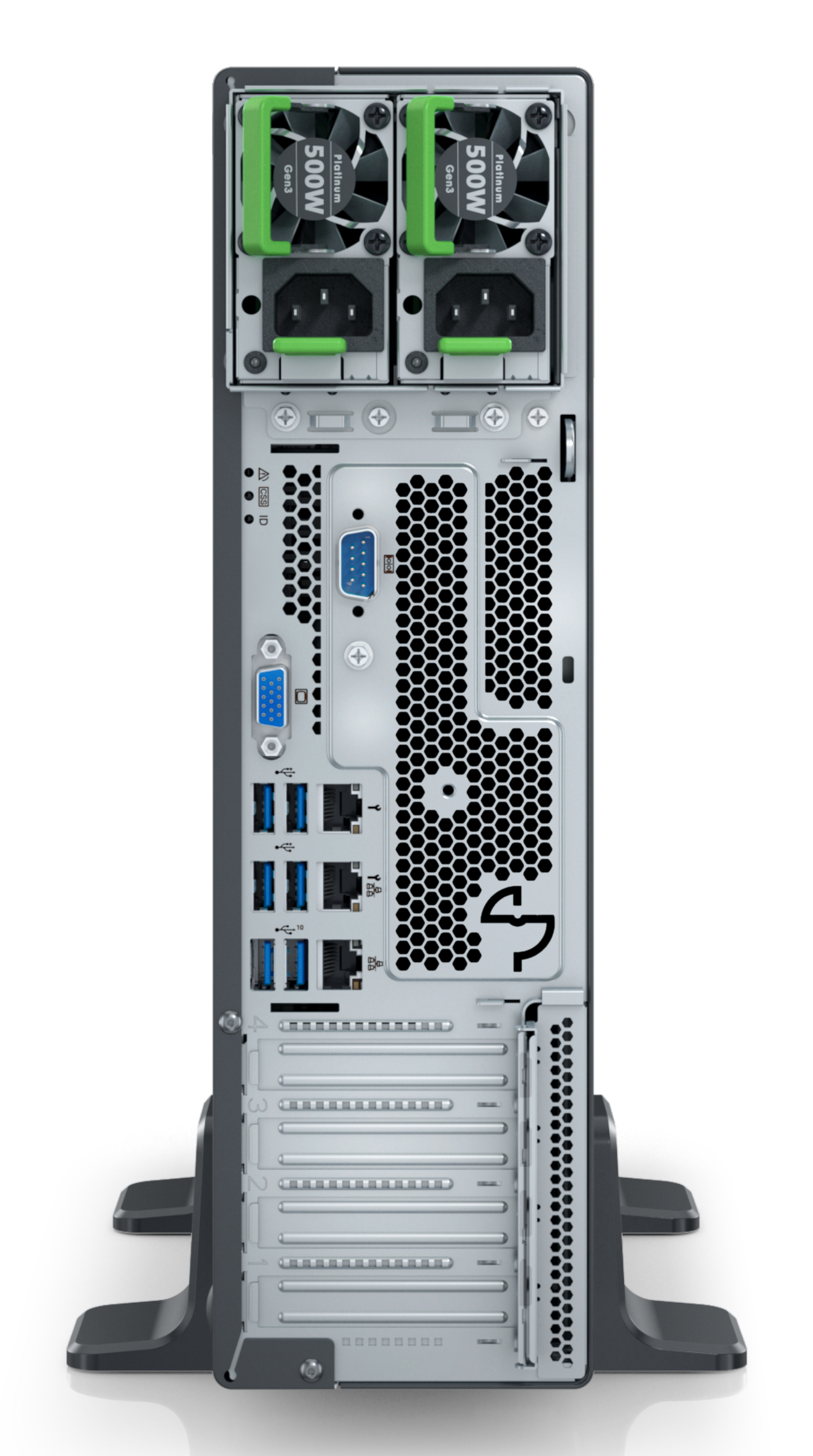

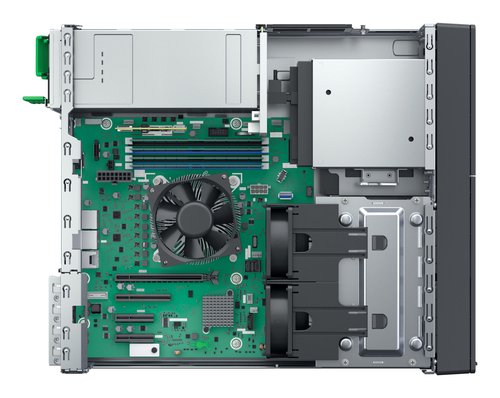

TX1320 M6
Model TX1320 M6Part no. VFY:T1326SC042INEAN 4066733142239
32 specifications
- ProcessorIntel® Xeon®
- Memory32 GB
- OSNo
- Weight11.4 kg
- ColourBlack, Red
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon®
- Memory
- 32 GB
- OS
- No
- Weight
- 11.4 kg
- Colour
- Black, Red
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- TX1320 M6
- Part numbers
- VFY:T1326SC042IN, VFY:T1326SX263PL, VFY:T1326SX265PL, VFY:T1326SX282PL, VFY:T1326SC169IN, VFY:T1326SC082IN +2 more
- EAN / UPC
- 4066733142239, 4066733149467, 4066733149450, 4066733512162 +1 more
- Also known as
- Fujitsu PRIMERGY TX1320 M6 server Ultra Micro Tower Intel® Xeon® 6369P 3.3 GHz 32 GB DDR5-SDRAM 500 W
Specifications
32 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 6369P |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 5.7 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor cache | 24 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Ultra Micro Tower |
| Product colour | Black, Red |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 8 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 193 mm |
| Depth | 400 mm |
| Height | 360 mm |
| Weight | 11.4 kg |
