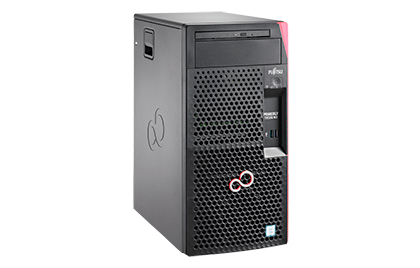

Fujitsu TX1310 M3
Model TX1310 M3Part no. VFY:T1313SX200PLEAN 4058154215531
102 specifications
- ProcessorIntel® Xeon® E3 V3 Family
- Memory16 GB
- Storage2 TB
- OSUnix
- Weight14 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E3 V3 Family
- Memory
- 16 GB
- Storage
- 2 TB
- OS
- Unix
- Weight
- 14 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- TX1310 M3
- Part numbers
- VFY:T1313SX200PL, VFY:T1313SX190PL, VFY:T1313SX220GB, VFY:T1313SC310IN, VFY:T1313SX240NL, VFY:T1311SX110CH +21 more
- EAN / UPC
- 4058154215531, 4063872299978, 4057185857543, 4057185856454 +19 more
- Also known as
- Fujitsu PRIMERGY TX1310 M3 server 2 TB Tower Intel® Xeon® E3 V3 Family E3-1226V3 3.3 GHz 16 GB DDR4-SDRAM 250 W Unix
Specifications
102 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V3 Family |
| Processor model | E3-1226V3 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Memory channels supported by processor | Dual |
| Thermal Design Power (TDP) | 84 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI2 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v3 |
| Processor socket | LGA 1150 (Socket H3) |
| Processor threads | 4 |
| Scalability | 1S |
| Stepping | C0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013D |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Intel® HD Graphics P4600 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| Number of execution units | 20 |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| DisplayPorts quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Unix |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 80917 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 250 W |
| Power supply input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 305 mm |
| Height | 375 mm |
| Weight | 14 kg |
