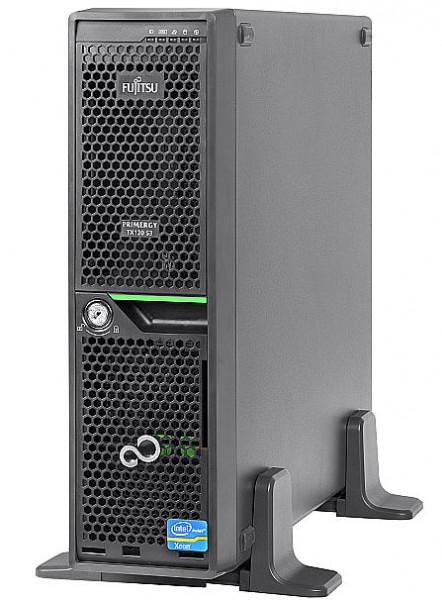

Fujitsu TX120 S3p

Model TX120 S3pPart no. VFY:T1203SXG10IN/M5EAN 4053026528450

124 specifications

ProcessorIntel® Xeon® E3 V2 Family
Memory8 GB
Storage1 TB
Noise23 dB
OSNo
Weight10 kg

See all specifications

Overview

Processor: Intel® Xeon® E3 V2 Family
Memory: 8 GB
Storage: 1 TB
Noise: 23 dB
OS: No
Weight: 10 kg

Brand: Fujitsu
Category: Server
Model: TX120 S3p
Part numbers: VFY:T1203SXG10IN/M5, VFY:T1203SXG10IN/M6, VFY:T1203SX050IT, VFY:T1203SX040IT, VFY:T1203SX070IT, VFY:T1203SX080IT +34 more
EAN / UPC: 4053026528450, 4053026529020, 4053026529037, 4053026575737 +21 more
Also known as: Fujitsu PRIMERGY TX120 S3p server 1 TB Ultra Micro Tower Intel® Xeon® E3 V2 Family E3-1220V2 3.1 GHz 8 GB DDR3-SDRAM

Specifications

124 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1220V2
Processor frequency	3.1 GHz
Processor boost frequency	3.5 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C202
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	69 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	31
Compatible processor series	Intel® Celeron®, Intel® Pentium®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of SMP processors	1
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
Processor code	SR0PH
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v2
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Stepping	E1
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Buffered memory type	Unregistered (unbuffered)
ECC	Yes
Memory clock speed	1600 MHz
Memory layout (slots x size)	2 x 4 GB
Memory slots	4x DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Number of HDDs installed	2
HDD capacity	500 GB
HDD interface	Serial ATA
HDD size	3.5"
Number of HDDs supported	4
Supported HDD sizes	2.5,3.5"
RAID support	Yes
Hot-swap	No
Optical drive type	DVD-RW

Graphics

Specification	Value
On-board graphics card model	Not available

Network

Specification	Value
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	10
PS/2 ports quantity	0
Ports quantity	15
S/PDIF out port	No
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x4 slots	1
PCI Express x16 slots	1
PCI Express slots version	3.0
PCI slots	1

Design

Specification	Value
Chassis type	Ultra Micro Tower
Rack mounting	Yes

Performance

Specification	Value
Noise level	23 dB

Software

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2012 Standard

Processor special features

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	65734

Power

Specification	Value
Redundant power supply (RPS) support	No
Number of power supply units	0
Power requirements	100-240 V, 47-63 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Specification	Value
Certification	CE Cl.A, CSA us, ULc/us, FCC Cl.A, CB, RoHS, WEEE, KC, CCC.

Weight & dimensions

Specification	Value
Width	98 mm
Depth	399 mm
Height	340 mm
Weight	10 kg

Packaging content

Specification	Value
Cables included	AC

Other features

Specification	Value
Dimensions (WxDxH)	98 x 399 x 340 mm
Ventilation fan(s)	3
