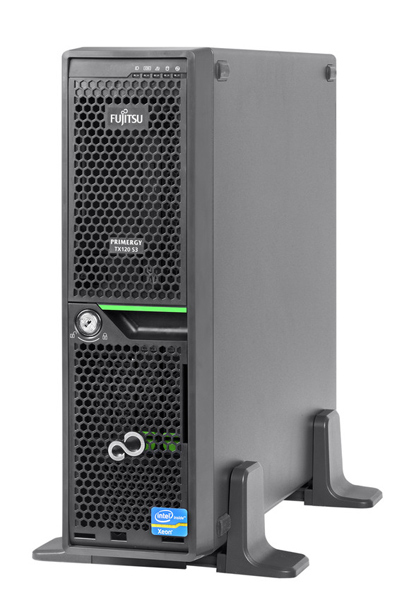

Fujitsu TX120 S3 + Windows Server 2008 R2 Enterprise ROK (SP1)
Model TX120 S3 + Windows Server 2008 R2 Enterprise ROK (SP1)Part no. VFY:T1203SC010IN + S26361-F2567-L321
122 specifications
- ProcessorIntel® Xeon® E3 Family
- Memory4 GB
- Storage1 TB
- Noise35 dB
- Weight10 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E3 Family
- Memory
- 4 GB
- Storage
- 1 TB
- Noise
- 35 dB
- Weight
- 10 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- TX120 S3 + Windows Server 2008 R2 Enterprise ROK (SP1)
- Part numbers
- VFY:T1203SC010IN + S26361-F2567-L321, LKN:T1203S0004DE + S26361-F2567-L321
- Also known as
- Fujitsu PRIMERGY TX120 S3 + Windows 2008 R2 Enterprise ROK (SP1) server 1 TB Tower Intel® Xeon® E3 Family E3-1220 3.1 GHz 4 GB DDR3-SDRAM 250 W
Specifications
122 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1220 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C202 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 31 |
| Compatible processor series | Intel® Pentium® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 20 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 4 |
| Supported instruction sets | AVX |
| Tcase | 69.1 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Maximum internal memory | 32768 MB |
| Memory clock speed | 1333 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Performance
| Specification | Value |
|---|---|
| Noise level | 35 dB |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Hyper-V Server 2008 R2 Windows Server 2008 R2 Datacenter Windows Server 2008 R2 Enterprise Windows Server 2008 R2 Standard Windows Server 2008 R2 Foundation Windows Web Server 2008 R2 Windows Small Business Server 2011 Prem Add-On Windows Small Business Server Standard 2011 Windows Server 2008 Datac |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 52269 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power requirements | 100 - 240V |
| Power supply | 250 W |
| Power supply input frequency | 47 - 63 Hz |
| Power consumption (typical) | 147 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | CE, FCC, CB, RoHS, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 98 mm |
| Depth | 399 mm |
| Height | 340 mm |
| Weight | 10 kg |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1 Gbit/s |
| Dimensions (WxDxH) | 98 x 399 x 340 mm |
| Mac compatibility | No |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Ventilation fan(s) | 3 |
| DVD interface type | SATA |
