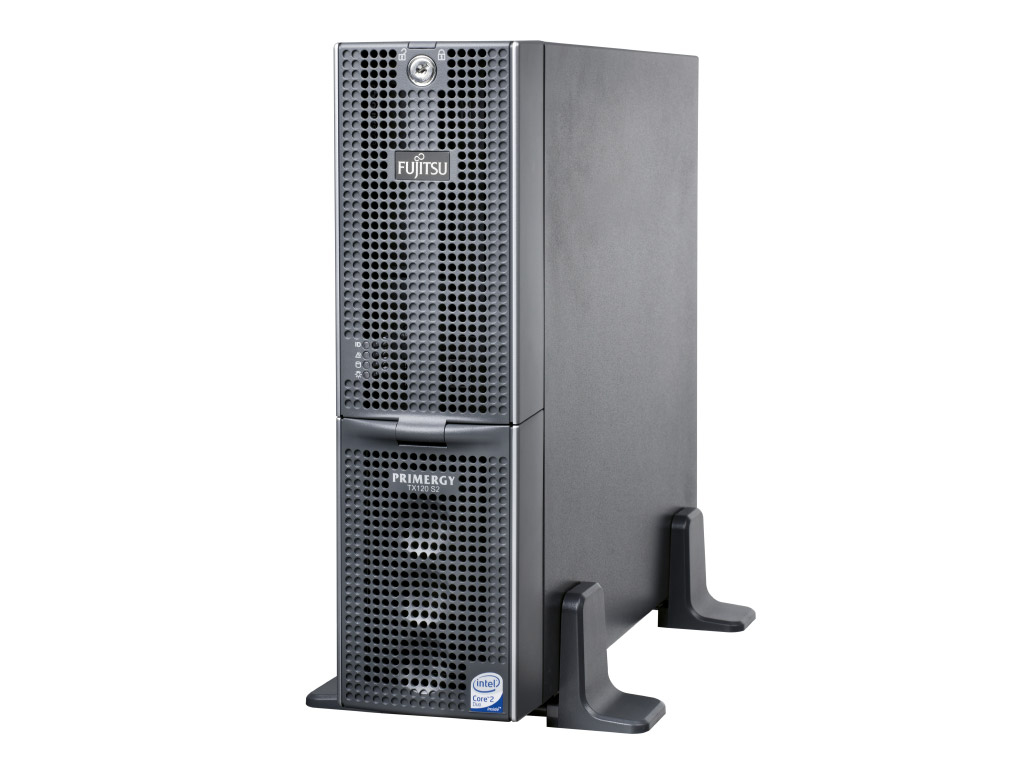

Fujitsu TX120 S2
Model TX120 S2Part no. VFY:T1202SF020DEEAN 4049699466700
92 specifications
- ProcessorIntel® Core™2 Duo
- Memory4 GB
- Storage0 GB
- OSNo
- Weight10 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 4 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 10 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- TX120 S2
- Part numbers
- VFY:T1202SF020DE, VFY:T1202SF020GB, VFY:T1202SF010DE S26361-F2565-L351, VFY:T1202SF010DE S26361-F2565-L361, VFY:T1202SF010DE S26361-F2567-L306, VFY:T1202SF010DE S26361-F2567-L320 +6 more
- EAN / UPC
- 4049699466700
- Also known as
- Fujitsu PRIMERGY TX120 S2 server 0 GB Tower Intel® Core™2 Duo P8400 2.26 GHz 4 GB DDR2-SDRAM
Specifications
92 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | P8400 |
| Processor frequency | 2.26 GHz |
| Processor cores | 2 |
| Processor cache | 3 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 25 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 8.5 |
| ECC supported by processor | No |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| Processor code | SL3BU |
| Processor codename | Penryn |
| Processor front side bus | 1066 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 35 x 35 mm |
| Processor series | Intel Core 2 Duo P8000 Series |
| Processor socket | Socket 478 |
| Processor threads | 2 |
| Stepping | M0 |
| Thermal Monitoring Technologies | No |
| Tjunction | 105 °C |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory clock speed | 667 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD size | 2.5" |
| RAID support | Yes |
| RAID levels | 10 |
| Hot-swap | Yes |
| Internal drive bays | 2x 2.5" SAS/SATA |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 8 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 35569 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power requirements | 100 - 240 V, 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Relative humidity | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 399 mm |
| Height | 340 mm |
| Weight | 10 kg |
