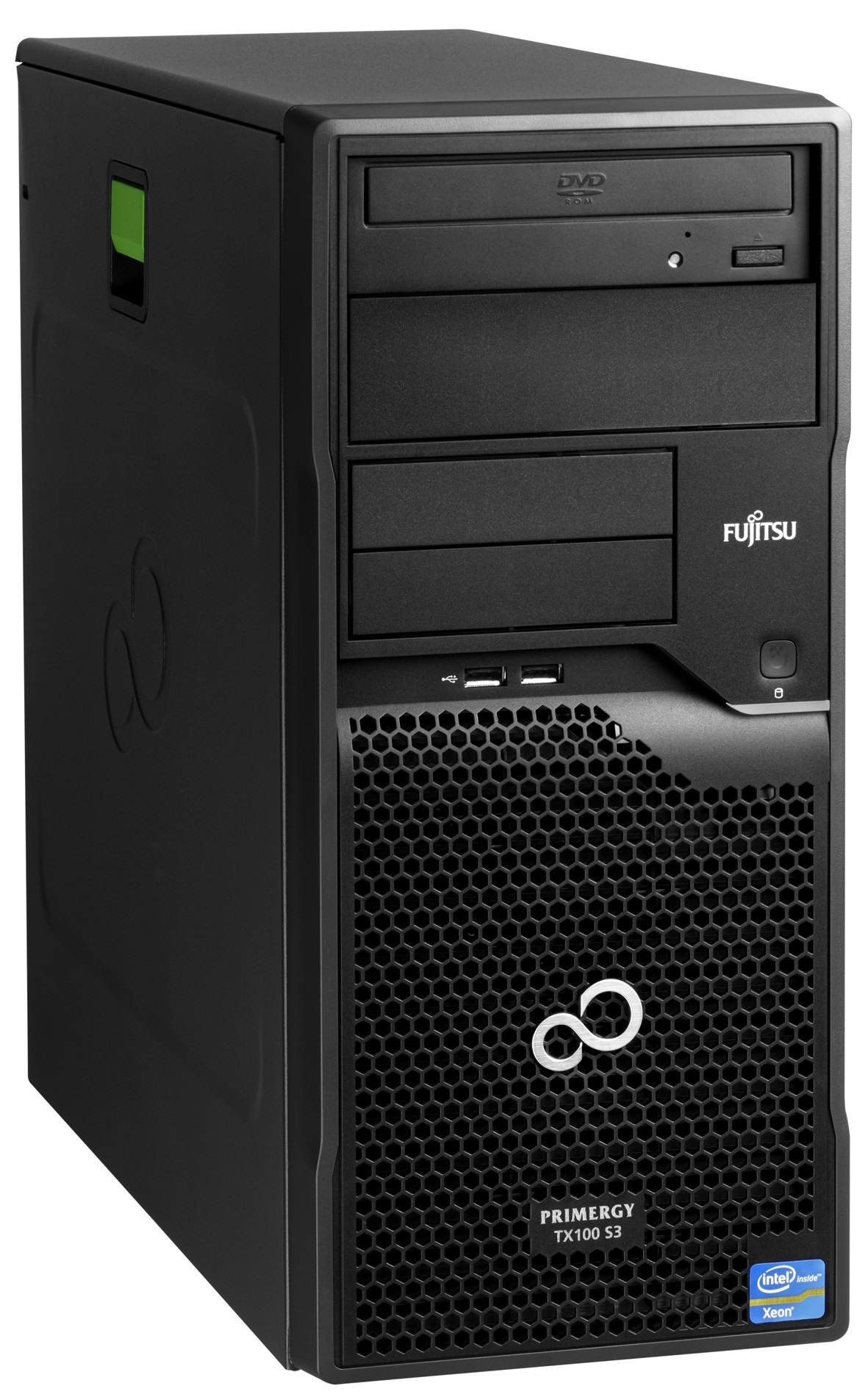

Fujitsu TX100 S3p + L22T-6

Model TX100 S3p + L22T-6Part no. VFY:T1003SC070IN/1EAN 4053162421929

112 specifications

Overview

Brand: Fujitsu
Category: Server
Model: TX100 S3p + L22T-6
Part numbers: VFY:T1003SC070IN/1, VFY:T1003SC150IN/1, VFY:T1003SC140IN/1
EAN / UPC: 4053162421929, 4053162421912, 4053162421936
Also known as: Fujitsu PRIMERGY TX100 S3p + L22T-6 server 1 TB Intel® Xeon® E3 V2 Family E3-1220V2 3.1 GHz 8 GB DDR3-SDRAM 250 W

112 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1220V2
Processor frequency	3.1 GHz
Processor boost frequency	3.5 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C202
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	69 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	31
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
Processor code	SR0PH
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v2
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Stepping	E1
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
On-board graphics card model	Not available

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
RS-232 ports	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Operating system installed	No

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	65734

Specification	Value
Redundant power supply (RPS) support	No
Power supply	250 W
Number of main power supplies	1

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Display	LED
Display number of colours	16.78 million colours
Display resolution	1920 x 1080 pixels
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
