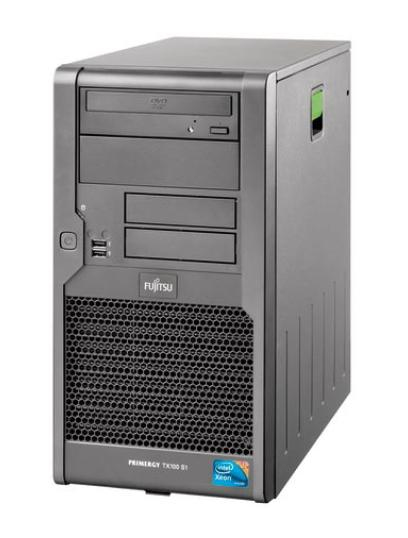

Fujitsu TX100 S1
Model TX100 S1Part no. VFY:T1001SX310DE?WIN SERV STDEAN 4049699280177
104 specifications
- ProcessorIntel® Xeon®
- Memory2 GB
- Storage1 TB
- Weight12 kg
- Processor manufacturerIntel
- Network readyYes
Overview
- Processor
- Intel® Xeon®
- Memory
- 2 GB
- Storage
- 1 TB
- Weight
- 12 kg
- Processor manufacturer
- Intel
- Network ready
- Yes
- Brand
- Fujitsu
- Category
- Server
- Model
- TX100 S1
- Part numbers
- VFY:T1001SX310DE?WIN SERV STD, VFY:T1001SX310DESET, VFY:T1001SX440IT, VFY:T1001SX480IN, VFY:T1001SF020NL, VFY:T1001SX310DE/M1 +15 more
- EAN / UPC
- 4049699280177, 404969915083, 4049699150838, 4049699469831 +1 more
- Also known as
- Fujitsu PRIMERGY TX100 S1 server 1 TB Tower Intel® Xeon® E3110 3 GHz 2 GB DDR2-SDRAM 300 W
Specifications
104 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E3110 |
| Processor frequency | 3 GHz |
| Processor cores | 2 |
| Processor cache | 6 MB |
| Motherboard chipset | Intel® 3200 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 9 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| Processor code | SLAPM |
| Processor codename | Wolfdale |
| Processor core voltage (AC) | 1.225 - 0.956 V |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3100 Series |
| Processor socket | LGA 775 (Socket T) |
| Processor system type | Up |
| Processor threads | 2 |
| Stepping | C0 |
| Tcase | 72.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory clock speed | 800 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | No |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008 Microsoft Windows Server 2003 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 34694 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power requirements | 100-240V |
| Power supply | 300 W |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE, FCC, CB, RoHS, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 203 mm |
| Depth | 386 mm |
| Height | 390 mm |
| Weight | 12 kg |
