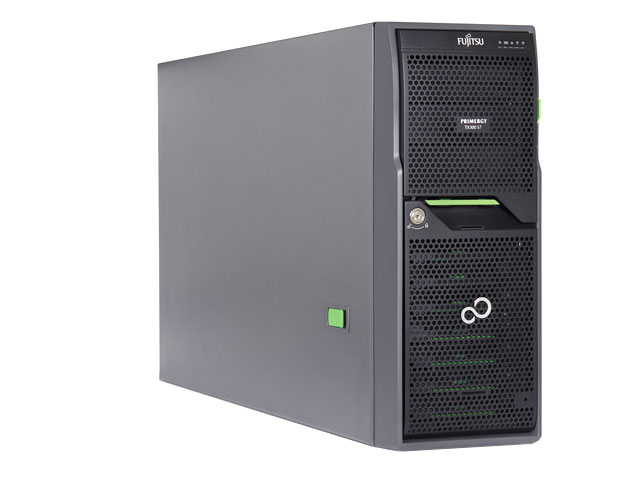

Fujitsu T300 7S
Model T300 7SPart no. VFY:T3007SC020INEAN 4051554413743
126 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- Storage0 GB
- OSNo
- Weight35 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 35 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- T300 7S
- Part number
- VFY:T3007SC020IN
- EAN / UPC
- 4051554413743
- Also known as
- Fujitsu PRIMERGY T300 7S server 0 GB Tower Intel® Xeon® E5 Family E5-2630 2.3 GHz 8 GB DDR3-SDRAM 800 W
Specifications
126 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2630 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 2.8 GHz |
| Processor cores | 6 |
| Processor cache | 15 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 7.2 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 28 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 750 GB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Processor codename | Sandy Bridge EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45.0 mm |
| Processor series | Intel Xeon E5-2600 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 12 |
| Scalability | 2S |
| Stepping | C2 |
| Supported instruction sets | AVX |
| Tcase | 77.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 768 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 5, 6 |
| Hot-swap | Yes |
| Optical drive type | DVD Super Multi |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 3 |
| PCI Express x8 slots | 5 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Hyper-V Server 2008 R2 Windows Server 2008 R2 Datacenter Windows Server 2008 R2 Enterprise Windows Server 2008 R2 Standard Windows Web Server 2008 R2 Windows HPC Server 2008 R2 Suite Windows Small Business Server 2011 Premium Add-On Windows Small Business Server Standard 2011 Windows Server 2008 Dat |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64593 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Number of power supply units | 2 |
| Power requirements | 100-240V |
| Power supply | 800 W |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS, WEEE, CCCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 777 mm |
| Height | 456 mm |
| Weight | 35 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 177 x 777 x 456 mm |
| Graphics card | Quadro NVS 300 |
| Graphics card family | NVIDIA |
| Number of products included | 1 pc(s) |
| Ventilation fan(s) | 6 |
