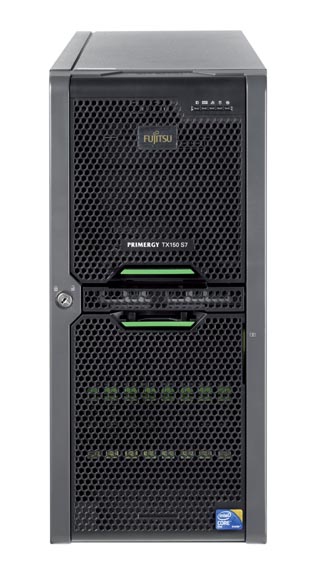

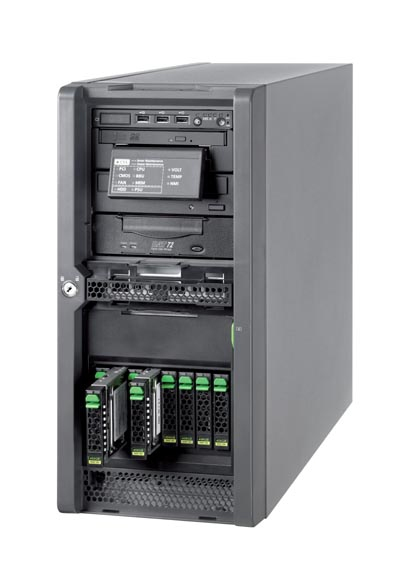

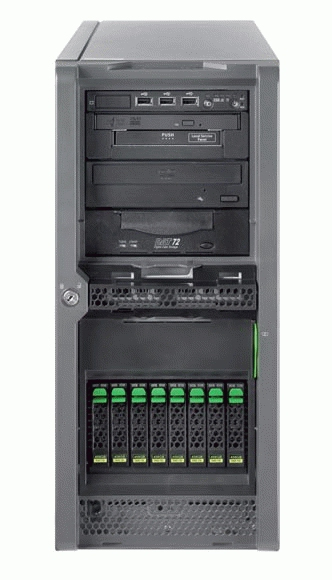

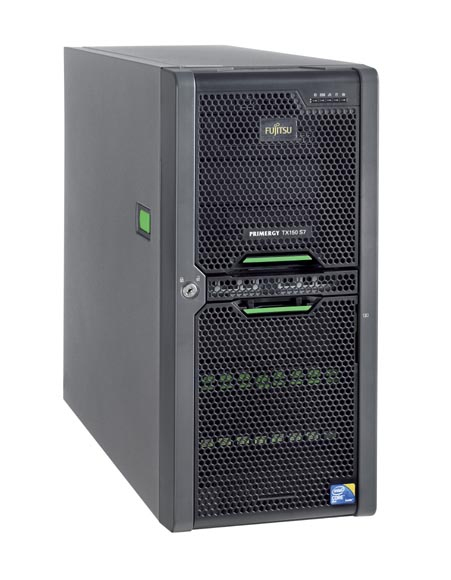

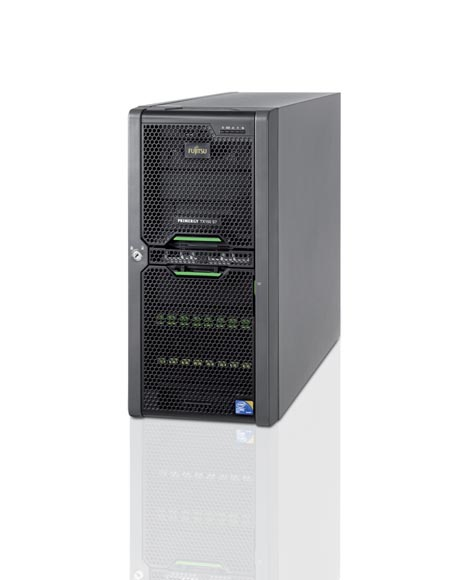

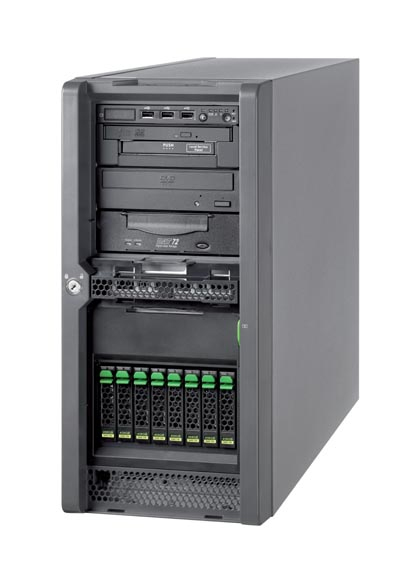

Fujitsu S7 Xeon X3430
Model S7 Xeon X3430Part no. VFY:T1507SF020FREAN 4049699419560
119 specifications
- ProcessorIntel® Xeon® 3000 Sequence
- Memory4 GB
- Storage500 GB
- Noise33 dB
- Weight21 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 4 GB
- Storage
- 500 GB
- Noise
- 33 dB
- Weight
- 21 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- S7 Xeon X3430
- Part number
- VFY:T1507SF020FR
- EAN / UPC
- 4049699419560
- Also known as
- Fujitsu PRIMERGY S7 Xeon X3430 server 500 GB Tower (5U) Intel® Xeon® 3000 Sequence 2.4 GHz 4 GB DDR3-SDRAM 350 W
Specifications
119 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | X3430 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 2.8 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® 3420 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 2.5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 18 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of Processing Die Transistors | 774 M |
| PCI Express configurations | 1x16, 2x8, 4x4 |
| Physical Address Extension (PAE) | 36 bit |
| Processing Die size | 296 mm² |
| Processor code | SLBLJ |
| Processor codename | Lynnfield |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3400 Series |
| Processor socket | LGA 1156 (Socket H) |
| Processor threads | 4 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 72.7 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1066 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 6x DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Number of HDDs installed | 2 |
| HDD capacity | 250 GB |
| HDD size | 2.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | Yes |
| Optical drive type | DVD Super Multi |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |

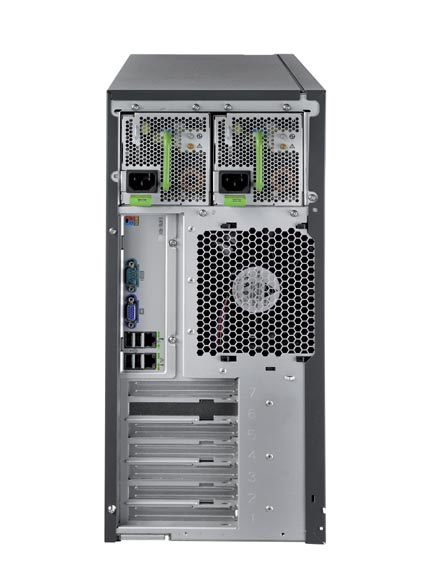

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (5U) |
Performance
| Specification | Value |
|---|---|
| Remote administration | iRMC S2 |
| Noise level | 33 dB |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2008/2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux. |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 42927 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC |
| Number of power supply units | 1 |
| Power requirements | 100 - 240 V, 47 - 63 Hz |
| Power supply | 350 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | TÜV GS, 2004/108/EC, EN 300386, EN 50371, EN 55022, EN 55024, EN 60950 - 1, EN 61000-3-2 JEIDA EN 61000-3-3, ROHS, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 584 mm |
| Height | 444 mm |
| Weight | 21 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 205 x 584 x 444 mm |
| Ventilation fan(s) | 1 |
| Standard fans | 1 |
| Storage drive type | 4x 3.5" SAS/SATA, 8x 2.5" SAS/SATA/SSD |
