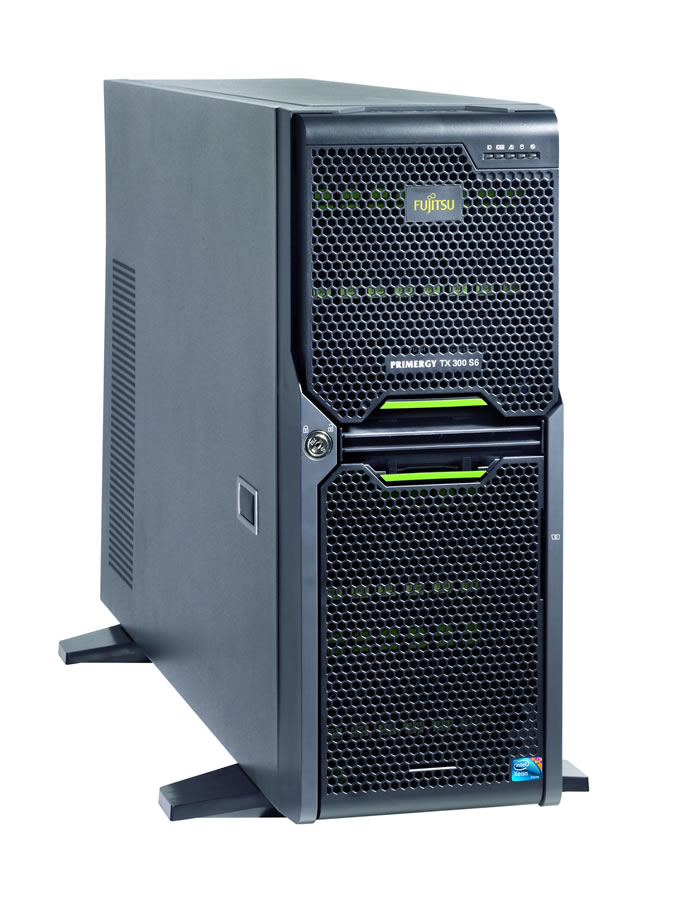

Fujitsu S6 Xeon E5620
Model S6 Xeon E5620Part no. VFY:T3006SF010FREAN 4049699344992
114 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory6 GB
- Storage0 GB
- Noise42 dB
- OSNo
- Weight40 kg
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 6 GB
- Storage
- 0 GB
- Noise
- 42 dB
- OS
- No
- Weight
- 40 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- S6 Xeon E5620
- Part numbers
- VFY:T3006SF010FR, VFY:T3006SF020DESET, VFY:T2006SF030FR
- EAN / UPC
- 4049699344992, 4049699412608
- Also known as
- Fujitsu PRIMERGY S6 Xeon E5620 server 0 GB Tower (4U) Intel® Xeon® 5000 Sequence 2.4 GHz 6 GB DDR3-SDRAM 800 W
Specifications
114 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5620 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5500 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5.86 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 18 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3 800/1066 |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Processor code | SLBV4 |
| Processor codename | Westmere EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 X 45 mm |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 77.6 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 3 x 2 GB |
| Memory slots | 18x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 12 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD size | 3.5" |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| RAID levels | 5, 6 |
| Hot-swap | Yes |
| Optical drive type | DVD Super Multi |
Network
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP |
| Ethernet LAN | Yes |
| LAN controller | Intel® 82575EB |
| Networking features | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 5 |
| PCI Express x8 slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
Performance
| Specification | Value |
|---|---|
| Noise level | 42 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2003 R2/2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware vSphere 4.1, VMware Infrastructure, Citrix XenServer. |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 47925 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power requirements | 100 - 240 V, 47 - 63 Hz |
| Power supply | 800 W |
| Power consumption (typical) | 560 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | GS, CE, CSA, FCC, CB, RoHS, WEEE, VCCI + JIS, 61000-3-2, C-Tick, CNS 13438. |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 745 mm |
| Height | 466 mm |
| Weight | 40 kg |
Other features
| Specification | Value |
|---|---|
| Disk array controller | ICH10B |
| Dimensions (WxDxH) | 286 x 745 x 466 mm |
| iSCSI support | Yes |
