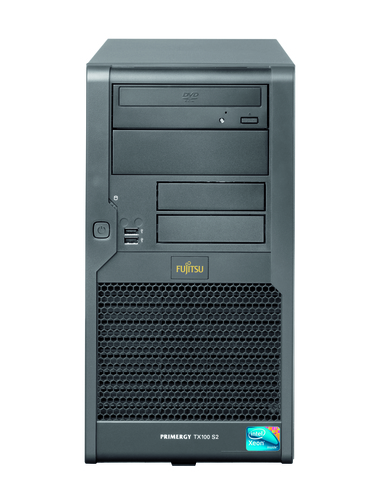

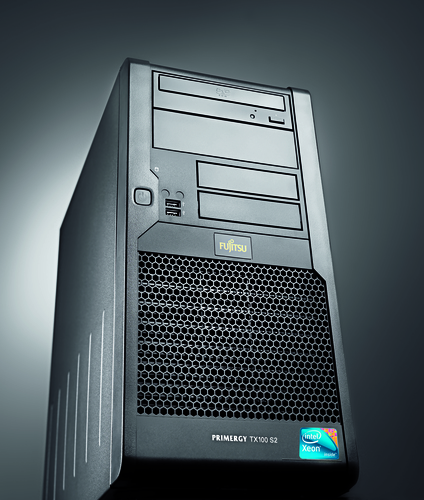

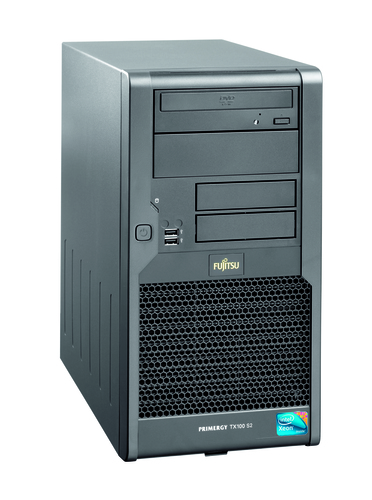

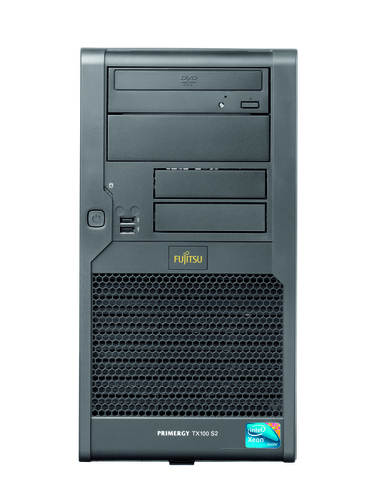

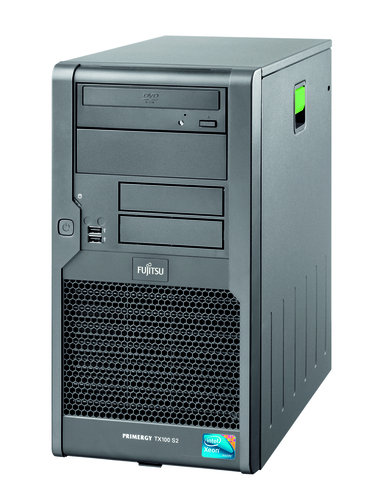

Fujitsu PRIMERGY S2 server

250 GB Mini Tower Intel® Pentium® G6950 2.8 GHz 2 GB DDR3-SDRAM 250 W

Model S2Part no. VFY:T1202SF020NLEAN 4049699351150

118 specifications

ProcessorIntel® Pentium®
Memory2 GB
Storage250 GB
Noise24 dB
Weight12 kg
Processor manufacturerIntel

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 2 GB
Storage: 250 GB
Noise: 24 dB
Weight: 12 kg
Processor manufacturer: Intel

Brand: Fujitsu
Category: Server
Model: S2
Part numbers: VFY:T1202SF020NL, VFY:M1302SC040IN, VFY:T1002SC010IN, VFY:T1002SX150GB
EAN / UPC: 4049699351150, 4049699396670, 4051554332525
Also known as: Fujitsu PRIMERGY S2 server 250 GB Mini Tower Intel® Pentium® G6950 2.8 GHz 2 GB DDR3-SDRAM 250 W

Specifications

118 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G6950
Processor frequency	2.8 GHz
Processor cores	2
Processor cache	3 MB
Motherboard chipset	Intel® 3420
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	73 W
Processor cache type	Smart Cache
System bus rate	2.5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	21
ECC supported by processor	No
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	45 nm
Idle States	Yes
Maximum internal memory supported by processor	16 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	17 GB/s
Memory types supported by processor	DDR3 1066
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
Physical Address Extension (PAE)	36 bit
Processing Die size	81 mm²
Processor codename	Clarkdale
Processor front side bus	1066 MHz
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Pentium G6000 Series for Desktop
Processor socket	LGA 1156 (Socket H)
Processor threads	2
Tcase	72.6 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory clock speed	1333 MHz
Memory slots	4
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	250 GB
Number of HDDs installed	1
HDD capacity	250 GB
HDD interface	Serial ATA
HDD size	3.5"
Number of HDDs supported	2
RAID support	Yes
RAID levels	1, 5, 6, 10, 50, 60
Hot-swap	No
Drive device, transfer rate	384 MB/s
Optical drive type	DVD Super Multi

Graphics

Specification	Value
On-board graphics card	Yes
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	533 MHz

Network

Specification	Value
Ethernet LAN	Yes
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	11
PS/2 ports quantity	0
Parallel ports quantity	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x4 slots	1
PCI Express x8 slots	2
PCI Express slots version	2.0
PCI slots	1

Design

Specification	Value
Chassis type	Mini Tower

Performance

Specification	Value
Noise level	24 dB

Software

Specification	Value
Compatible operating systems	Microsoft Windows Server 2008 R2/Windows Server 2008/Windows Server 2003 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux

Processor special features

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	43230

Power

Specification	Value
Redundant power supply (RPS) support	No
Power supply type	AC
Number of power supply units	1
Power requirements	AC 100-127V/200-240V@47-63Hz
Power supply	250 W

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	GS, CE Class A, CSAc/us, ULc/us, FCC A, CB, RoHS, WEEE

Weight & dimensions

Specification	Value
Width	203 mm
Depth	386 mm
Height	390 mm
Weight	12 kg

Other features

Specification	Value
Disk array controller	RAID 5/6
CD read speed	48x
Mac compatibility	No
DVD interface type	SATA
DVD read speed	16x
