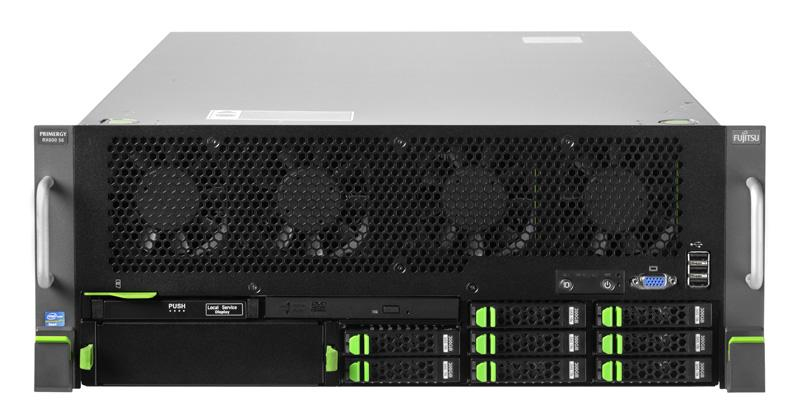

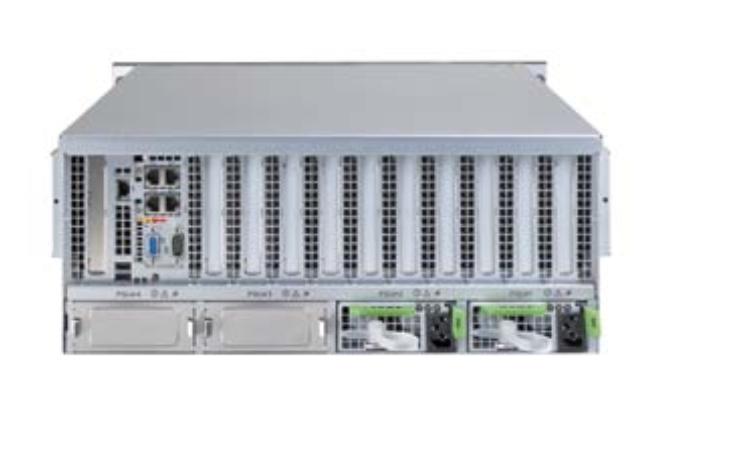

Fujitsu PRIMERGY RX600S6 server

600 GB Rack (4U) Intel® Xeon® E7 Family E7-4820 2 GHz 16 GB DDR3-SDRAM

Model RX600S6Part no. LKN:R6006S0003FR

102 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX600S6
Part number: LKN:R6006S0003FR
Also known as: Fujitsu PRIMERGY RX600S6 server 600 GB Rack (4U) Intel® Xeon® E7 Family E7-4820 2 GHz 16 GB DDR3-SDRAM

102 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E7 Family
Processor model	E7-4820
Processor frequency	2 GHz
Processor boost frequency	2.27 GHz
Processor cores	8
Processor cache	18 MB
Motherboard chipset	Intel® 7500
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	105 W
Processor cache type	Smart Cache
System bus rate	5.86 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	15
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Maximum internal memory supported by processor	2 TB
Memory clock speeds supported by processor	800,978,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Processor code	SLC3G
Processor codename	Westmere EX
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	49.17 x 56.47 mm
Processor series	Intel Xeon E7-4800
Processor socket	LGA 1567 (Socket LS)
Processor threads	16
Scalability	S4S
Stepping	A2
Supported instruction sets	SSE4.1, SSE4.2
Tcase	64 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
Intelligent Platform Management Interface (IPMI) support	Yes

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
LAN controller	Intel® 82576

Specification	Value
Chassis type	Rack (4U)

Specification	Value
Operating system installed	No
Compatible operating systems	Hyper-V Server 2012 Windows Server 2012 Datacenter Windows Server 2012 Standard Hyper-V™ Server 2008 R2 Windows Server 2008 R2 Datacenter Windows Server 2008 R2 Enterprise Windows Server 2008 R2 Standard Windows Server 2008 Datacenter Windows Server 2008 Enterprise Windows Server 2008 Standard VMwar

Specification	Value
CPU configuration (max)	4
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53675

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Certification	GS, CE, CSAc/us, FCC, CB, RoHS, WEEE, VCCI, BSMI
