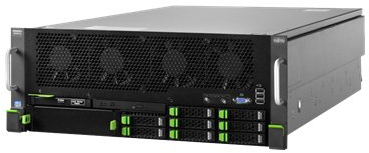

Fujitsu RX600 S6

Model RX600 S6Part no. VFY:R6006SC010IN

112 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX600 S6
Part numbers: VFY:R6006SC010IN, VFY:R6006SC020IN
Also known as: Fujitsu PRIMERGY RX600 S6 server 0 GB Rack (4U) Intel® Xeon® E7 Family E7-4820 2 GHz 16 GB DDR3-SDRAM 850 W

112 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E7 Family
Processor model	E7-4820
Processor frequency	2 GHz
Processor boost frequency	2.27 GHz
Processor cores	8
Processor cache	18 MB
Memory channels supported by processor	Quad
Number of processors installed	2
Thermal Design Power (TDP)	105 W
Processor cache type	Smart Cache
System bus rate	5.86 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	15
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Maximum internal memory supported by processor	2 TB
Memory clock speeds supported by processor	800,978,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Processor code	SLC3G
Processor codename	Westmere EX
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	49.17 x 56.47 mm
Processor series	Intel Xeon E7-4800
Processor socket	LGA 1567 (Socket LS)
Processor threads	16
Scalability	S4S
Stepping	A2
Supported instruction sets	SSE4.1, SSE4.2
Tcase	64 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Chassis type	Rack (4U)

Specification	Value
Noise level	50 dB

Specification	Value
Compatible operating systems	Microsoft Hyper-V Server 2008 R2 Microsoft Windows Server 2008 R2 Datacenter Microsoft Windows Server 2008 R2 Enterprise Microsoft Windows Server 2008 R2 Standard Microsoft Windows Server 2008 Datacenter Microsoft Windows Server 2008 Enterprise Microsoft Windows Server 2008 Standard VMware vSphere 5

Specification	Value
CPU configuration (max)	4
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53675

Specification	Value
Number of power supply units	2
Power requirements	100 - 240 V
Power supply	850 W
Power supply input frequency	47 - 63 Hz

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	GS, CE A, CSAc/us, FCC A, RoHS, WEEE, VCCI, BSMI

Specification	Value
Data transfer rate	1 Gbit/s
Mac compatibility	No
Supported data transfer rates	10/100/1000 Mbps
