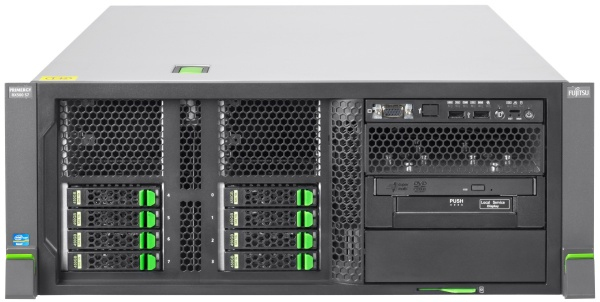

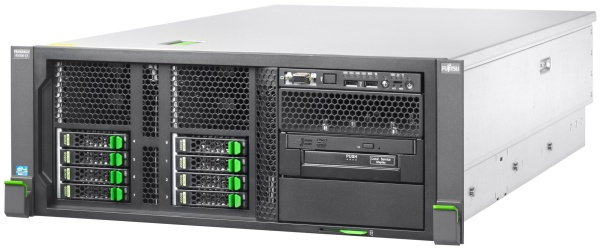

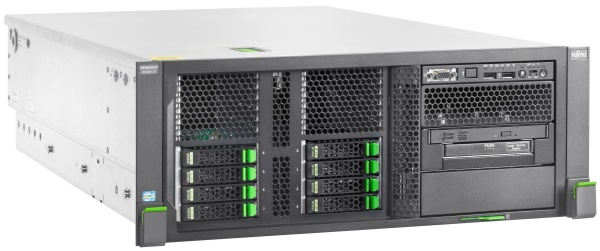

Fujitsu RX500 S7 + Windows Server 2012 Standard, 2 CPU & 2 VM, ROK
Model RX500 S7 + Windows Server 2012 Standard, 2 CPU & 2 VM, ROKPart no. VFY:R5007SC010IN + S26361-F2567-D420
114 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory16 GB
- Storage0 GB
- Noise53 dB
- OSNo
- Weight35 kg
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 16 GB
- Storage
- 0 GB
- Noise
- 53 dB
- OS
- No
- Weight
- 35 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- RX500 S7 + Windows Server 2012 Standard, 2 CPU & 2 VM, ROK
- Part number
- VFY:R5007SC010IN + S26361-F2567-D420
- Also known as
- Fujitsu PRIMERGY RX500 S7 + Windows 2012 Standard, 2 CPU & 2 VM, ROK server 0 GB Rack (4U) Intel® Xeon® E5 Family E5-4620 2.2 GHz 16 GB DDR3-SDRAM 800 W
Specifications
114 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-4620 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 2.6 GHz |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 7.2 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.5 TB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 4 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| Processor code | SR0L4 |
| Processor codename | Sandy Bridge EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45.0 mm |
| Processor series | Intel Xeon E5-4600 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 16 |
| Scalability | S4S |
| Stepping | C2 |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Maximum internal memory | 1572864 MB |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 48 |
| Maximum internal memory | 1.53 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 8 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| Hot-swap | Yes |
| Optical drive type | DVD Super Multi |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Intel® I350 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 7 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 5 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Rack mounting | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 53 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Hyper-V Server 2012 Windows Server 2012 Datacenter Windows Server 2012 Standard Windows Hyper-V Server 2008 R2 Windows Server 2008 R2 Datacenter Windows Server 2008 R2 Enterprise Windows Server 2008 R2 Standard Windows HPC Server 2008 R2 Suite Windows Server 2008 Datacenter Windows Server 20 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 4 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64607 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of main power supplies | 2 |
| Power supply input frequency | 47/63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, CSAc/us, FCC, CB, RoHS, WEEE, VCCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 448 mm |
| Depth | 767.4 mm |
| Height | 176 mm |
| Weight | 35 kg |
