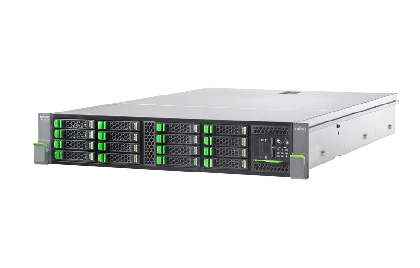

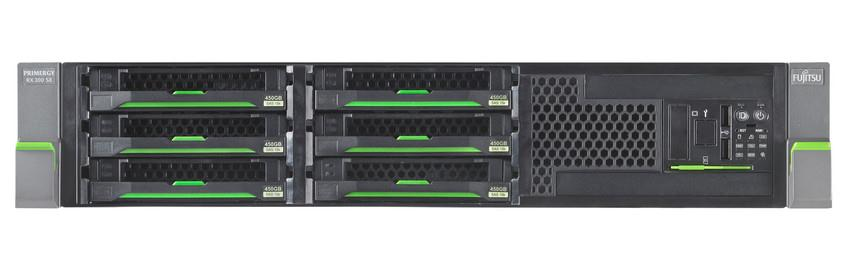

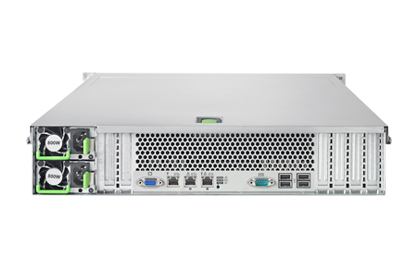

Fujitsu PRIMERGY RX300S8 server

0 GB Rack (2U) Intel® Xeon® E5 Family E5-2609V2 2.5 GHz 4 GB DDR3-SDRAM

Model RX300S8Part no. VFY:R3008SX280ITEAN 4053026650236

115 specifications

ProcessorIntel® Xeon® E5 Family
Memory4 GB
Storage0 GB
OSNo
Processor manufacturerIntel
Cabling technology10/100/1000Base-T(X)

See all specifications

Overview

Processor: Intel® Xeon® E5 Family
Memory: 4 GB
Storage: 0 GB
OS: No
Processor manufacturer: Intel
Cabling technology: 10/100/1000Base-T(X)

Brand: Fujitsu
Category: Server
Model: RX300S8
Part numbers: VFY:R3008SX280IT, VFY:R3008SX290IT, VFY:R3008SX300IT
EAN / UPC: 4053026650236, 4053026650212, 4053026650229
Also known as: Fujitsu PRIMERGY RX300S8 server 0 GB Rack (2U) Intel® Xeon® E5 Family E5-2609V2 2.5 GHz 4 GB DDR3-SDRAM

Specifications

115 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2609V2
Processor frequency	2.5 GHz
Processor boost frequency	2.5 GHz
Processor cores	4
Processor cache	10 MB
Motherboard chipset	Intel C600
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	6.4 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	42.6 GB/s
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Processor codename	Ivy Bridge EP
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v2
Processor socket	LGA 2011 (Socket R)
Processor threads	4
Scalability	2S
Supported instruction sets	AVX
Tcase	71 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
Intelligent Platform Management Interface (IPMI) support	Yes

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory clock speed	1600 MHz
Memory slots	24
Maximum internal memory	1.53 TB

Storage

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
Supported HDD sizes	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 10
Optical drive type	DVD-RW
Supported storage drive interfaces	SAS, Serial ATA III

Network

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel® I350

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
RS-232 ports	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x8 (Gen 3.x) slots	5
PCI Express x16 (Gen 3.x) slots	2
PCI Express slots version	3.0

Design

Specification	Value
Chassis type	Rack (2U)
Rack mounting	Yes

Performance

Specification	Value
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Operating system installed	No

Processor special features

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75787

Power

Specification	Value
Number of main power supplies	1
Power supply input frequency	47 - 63 Hz
Power consumption (typical)	450 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Specification	Value
Certification	CB, RoHS, WEEE

Weight & dimensions

Specification	Value
Width	482.6 mm
Depth	770 mm
Height	86.9 mm

Technical details

Specification	Value
Backplanes support	Yes

Other features

Specification	Value
iSCSI support	Yes
