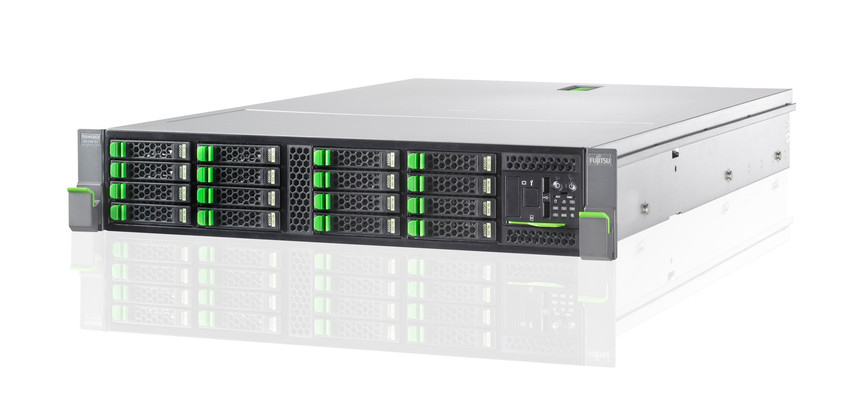

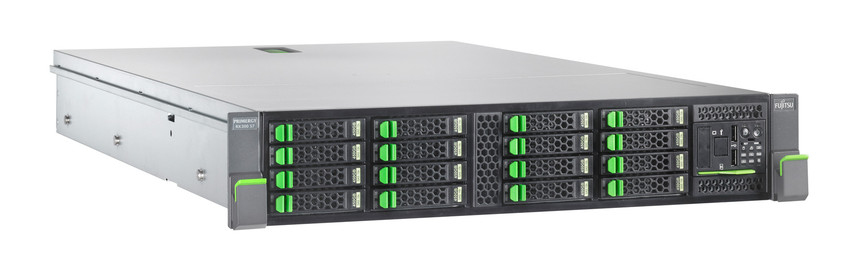

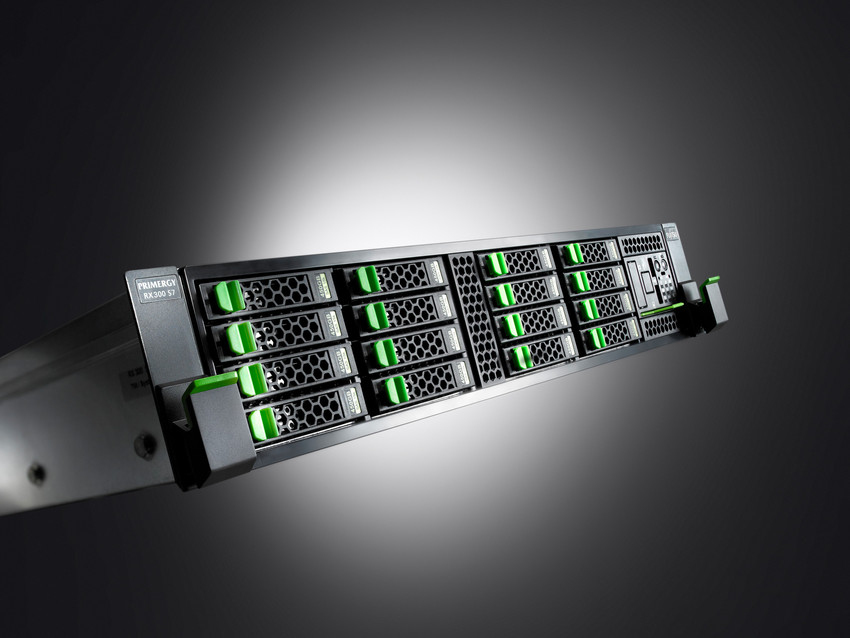

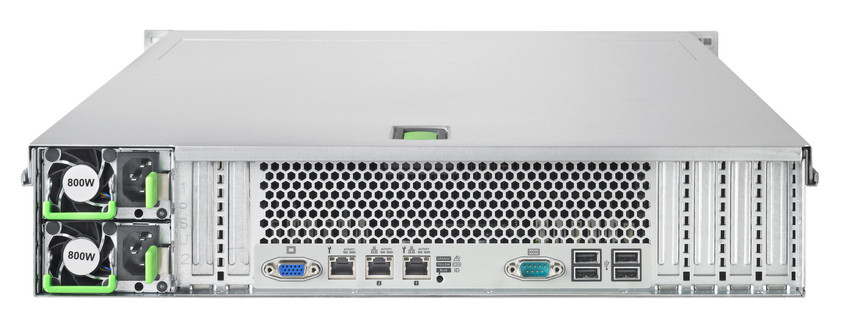

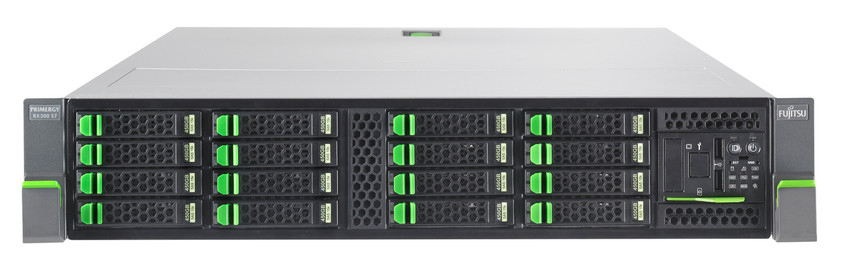

Fujitsu PRIMERGY RX300S7 server
0 GB Rack (2U) Intel® Xeon® E5 Family E5-2620 2 GHz 8 GB DDR3-SDRAM 450 W
Model RX300S7Part no. VFY:R3007SF010NCEAN 4051554433680
134 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- Storage0 GB
- Energy classA
- Weight25 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- Storage
- 0 GB
- Energy class
- A
- Weight
- 25 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- RX300S7
- Part numbers
- VFY:R3007SF010NC, VFY:R3007SF010BE, VFY:R3007SF010CH
- EAN / UPC
- 4051554433680, 4051554435677, 4051554442835
- Also known as
- Fujitsu PRIMERGY RX300S7 server 0 GB Rack (2U) Intel® Xeon® E5 Family E5-2620 2 GHz 8 GB DDR3-SDRAM 450 W
Specifications
134 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor upgrade | 2 |
| Processor model | E5-2620 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.5 GHz |
| Processor cores | 6 |
| Processor cache | 15 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 7.2 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 25 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 750 GB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Processor codename | Sandy Bridge EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45.0 mm |
| Processor series | Intel Xeon E5-2600 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 12 |
| Scalability | 2S |
| Stepping | C2 |
| Supported instruction sets | AVX |
| Tcase | 77.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 768 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| Number of SSDs installed | 0 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 5 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Hyper-V Server 2008 R2, Windows Server 2008 R2, HPC Server 2008 R2 Suite, Windows Small Business Server 2011, Windows Server 2008, Windows Web Server 2008, VMware vSphere 5.0, VMware vSphere 4.1, Novell SUSE Linux Enterprise Server 11, Novell SUSE Linux Enterprise Server 10, Red Hat Enterprise Linux |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64594 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power requirements | 100 - 240 V |
| Power supply | 450 W |
| Power supply input frequency | 47 - 63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 85% |
Certificates
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Certification | GS, CE A, CSAc/us, FCC A, CB, RoHS, WEEE, VCCI, CCC, C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 770 mm |
| Height | 86.9 mm |
| Weight | 25 kg |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Number of processors supported | 2 |
