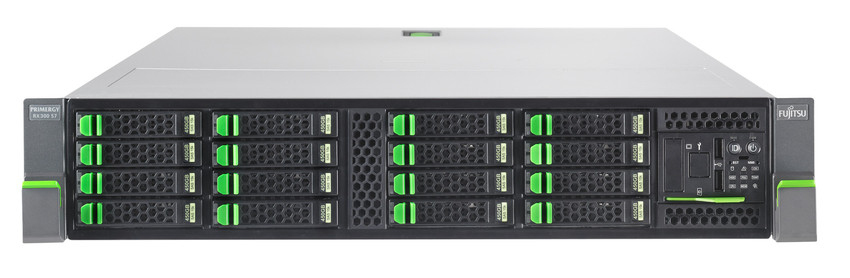

Fujitsu RX300 S7 + Windows Server 2008 R2 SP1 Datacenter 2CPU

Model RX300 S7 + Windows Server 2008 R2 SP1 Datacenter 2CPUPart no. VFY:R3007SC020IN + S26361-F2567-L331

134 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX300 S7 + Windows Server 2008 R2 SP1 Datacenter 2CPU
Part numbers: VFY:R3007SC020IN + S26361-F2567-L331, VFY:R3007SX010IN + S26361-F2567-L331, VFY:R3007SX020IN + S26361-F2567-L331, VFY:R3007SX080DE + S26361-F2567-L331
Also known as: Fujitsu PRIMERGY RX300 S7 + Windows 2008 R2 SP1 Datacenter 2CPU server 0 GB Rack (2U) Intel® Xeon® E5 Family E5-2630 2.3 GHz 8 GB DDR3-SDRAM 450 W

134 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor upgrade	2
Processor model	E5-2630
Processor frequency	2.3 GHz
Processor boost frequency	2.8 GHz
Processor cores	6
Processor cache	15 MB
Motherboard chipset	Intel C600
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	28
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	32 nm
Idle States	Yes
Maximum internal memory supported by processor	750 GB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	42.6 GB/s
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Processor codename	Sandy Bridge EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45.0 mm
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor threads	12
Scalability	2S
Stepping	C2
Supported instruction sets	AVX
Tcase	77.4 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
HDD capacity	0 GB
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD size	2.5"
Number of HDDs supported	16
Number of SSDs installed	0
RAID support	Yes
RAID levels	0, 1, 10
Hot-swap	Yes
Optical drive type	DVD-RW

Specification	Value
Network ready	Yes
Wi-Fi	No
Wi-Fi standards	Not supported
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	0
Firewire (IEEE 1394) ports	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
Parallel ports quantity	0
RS-232 ports	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	2

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Trusted Platform Module (TPM)	Yes

Specification	Value
Compatible operating systems	Hyper-V Server 2008 R2, Windows Server 2008 R2, HPC Server 2008 R2 Suite, Windows Small Business Server 2011, Windows Server 2008, Windows Web Server 2008, VMware vSphere 5.0, VMware vSphere 4.1, Novell SUSE Linux Enterprise Server 11, Novell SUSE Linux Enterprise Server 10, Red Hat Enterprise Linux

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64593

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply type	AC/DC
Number of power supply units	1
Power requirements	100 - 240 V
Power supply	450 W
Power supply input frequency	47 - 63 Hz

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 85%

Specification	Value
Energy efficiency class	A
Certification	GS, CE A, CSAc/us, FCC A, CB, RoHS, WEEE, VCCI, CCC, C

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Number of DIMM slots	24
Number of processors supported	2
