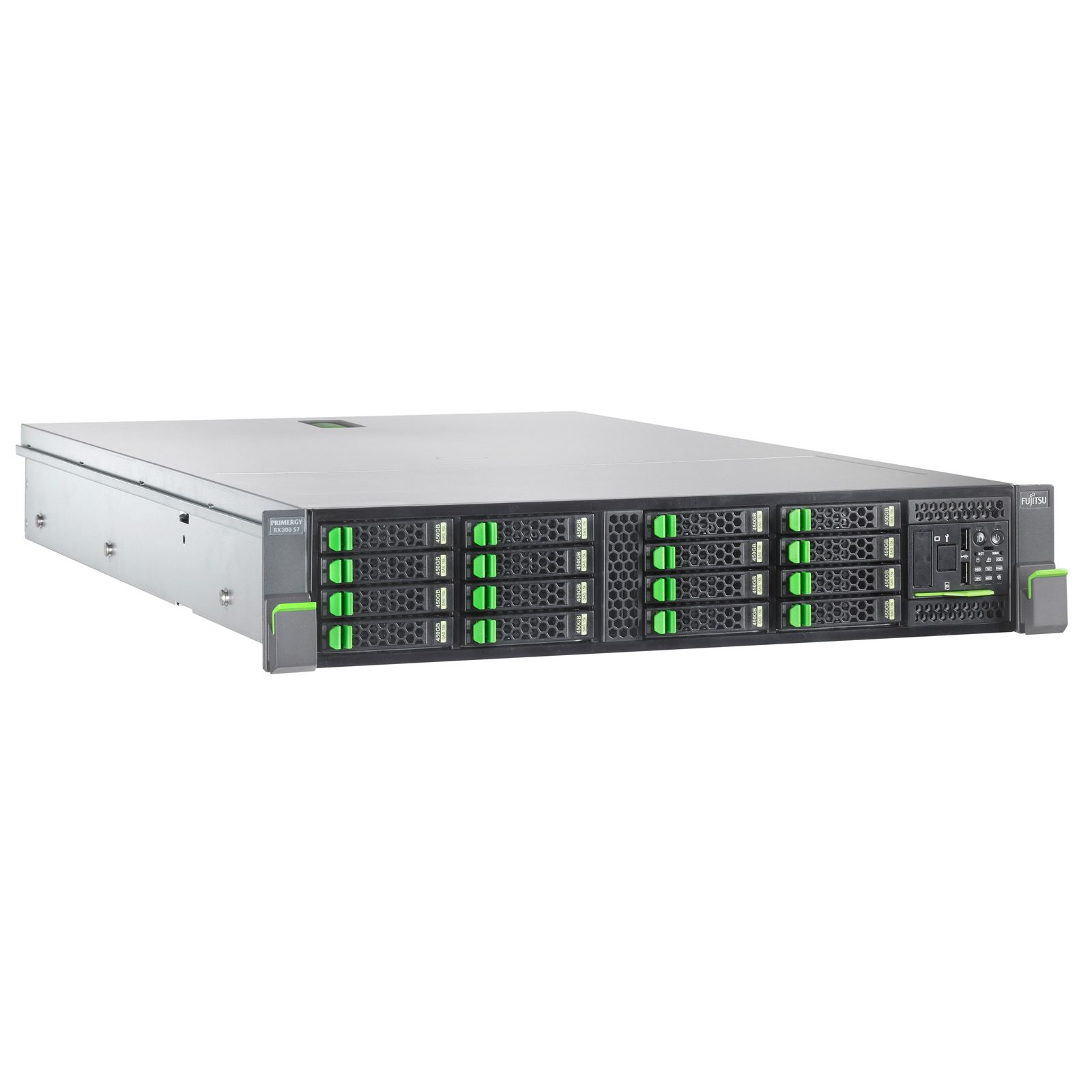

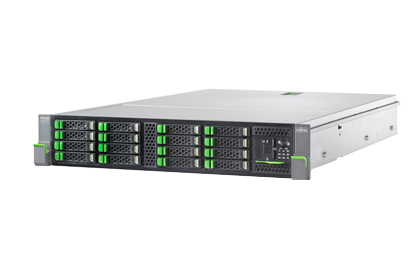

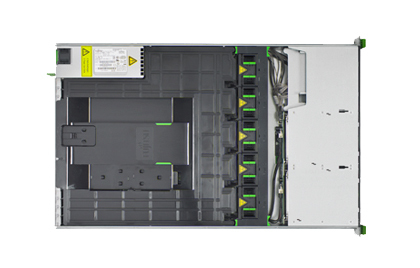

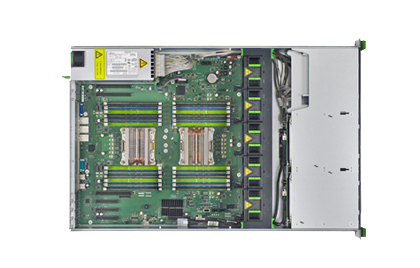

Fujitsu RX300 S7 + Intel Xeon E5-2650
Model RX300 S7 + Intel Xeon E5-2650Part no. VFY:R3007SC030IN + S26361-F3686-L200
121 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- Storage0 GB
- Noise68 dB
- OSNo
- Weight25 kg
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- Storage
- 0 GB
- Noise
- 68 dB
- OS
- No
- Weight
- 25 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- RX300 S7 + Intel Xeon E5-2650
- Part number
- VFY:R3007SC030IN + S26361-F3686-L200
- Also known as
- Fujitsu PRIMERGY RX300 S7 + Intel Xeon E5-2650 server 0 GB Rack (2U) Intel® Xeon® E5 Family 2 GHz 8 GB DDR3-SDRAM 800 W
Specifications
121 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |

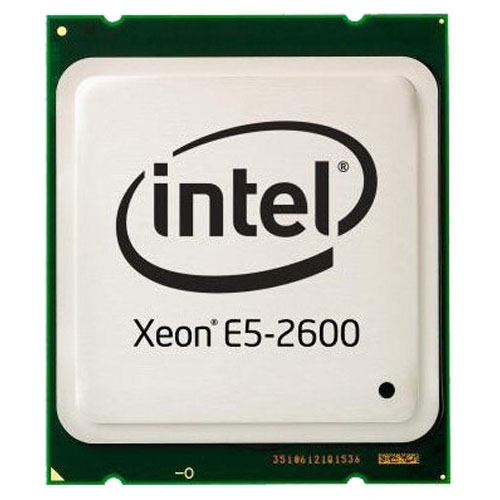

| Processor model | E5-2650 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.8 GHz |
| Processor cores | 8 |
| Processor cache | 20 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 28 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 750 GB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Processor codename | Sandy Bridge EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45.0 mm |
| Processor series | Intel Xeon E5-2600 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 16 |
| Scalability | 2S |
| Stepping | C2 |
| Supported instruction sets | AVX |
| Tcase | 77.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Maximum internal memory | 786432 MB |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 24 |
| Maximum internal memory | 768 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 8 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| RAID levels | 5, 6 |
| Hot-swap | Yes |
| Optical drive type | DVD Super Multi |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 5 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 68 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Hyper-V Server 2012 Windows Server 2012 Datacenter Windows Server 2012 Standard Windows Small Business Server 2011 Premium Add-On Windows Small Business Server Standard 2011 Windows Server 2008 Datacenter Windows Server 2008 Enterprise Windows Server 2008 Standard Windows Web Server 2008 Windows Ser |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64590 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of main power supplies | 1 |
| Power supply input frequency | 47/63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, GS, CE, CB, CSAc/us, RoHS, WEEE, VCCI, CCC, C-Tick |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 770 mm |
| Height | 86.9 mm |
| Weight | 25 kg |
