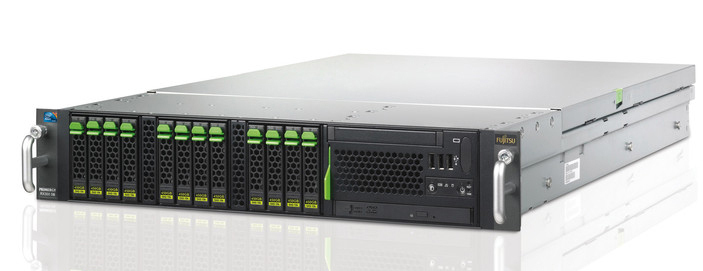

Fujitsu RX300 S6 + 3.5'' SAS 300GB 15K
Model RX300 S6 + 3.5'' SAS 300GB 15KPart no. VFY:R3006SX440DE S26361-F4005-L530
119 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory24 GB
- Storage0 GB
- Noise45 dB
- OSNo
- Weight25 kg
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 24 GB
- Storage
- 0 GB
- Noise
- 45 dB
- OS
- No
- Weight
- 25 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- RX300 S6 + 3.5'' SAS 300GB 15K
- Part numbers
- VFY:R3006SX440DE S26361-F4005-L530, VFY:R3006SF030DE S26361-F4005-L530
- Also known as
- Fujitsu PRIMERGY RX300 S6 + 3.5'' SAS 300GB 15K server 0 GB Rack (2U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 24 GB DDR3-SDRAM 800 W
Specifications
119 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5620 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5520 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5.86 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 18 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3 800/1066 |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Processor code | SLBV4 |
| Processor codename | Westmere EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 X 45 mm |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 77.6 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 24 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 3 x 8 GB |
| Memory slots | 18x DIMM |
| Maximum internal memory | 384 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 12 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| RAID levels | 5, 6 |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Ethernet LAN | Yes |
| LAN controller | Intel® 82575EB |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 10 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 5 |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Performance
| Specification | Value |
|---|---|
| Noise level | 45 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Hyper-V Server 2008 R2 Windows Server 2008 R2 Datacenter Windows Server 2008 R2 Enterprise Windows Server 2008 R2 Standard Windows Web Server 2008 R2 Windows HPC Server 2008 R2 Windows SBS 2011 Premium Add-On Windows SBS Standard 2011 Windows Server 2008 Enterprise Windows Server 2008 Standard Windo |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 47925 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power requirements | 100 - 240V |
| Power supply | 800 W |
| Power supply input frequency | 47/63 Hz |
| Power consumption (typical) | 504 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | GS, CE, CSAc/us, FCC, CB, RoHS, WEEE, VCCI, CCC, C-Tick |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 770 mm |
| Height | 85.9 mm |
| Weight | 25 kg |
Other features
| Specification | Value |
|---|---|
| Disk array controller | SAS 6G 512MB |
| Dimensions (WxDxH) | 482.6 x 770 x 85.9 mm |
| Mac compatibility | No |
| Ventilation fan(s) | 5 |
| Storage drive controller | ICH10B |
