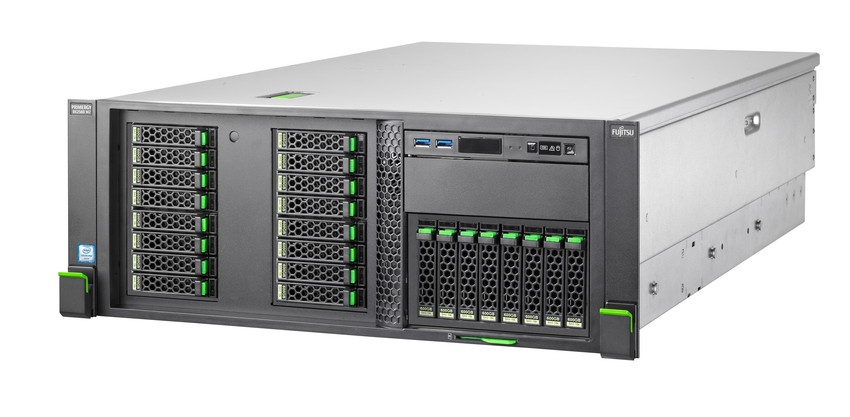

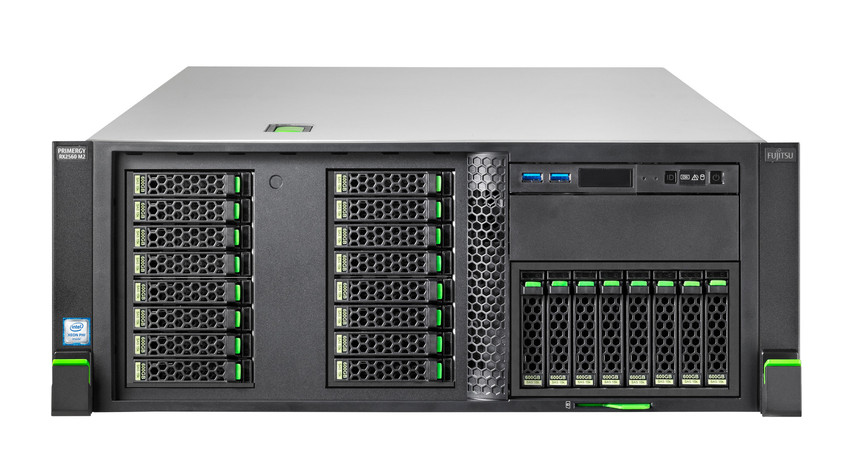

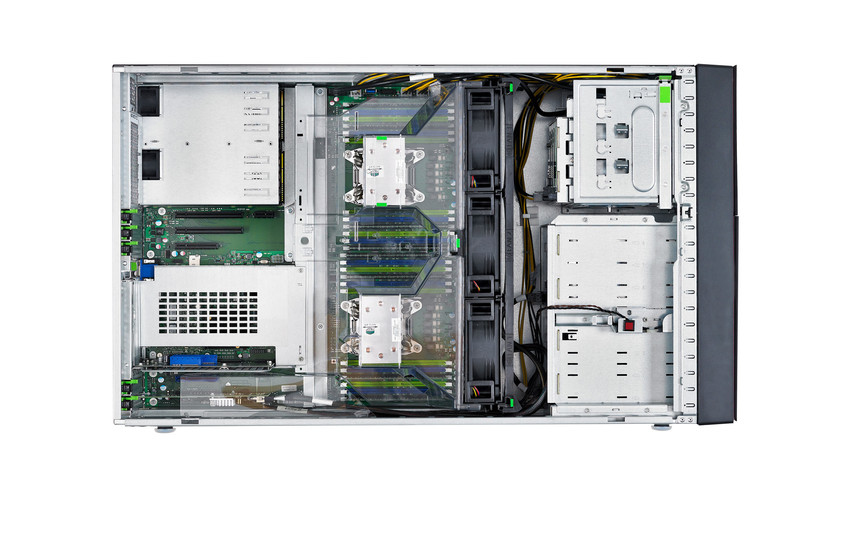

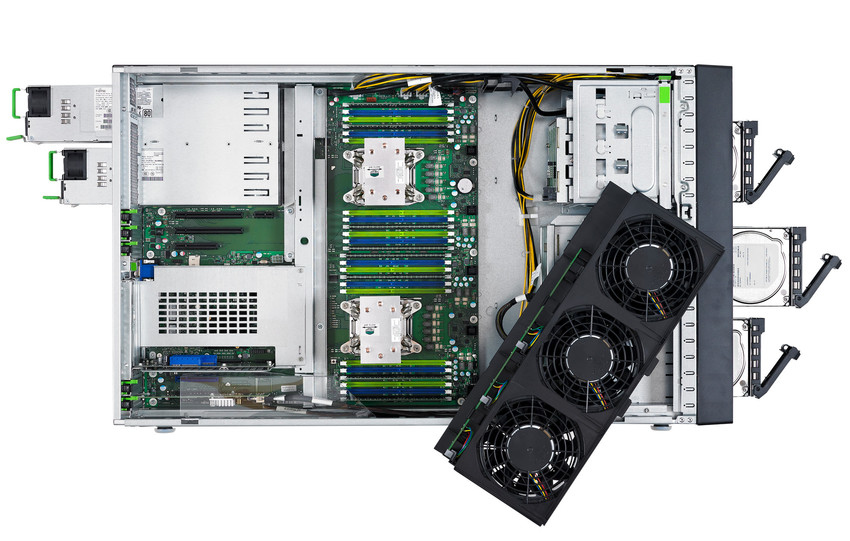

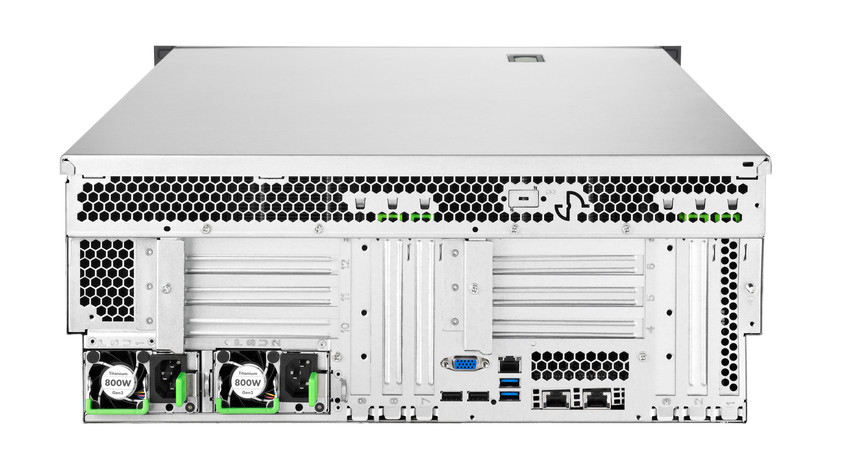

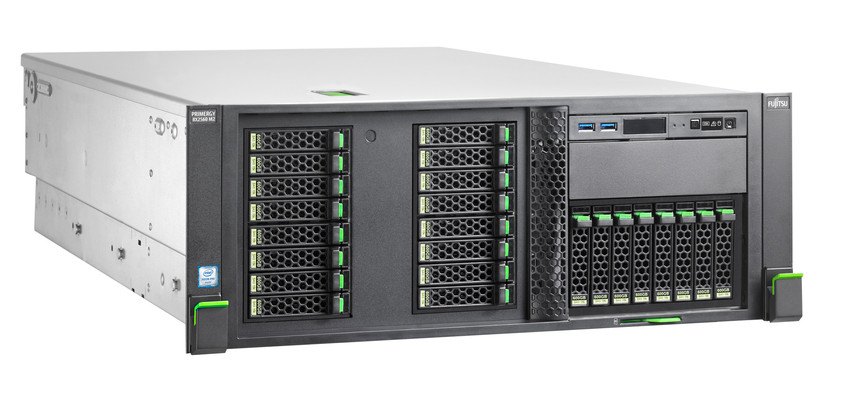

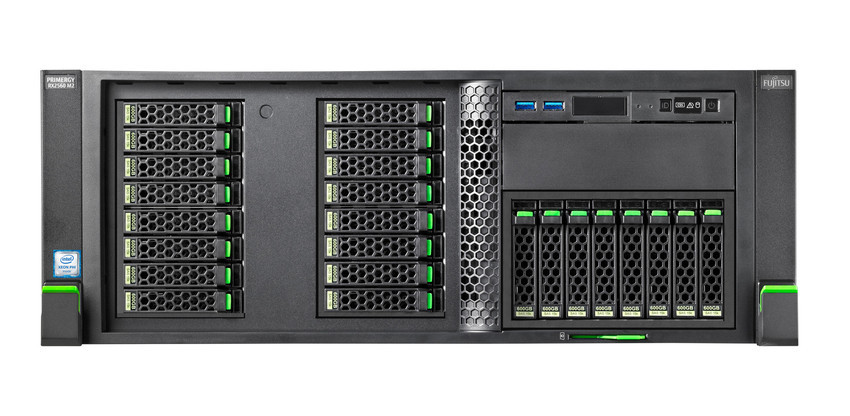

Fujitsu RX2560 M2

Model RX2560 M2Part no. VFY:R2562SC010IN S26361-F2567-D423EAN 4058154097038

100 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX2560 M2
Part numbers: VFY:R2562SC010IN S26361-F2567-D423, VFY:R2562SC010IN S26361-F2567-D413, VFY:R2562SC010IN S26361-F2567-D432, VFY:R2562SC010IN S26361-F2567-D423-L465, VFY:R2562SC010IN S26361-F2567-D413-L463, VFY:R2562SC010IN S26361-F3933-L520 +4 more
EAN / UPC: 4058154097038, 4057185625623
Also known as: Fujitsu PRIMERGY RX2560 M2 server 0 GB Rack (4U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 8 GB DDR4-SDRAM

100 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2620V4
Processor frequency	2.1 GHz
Processor boost frequency	3 GHz
Processor cores	8
Processor cache	20 MB
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	1.53 TB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	68.3 GB/s
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR2R6
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	45 x 52.5 mm
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Processor threads	16
Scalability	2S
Stepping	R0
Supported instruction sets	AVX 2.0
Tcase	74 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Rack (4U)
Rack mounting	Yes

Specification	Value
BIOS type	UEFI
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Specification	Value
Operating system installed	No
Compatible operating systems	- Microsoft Hyper-V Server 2012 R2 - Microsoft Windows Server 2012 R2 Datacenter - Microsoft Windows Server 2012 R2 Standard - Microsoft Windows Storage Server 2012 R2 Standard - Microsoft Hyper-V Server 2012 - Microsoft Windows Server 2012 Datacenter - Microsoft Windows Server 2012 Standard - Micro

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	92986

Specification	Value
Redundant power supply (RPS) support	O

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Certification	CB, WEEE, RoHs, GS, CE, CSAc/us, FCC Class A, VCCI:V3 Class A + JIS 61000-3-2, CCC, C-Tick
