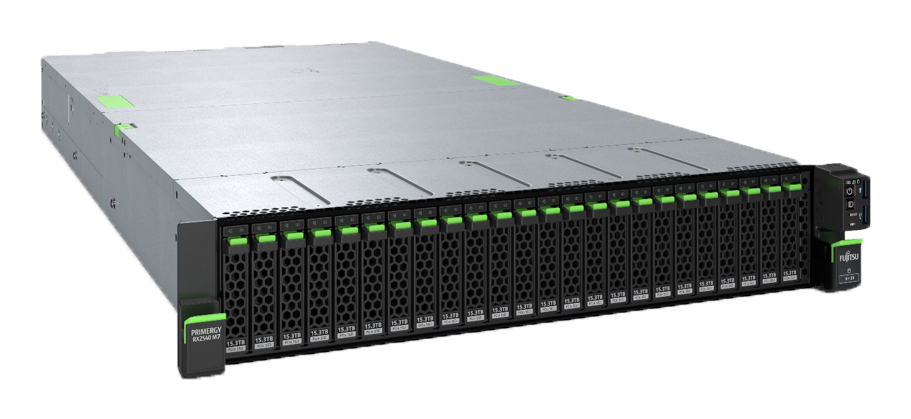

RX2540 M7
Model RX2540 M7Part no. VFY:R2547SC050PLEAN 4065221939856
43 specifications
- ProcessorIntel® Xeon® Gold
- Memory32 GB
- Storage0 GB
- OSNo
- Weight32 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 32 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 32 kg
- Colour
- Black
- Brand
- Fujitsu
- Category
- Server
- Model
- RX2540 M7
- Part numbers
- VFY:R2547SC050PL, VFY:R2547SC040IN, VFY:R2547SC050IN, VFY:R2547SC007IN, VFY:R2547SC020IN, VFY:R2547SC030IN +34 more
- EAN / UPC
- 4065221939856, 4065221931393, 4065221931409, 4065221929284 +49 more
- Also known as
- Fujitsu PRIMERGY RX2540 M7 server 0 GB Rack (2U) Intel® Xeon® Gold 5415+ 2.9 GHz 32 GB DDR5-SDRAM 900 W
Specifications
43 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | Intel Xeon Scalable 4th Gen |
| Processor model | 5415+ |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 8 |
| Processor cache | 22.5 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 8 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs supported | 16 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2022 Datacenter Windows Server 2022 Standard Windows Server 2019 Datacenter Windows Server 2019 Standard Windows Server 2019 Essentials SUSE® Linux Enterprise Server 15 Red Hat® Enterprise Linux 8 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 900 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.2 mm |
| Depth | 800 mm |
| Height | 86.9 mm |
| Weight | 32 kg |
