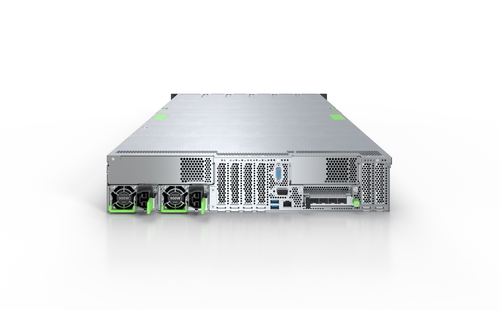

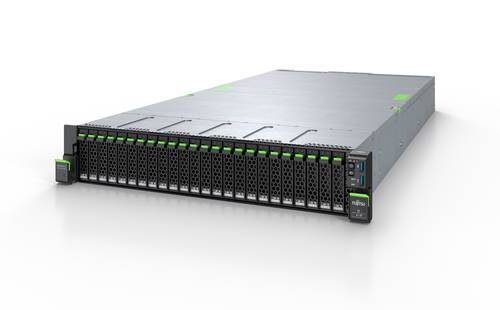

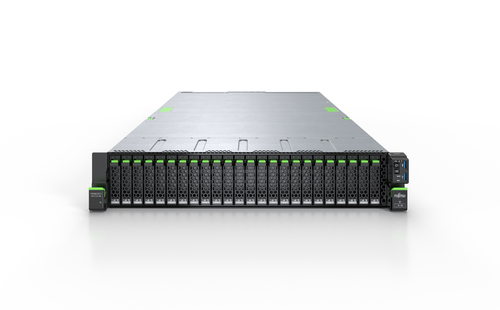

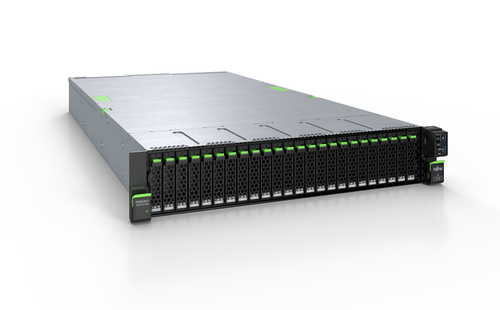

RX2540 M6
Model RX2540 M6Part no. VFY:R2546SC012INEAN 4065221736813
29 specifications
- ProcessorIntel® Xeon® Gold
- Memory32 GB
- OSNo
- Weight32 kg
- Processor manufacturerIntel
- Number of HDDs supported16
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 32 GB
- OS
- No
- Weight
- 32 kg
- Processor manufacturer
- Intel
- Number of HDDs supported
- 16
- Brand
- Fujitsu
- Category
- Server
- Model
- RX2540 M6
- Part numbers
- VFY:R2546SC012IN, VFY:R2546SC031IN, VFY:R2546SC131IN, VFY:R2546SC112IN, VFY:R2546SC141IN, VFY:R2546SC161IN +34 more
- EAN / UPC
- 4065221736813, 4065221736868, 4065221736851, 4065221769668 +31 more
- Also known as
- Fujitsu PRIMERGY RX2540 M6 server Rack (2U) Intel® Xeon® Gold 6326 2.9 GHz 32 GB DDR4-SDRAM 900 W
Specifications
29 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 6326 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cache | 24 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory slots | 32x DIMM |
| Maximum internal memory | 12 TB |
Storage
| Specification | Value |
|---|---|
| Number of HDDs supported | 16 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| Hot-Plug support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2019 Datacenter Windows Server 2019 Standard Windows Server 2019 Essentials Hyper-V Server 2016 Windows Server 2016 Datacenter Windows Server 2016 Standard Windows Server 2016 Essentials Windows Storage Server 2016 Standard Red Hat® Enterprise Linux 8 Red Hat® Enterprise Linux 7 Oracl |
Power
| Specification | Value |
|---|---|
| Power supply | 900 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.5 mm |
| Depth | 800 mm |
| Height | 86.9 mm |
| Weight | 32 kg |
