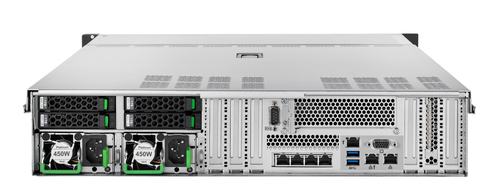

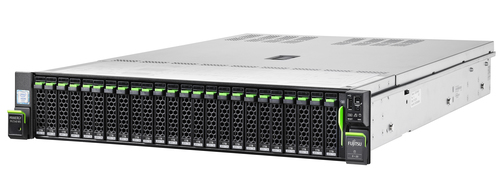

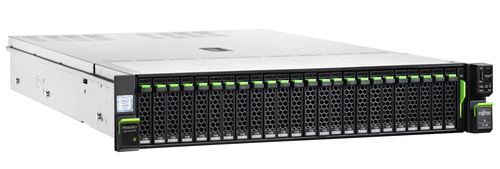

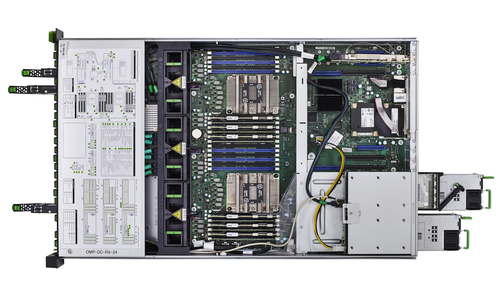

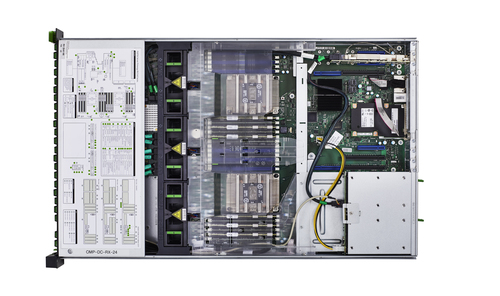

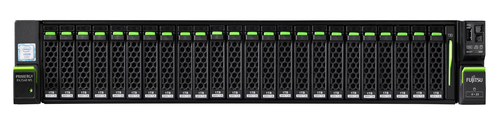

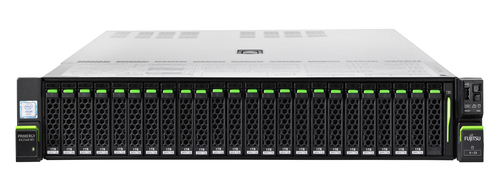

RX2540 M5
Model RX2540 M5Part no. VFY:R2545SC270INEAN 4059595838259
78 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- Storage0 GB
- OSNo
- Weight25 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 25 kg
- Colour
- Black
- Brand
- Fujitsu
- Category
- Server
- Model
- RX2540 M5
- Part numbers
- VFY:R2545SC270IN, VFY:R2545SX250NL, VFY:R2545SC290IN, VFY:R2545SC280IN, LKN:R2545SC430IN, LKN:R2545SC420IN +34 more
- EAN / UPC
- 4059595838259, 4063872314190, 4059595838235, 4059595838303 +28 more
- Also known as
- Fujitsu PRIMERGY RX2540 M5 server 0 GB Rack (2U) Intel Xeon Silver 4214 2.2 GHz 16 GB DDR4-SDRAM 450 W
Specifications
78 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4214 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 12 |
| Processor cache | 16.5 MB |
| Motherboard chipset | Intel® C624 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 24 |
| Scalability | 2S |
| Supported instruction sets | AVX-512 |
| Tcase | 77 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 24 |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 12 TB |
| Total storage capacity | 0 GB |
| Supported HDD sizes | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 5, 6 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Rack mounting | Yes |
| Rack rails | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Microsoft Hyper-V Server R2 2012 - Microsoft Windows Server 2012 R2 Datacenter - Microsoft Windows Server 2012 R2 Standard - Microsoft Windows Server 2012 R2 Essentials - Microsoft Windows Server 2012 R2 Foundation - Microsoft Windows Storage Server 2012 R2 Standard - Microsoft Hyper-V Server 2012 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 193385 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
| Number of redundant power supplies supported | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, RoHS, WEEE, GS, CE Class A, CSAc/us, ULc/us, ICES-003 Class A, FCC Class A, VCCI Class A + JIS 61000-3-2, CCC, CNS 13438 class A |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.4 mm |
| Depth | 770 mm |
| Height | 86.6 mm |
| Weight | 25 kg |
