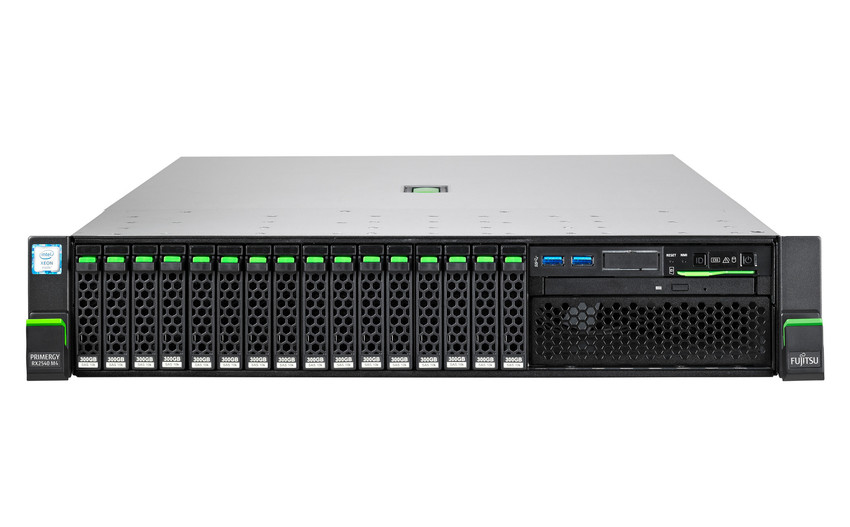

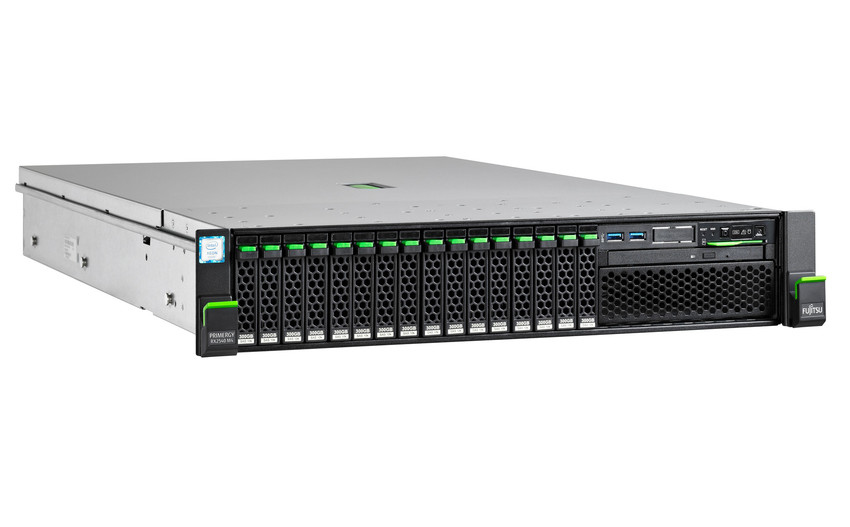

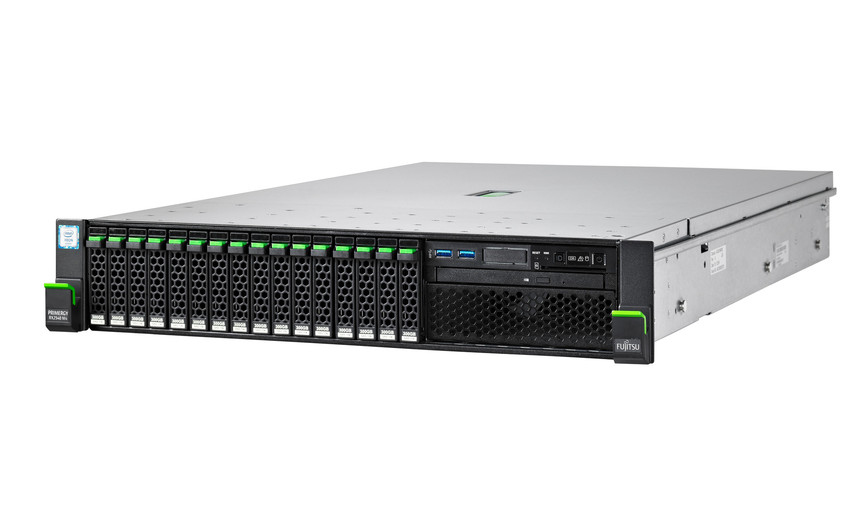

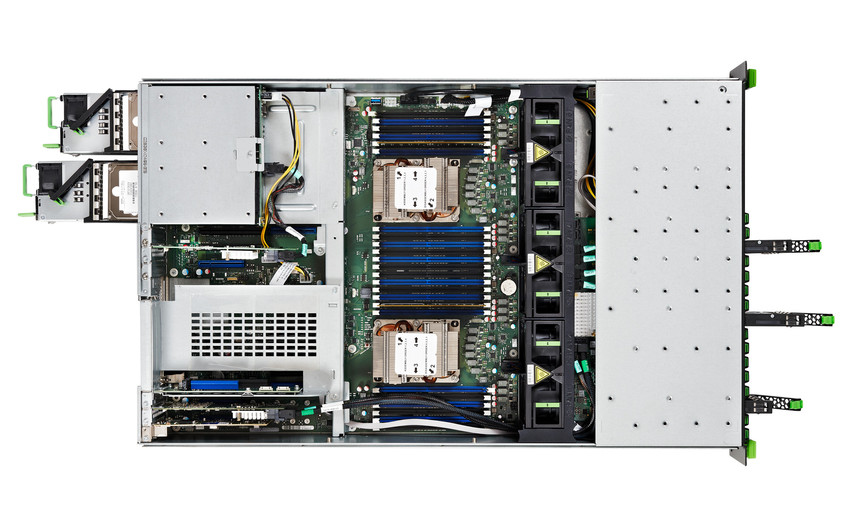

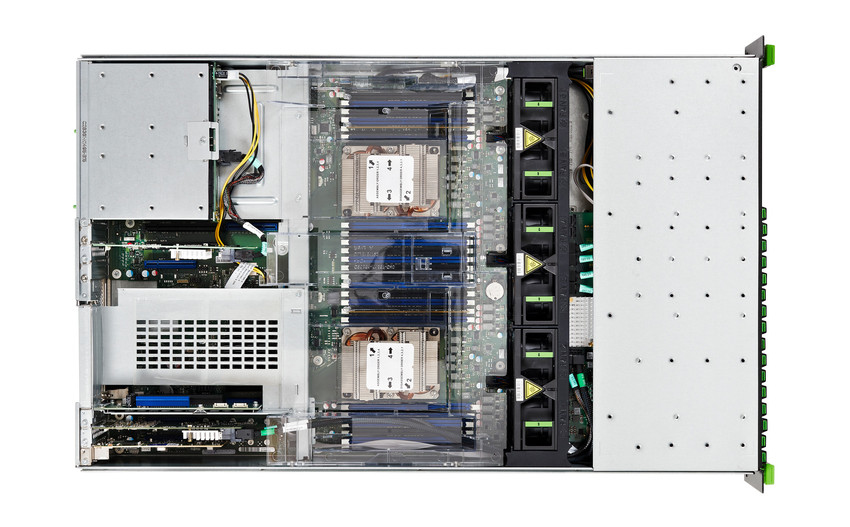

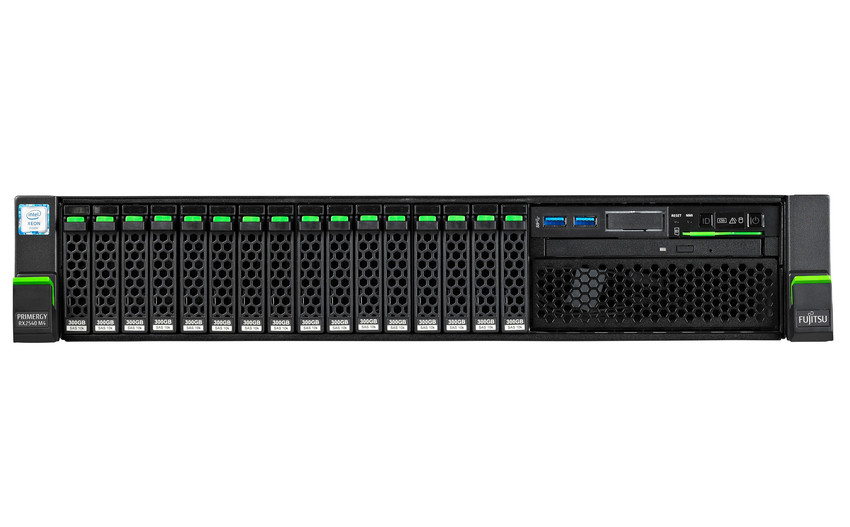

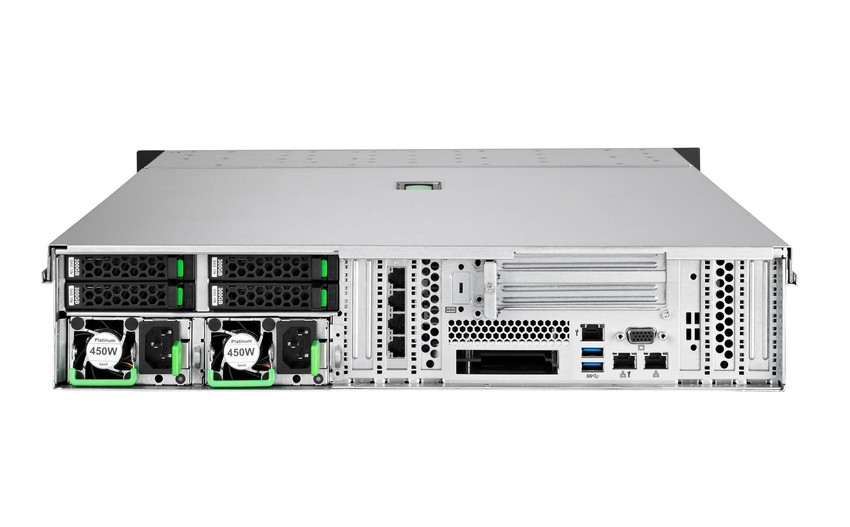

Fujitsu RX2540 M4

Model RX2540 M4Part no. VFY:R2544SX140DE S26361-F4026-L216EAN 4059595447192

76 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX2540 M4
Part numbers: VFY:R2544SX140DE S26361-F4026-L216, VFY:R2544SX150DE S26361-F4026-L216, VFY:R2544SX160DE S26361-F4026-L216, VFY:R2544SX170DE, VFY:R2544SC080IN, LKN:R2544SX240DE +22 more
EAN / UPC: 4059595447192, 4059595442173, 4059595446362, 4059595497555 +12 more
Also known as: Fujitsu PRIMERGY RX2540 M4 server 0 GB Rack (2U) Intel® Xeon® 4110 2.1 GHz 16 GB DDR4-SDRAM

76 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	4110
Processor frequency	2.1 GHz
Processor boost frequency	3 GHz
Processor cores	8
Processor cache	11 MB
Memory channels supported by processor	Hepta
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	L3
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2400 MHz
Memory types supported by processor	LPDDR4-SDRAM
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	16
Scalability	2S
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Tcase	77 °C
Conflict-Free processor	Yes

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
Number of HDDs supported	16
Supported HDD sizes	2.5"
Hot-Plug support	Yes
Optical drive type	DVD Super Multi
Supported storage drive interfaces	PCI Express, SAS, Serial ATA

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	6
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Rack (2U)
Rack mounting	Yes

Specification	Value
BIOS type	UEFI

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	123547

Specification	Value
Redundant power supply (RPS) support	No

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Certification	CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, ICES-003 / NMB-003 Class A, VCCI:V3 Class A + JIS 61000-3-2, EAC, KC, CCC, RCM, BIS R41004006

Specification	Value
Number of 2.5" bays	16
